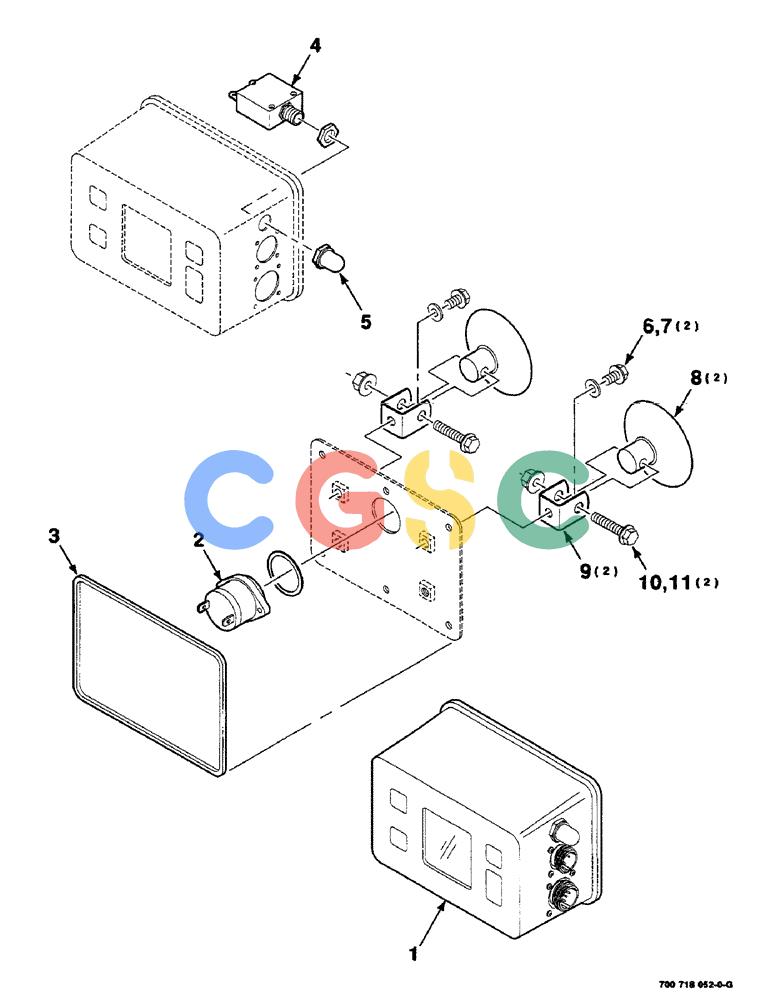

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (4-26) - ELECTRICAL CONTROL BOX ASSEMBLY, WITH MESH WRAP, 700718052 ELECTRICAL CONTROL BOX ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700718052
|
[1] |
CONTROL
|
CAS
BOX ASSEMBLY COMPLETE (With mesh wrap)
|
| 2. |
700719004
|
[1] |
ALARM
|
CAS
BEEPER
|
| 3. |
700719007
|
[1] |
GASKET
|
CAS
|
| 4. |
700719006
|
[1] |
BREAKER
|
CAS
CIRCUIT BREAKER
|
| 5. |
700716260
|
[1] |
COVER
|
CAS
- fuse
|
| 6. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 7. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 8. |
700714802
|
[2] |
CUP
|
CAS
- suction
|
| 9. |
700132408
|
[2] |
MOUNTING PARTS
|
CAS
MOUNTING
|
| 10. |
7883358
|
[2] |
SCREW,Hex Washer, 5/16" - 18 x 1 1/2"
|
CAS
5/16-18 X 1-1/2 HWHMS Superseded by part number: 163-56
|
| 11. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
