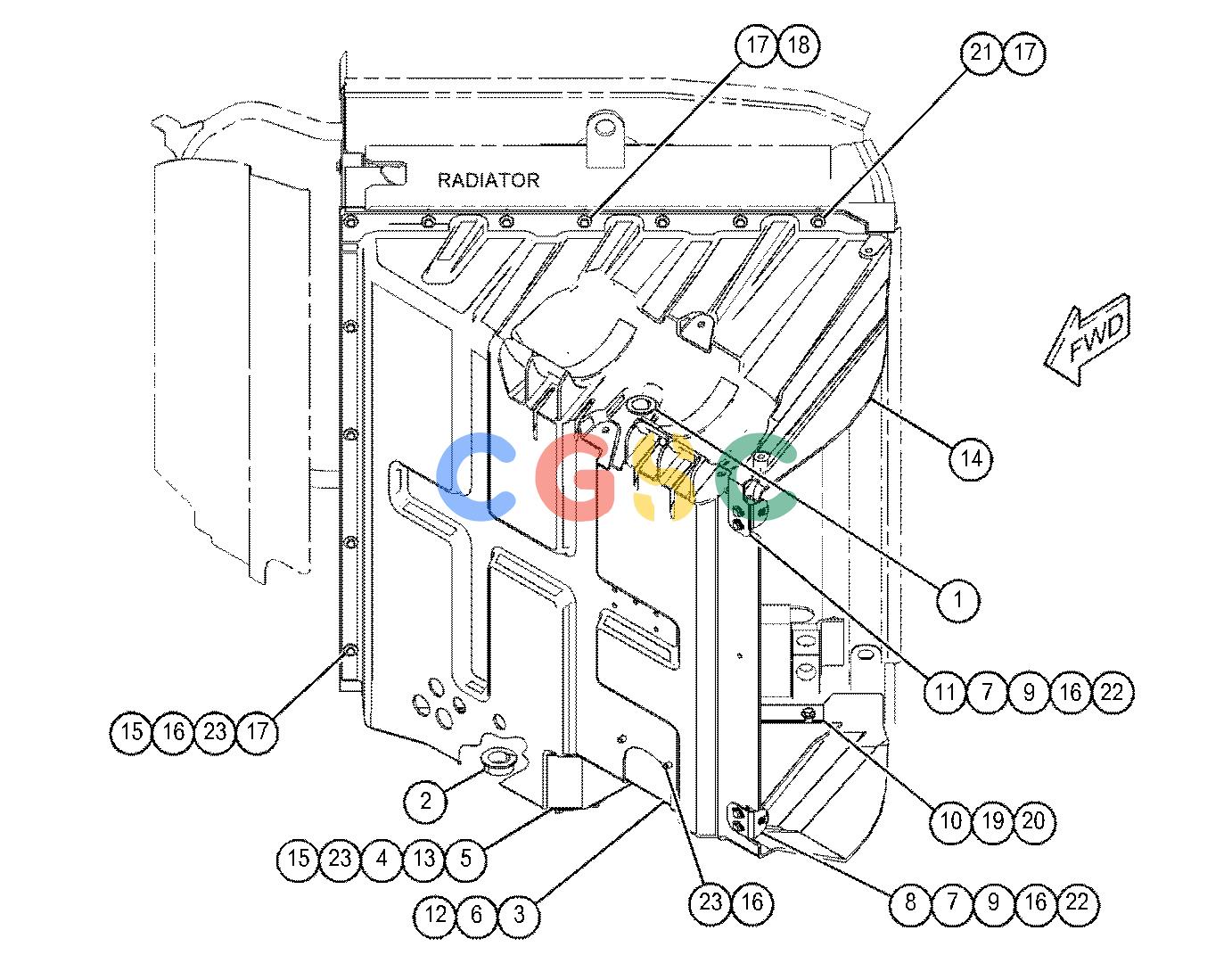

卡特零件查询（725C2） 483-2274: SHROUD GP-RADIATOR
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-6279 | [1] | BUSHING-RUBBER | |
| 2. | 176-6404 | [1] | BUSHING-RUBBER | |
| 3. | 209-6148 | [1] | COVER | |
| 4. | 209-7534 | [2] | PLATE | |
| 5. | 209-7535 | [2] | PLATE | |
| 6. | 212-7961 | [1] | PLATE | |
| 7. | 352-9305 | [2] | NUT-SPRING | |
| 8. | 353-3434 | [1] | BRACKET | |
| 9. | 358-0725 | [2] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 10. | 382-1411 | [1] | PLATE | |
| 11. | 397-1579 | [1] | BRACKET | |
| 12. | 418-7666 | [1] | PLATE-RETAINING | |
| 13. | 455-5426 | [1] | COVER-RUBBER | |
| 14. | 483-2273 | [1] | DUCT AS | |
| 15. | 5C-7261M | [8] | NUT(M8X1.25-THD) | |
| 16. | 5P-4116 | [11] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 17. | 7X-0579 | [11] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 18. | 7X-2537M | [6] | BOLT(M8X1.25X35-MM) | |
| 19. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 20. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 21. | 8T-4197M | [1] | BOLT(M8X1.25X40-MM) | |
| 22. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 23. | 8T-7547M | [11] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
