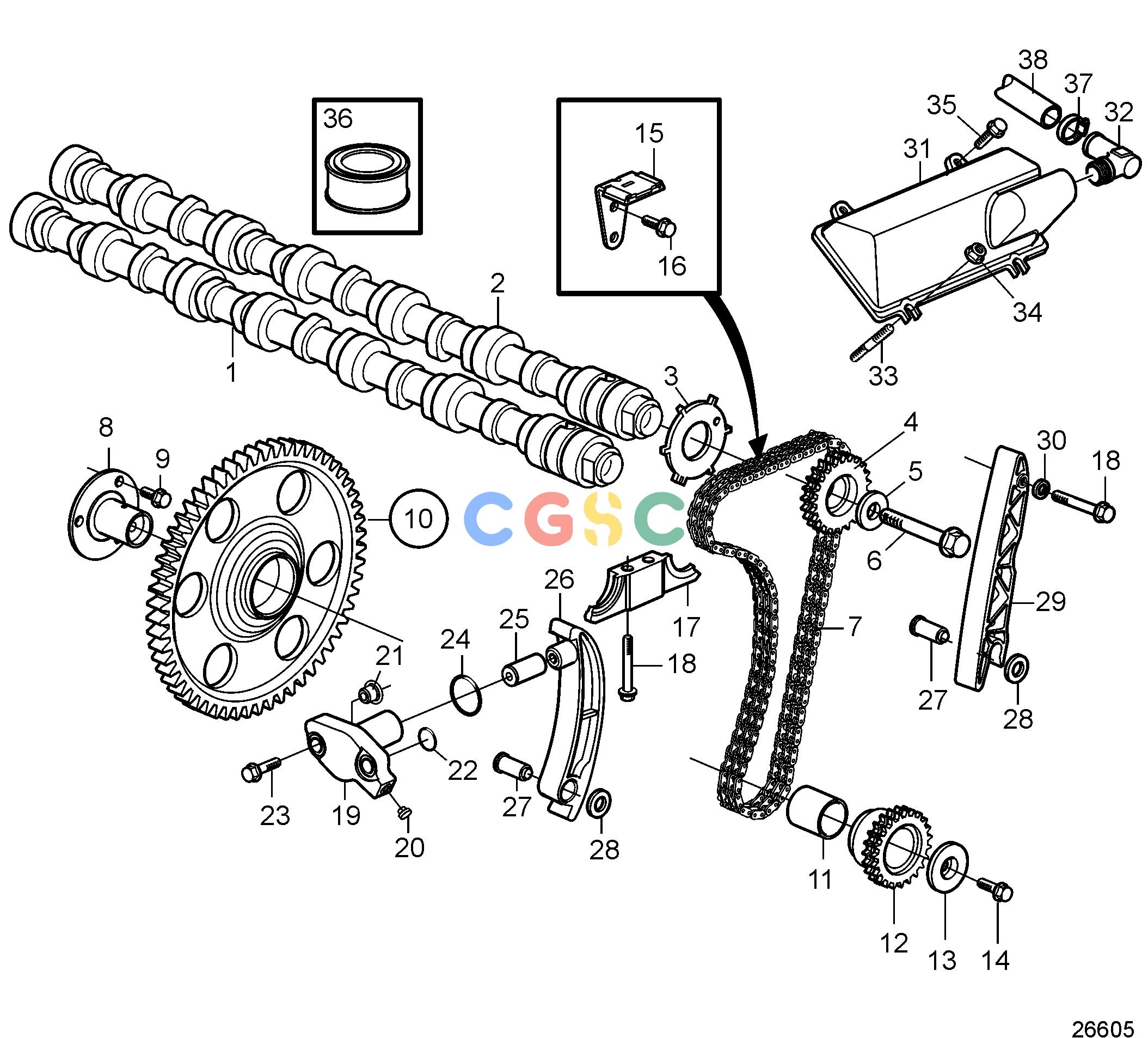

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-EngineCamshaft and Camshaft ChainEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
384 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587754
|
[1] |
Camshaft, intake
|
|
| 2. |
3587755
|
[1] |
Camshaft, exhaust
|
Replaced by 21600907
|
| 2. |
21600907
|
[1] |
Camshaft, exhaust
|
Replaced by 22580210
|
| 2. |
22580210
|
[1] |
Camshaft, exhaust
|
|
| 3. |
3582856
|
[1] |
Gear
|
Replaced by 22646695
|
| 3. |
22646695
|
[1] |
Gear
|
|
| 4. |
3582646
|
[2] |
Sprocket
|
|
| 5. |
3583032
|
[2] |
Washer
|
Replaced by 22645509
|
| 5. |
22645509
|
[2] |
Washer
|
|
| 6. |
984307
|
[2] |
Flange screw
|
|
| 7. |
3582642
|
[1] |
Drive chain
|
|
| 8. |
3582651
|
[1] |
Hub
|
|
| 9. |
946173
|
[3] |
Flange screw
|
|
| 10. |
3582647
|
[1] |
Idler gear
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
3582652
|
[1] |
Washer
|
|
| 14. |
945444
|
[1] |
Flange screw
|
|
| 15. |
3583576
|
[1] |
Guide
|
|
| 16. |
946173
|
[2] |
Flange screw
|
|
| 17. |
3587634
|
[1] |
Bracket
|
|
| 18. |
973924
|
[3] |
Flange screw
|
|
| 18. |
947760
|
[1] |
Flange screw
|
D6-435
|
| 19. |
3583144
|
[1] |
Retainer
|
|
| 20. |
990828
|
[1] |
Plug
|
|
| 21. |
21113522
|
[1] |
Gasket
|
|
| 22. |
976039
|
[1] |
O-ring
|
|
| 23. |
946671
|
[2] |
Flange screw
|
|
| 24. |
975309
|
[1] |
O-ring
|
|
| 25. |
3582643
|
[1] |
Tensioner
|
|
| 26. |
3582644
|
[1] |
Guide
|
|
| 27. |
3583208
|
[2] |
Shoulder screw
|
|
| 28. |
3587354
|
[2] |
Washer
|
(949818)
|
| 29. |
3583874
|
[1] |
Guide
|
|
| 30. |
964106
|
[1] |
Gasket
|
|
| 31. |
3583686
|
[1] |
Cover
|
|
| 32. |
3583959
|
[1] |
Elbow nipple
|
|
| 33. |
953041
|
[2] |
Stud
|
|
| 34. |
945408
|
[2] |
Flange nut
|
|
| 35. |
946173
|
[2] |
Flange screw
|
|
| 36. |
3588346
|
[1] |
Lubricant
|
500G
|
| 37. |
994559
|
[1] |
Hose clamp
|
|
| 38. |
190993
|
[1] |
Hose
|
L=265mm
|
