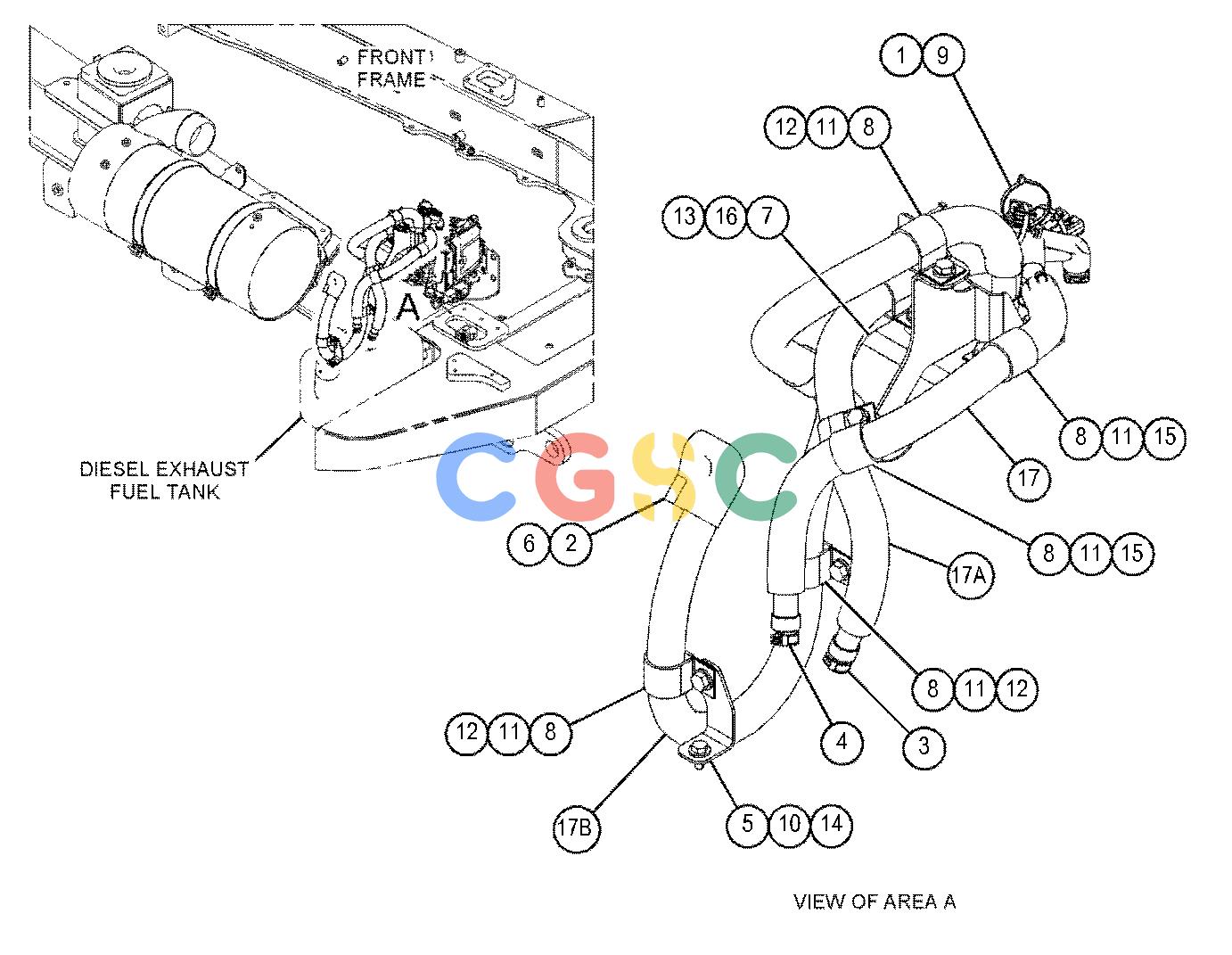

卡特零件查询（725C2） 515-0353: LINES GP-DIESEL EXHAUST FLUID
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 2. | 389-9441 | [1] | INSULATION(ELBOW) | |
| 3. | 398-9452 | [1] | HOSE AS | |
| 4. | 398-9453 | [1] | HOSE AS | |
| 5. | 416-5075 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 6. | 425-7363 | [1] | HOSE AS | |
| 7. | 515-0442 | [1] | BRACKET AS | |
| 8. | 4D-7388 | [8] | CLIP(LOOP) | |
| 9. | 3S-2093 | [4] | STRAP-CABLE | |
| 10. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 11. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 13. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 14. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 15. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 16. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 17. | 389-9423E | | INSULATION(56-CM) | |
| 17A. | 389-9423E | | INSULATION(59-CM) | |
| 17B. | 389-9423E | | INSULATION(144-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
