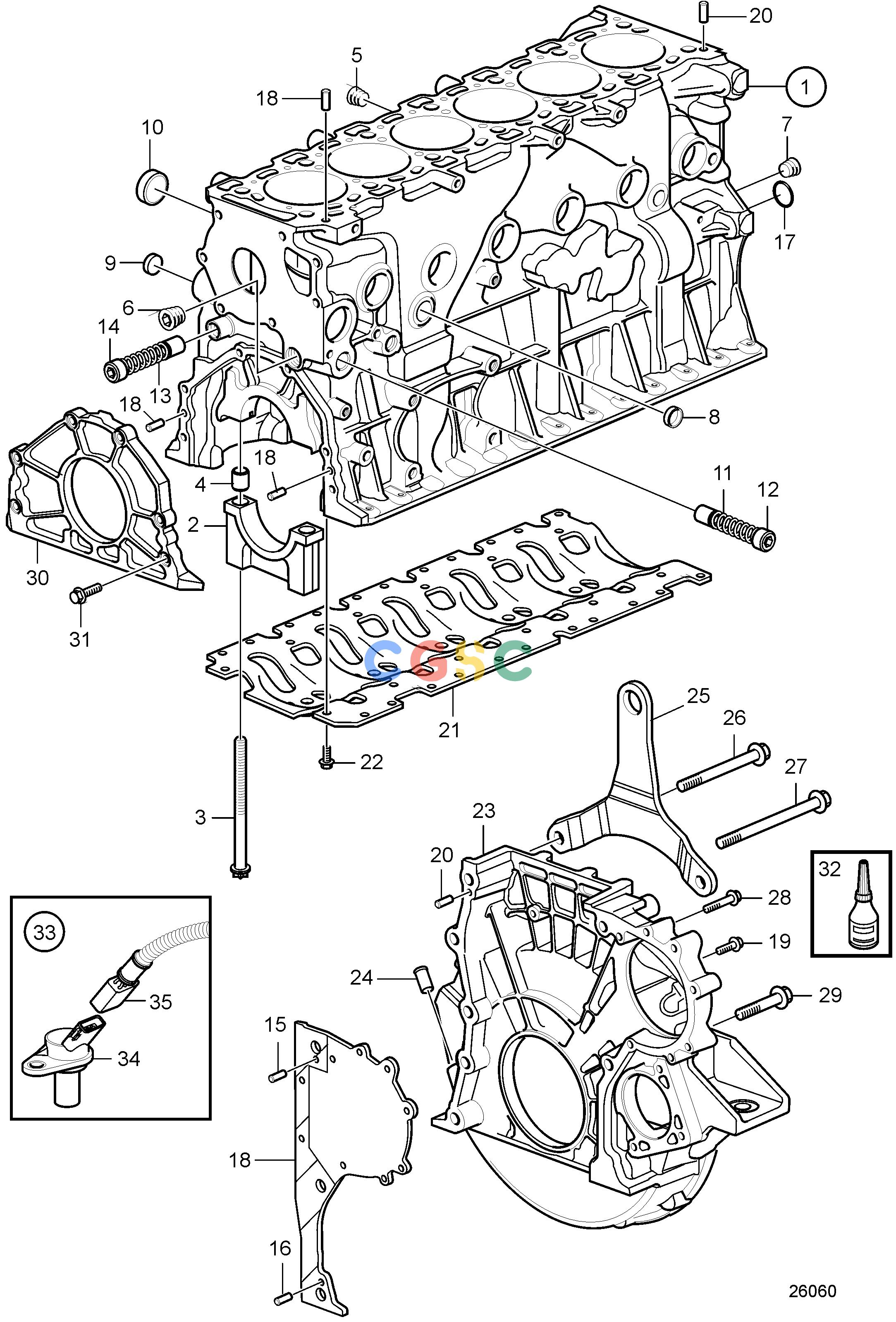

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-EngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3848922
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
3581876
|
[14] |
Six point screw
|
|
| 4. |
3584214
|
[14] |
Guide sleeve
|
|
| 5. |
968061
|
[1] |
Plug
|
|
| 6. |
968063
|
[2] |
Plug
|
|
| 7. |
979947
|
[2] |
Plug
|
|
| 8. |
3583447
|
[2] |
Expansion plug
|
|
| 9. |
24426721
|
[6] |
Expansion plug
|
(8131706)
|
| 10. |
8131707
|
[13] |
Cap plug
|
|
| 11. |
3583079
|
[1] |
Piston cooling valve
|
SN-2006031999
|
| 12. |
982121
|
[1] |
Plug
|
SN-2006031999
|
| 13. |
3583079
|
[1] |
Piston cooling valve
|
D6-435, SN-2006033257
|
| 14. |
982121
|
[1] |
Plug
|
D6-435, SN-2006033257
|
| 15. |
950562
|
[1] |
Pin
|
|
| 16. |
950566
|
[1] |
Pin
|
|
| 17. |
3843507
|
[1] |
O-ring
|
|
| 18. |
3582847
|
[1] |
Plate
|
|
| 19. |
946173
|
[2] |
Flange screw
|
|
| 20. |
950564
|
[5] |
Pin
|
|
| 21. |
3593991
|
[1] |
Frame reinforcement
|
|
| 22. |
985374
|
[34] |
Flange screw
|
|
| 23. |
3847475
|
[1] |
Flywheel housing
|
SN-2006022154, Replaced by 1pc flywheel housing 40005734 and 1pc tachometer sender kit 21109100.
|
| 23. |
40005734
|
[1] |
Flywheel housing
|
SN2006022155-, Replaced by 22635095
|
| 23. |
22635095
|
[1] |
Flywheel housing
|
|
| 24. |
3583622
|
[1] |
Hose connection
|
|
| 25. |
|
|
|
|
| 26. |
966371
|
[1] |
Flange screw
|
|
| 27. |
966368
|
[2] |
Flange screw
|
|
| 28. |
973924
|
[3] |
Flange screw
|
|
| 29. |
966364
|
[5] |
Flange screw
|
|
| 30. |
3582750
|
[1] |
Cap
|
|
| 31. |
946671
|
[6] |
Flange screw
|
|
| 32. |
888661
|
[1] |
Adhesive
|
|
| 33. |
21109100
|
[1] |
Sensor kit
|
SN-2006022154, Replaced by 1pc flywheel housing 40005734 and 1pc tachometer sender kit 21109100.
|
| 34. |
20513343
|
[1] |
Sensor
|
|
| 35. |
21138237
|
[1] |
Wiring harness
|
|
