纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (04-15) - HARNESS, CANOPY - HARNESS, MICROCONTROLLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
841 次

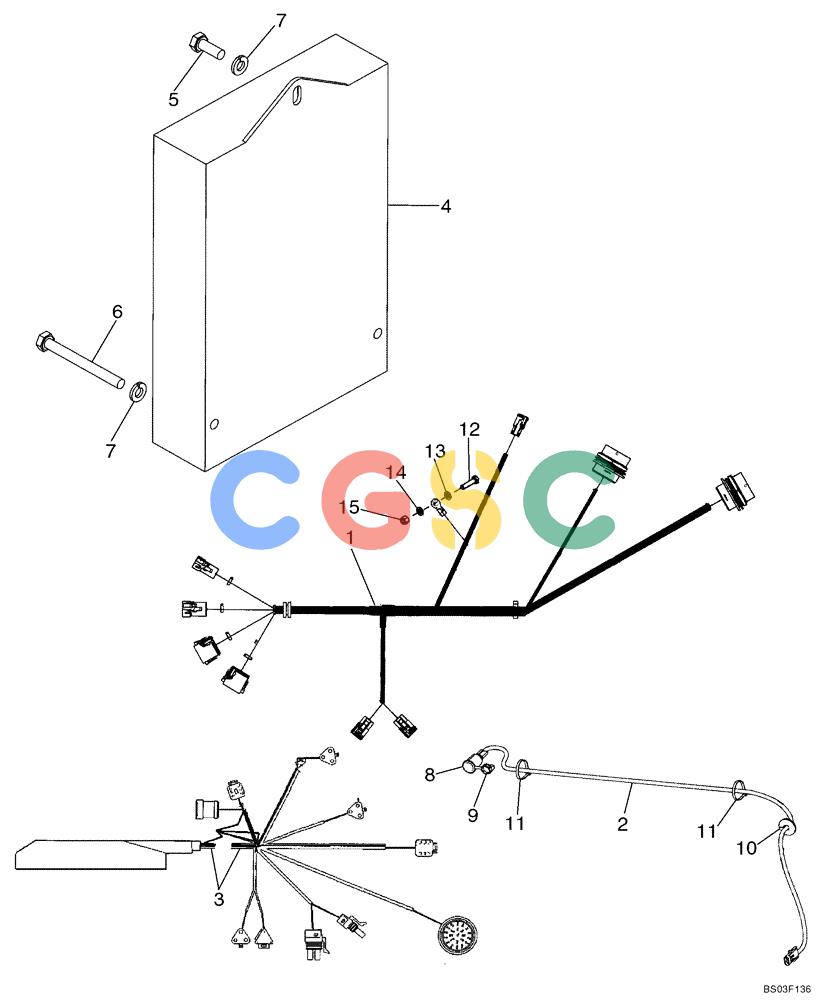

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87411764 | [1] | WIRE HARNESS | BURMain ROPS Canopy Harness; Incl. Ref 1, 87410144 Harness; (2) 79113969 Proximity Sensors; (2) 79113970 Cables; See Figure 07-03 For Sensors and Cables Superseded by part number: 87490927, 87410144, 76040484, 79113970 |
| 1. | 87410144 | [1] | WIRE HARNESS | BURMain ROPS Canopy Harness |
| 2. | 87408569 | [1] | WIRE HARNESS | BURPower Plug Harness |
| 3. | 426946A1 | [1] | WIRE HARNESS | BURIntermediate Microcontroller Harness; Attaches to Main Microcontroller Harness (87438047) |
| 4. | 87329249 | [1] | CONTROL UNIT | BURMicroprocessor Control Box; Component Parts Not Serviced Separately: Replaces 373142A1; See Figure 09-20 For Cover |
| . . | 87329249R | [1] | REMAN-ELECTRONIC CONTROL UNIT | BURDC75 (8/04-) |
| . . | 87329249C | [1] | CORE-ELECTRONIC CONTROL UNIT | BURReturn Number |
| 5. | 614-6016 | [1] | BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 86508568 |
| 6. | 814-6060 | [2] | BOLT,Hex, M6 x 1 x 60mm, Cl 8.8 | CAS Superseded by part number: 338413 |
| 7. | 892-11006 | [3] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 8. | 283779A1 | [1] | POWER SOCKET | CAS |
| 9. | 283781A1 | [1] | CAP | CASPower Plug Outlet |
| 10. | 248-2344 | [1] | GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut | CAS1/2 ID |
| 11. | L18331 | [1] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 12. | 614-6020 | [1] | BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd | CASGround Mounting Inside LH Console Superseded by part number: 120100 |
| 13. | 893-11006 | [1] | LOCK WASHER,Ext Tooth, M6 | CASGround Mounting Inside LH Console Superseded by part number: 86625265 |
| 15. | 829-1406 | [1] | NUT,Hex, M6 x 1, Cl 10.9 | CASGround Mounting Inside LH Console Superseded by part number: 86500688, 87778396 |
