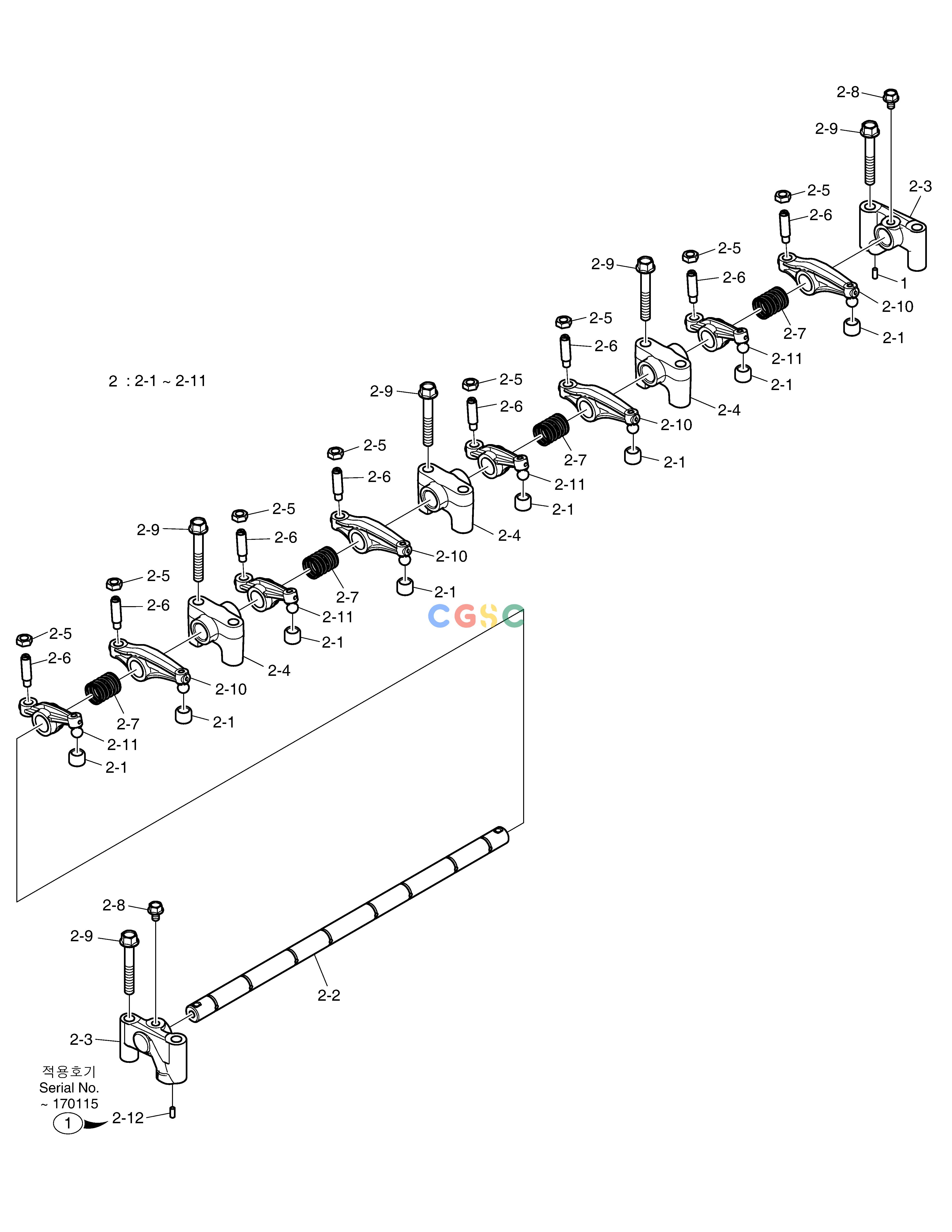

斗山零件查询ROCKER ARM E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
06.22022-0707
|
[2] |
PIN;DOWEL 4M6X10
|
|
| 2. |
150122-00069B
|
[1] |
|
|
| 2. |
150122-00069A
|
[1] |
|
150122-00069B
|
| 2-1. |
120701-00001
|
[8] |
|
|
| 2-10. |
150122-00070
|
[4] |
|
150122-00070A
|
| 2-10. |
150122-00070A
|
[4] |
|
|
| 2-11. |
150122-00071
|
[4] |
|
150122-00071A
|
| 2-11. |
150122-00071A
|
[4] |
|
|
| 2-12. |
06.22022-0707
|
[2] |
PIN;DOWEL 4M6X10
|
|
| 2-2. |
150122-00011
|
[1] |
|
|
| 2-3. |
110424-00003
|
[2] |
|
|
| 2-4. |
110424-00001
|
[3] |
|
|
| 2-5. |
120307-00043
|
[8] |
|
|
| 2-6. |
120702-00003C
|
[8] |
|
|
| 2-7. |
111602-00010
|
[4] |
|
|
| 2-8. |
120106-00194
|
[2] |
|
|
| 2-9. |
120106-00195
|
[10] |
|
|
