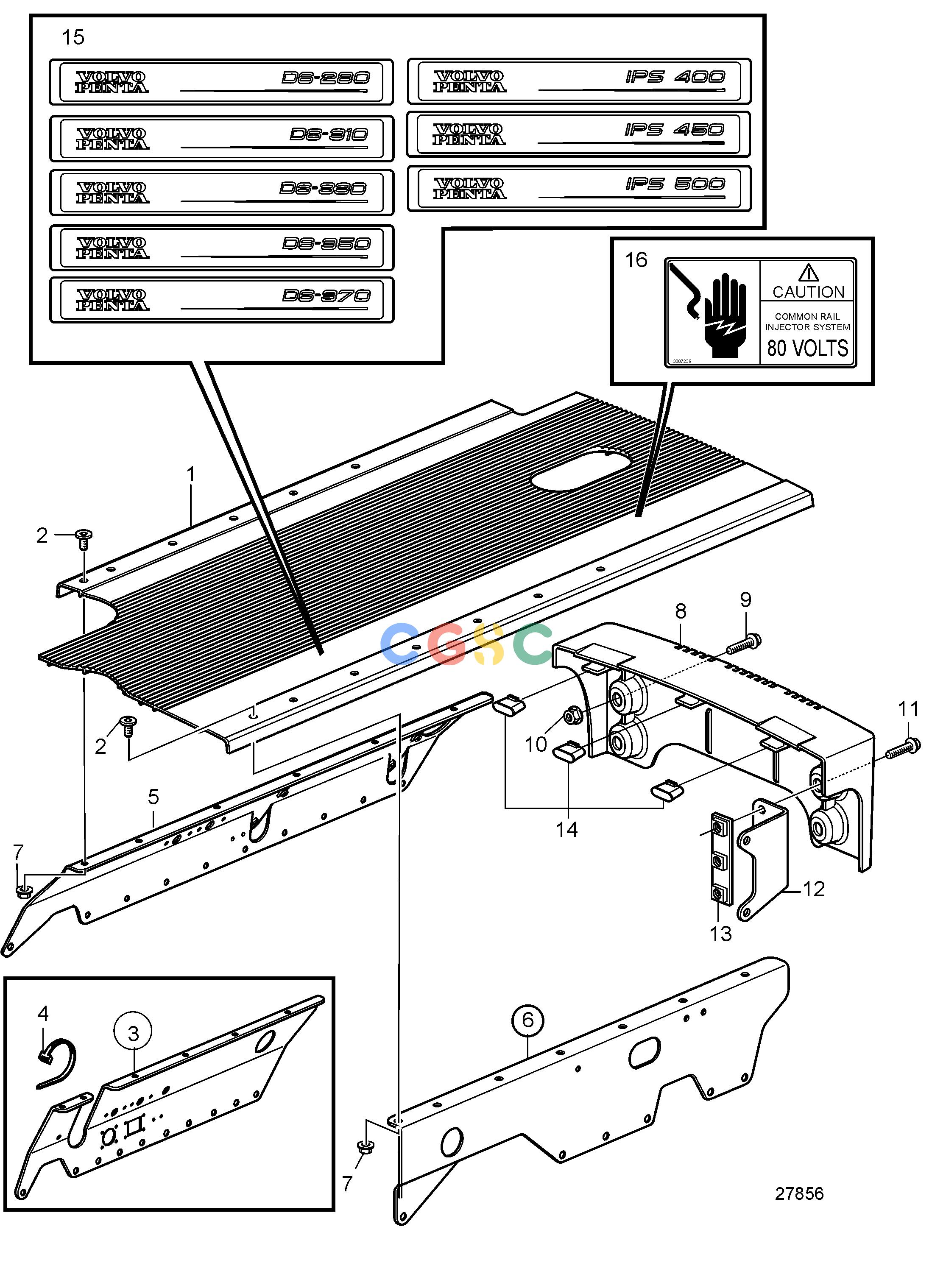

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-EngineProtecting CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3818384
|
[1] |
Cover
|
(889864)
|
| 2. |
971319
|
[13] |
Six point socket scr
|
|
| 3. |
3841269
|
[1] |
Side support
|
SB, 12V, SN-A154743
|
| 3. |
3841344
|
[1] |
Side support
|
SB, 24V, SN-A154357
|
| 4. |
948211
|
[2] |
Cable tie
|
|
| 5. |
21557786
|
[1] |
Support
|
SB, 12V, SNA154358-
|
| 5. |
21552285
|
[1] |
Support
|
SB, 24V, SNA154744-
|
| 6. |
40005067
|
[1] |
Support
|
P, (3808772)
|
| 7. |
|
|
|
|
| 8. |
3588528
|
[1] |
Protecting cover
|
(3584089)
|
| 9. |
946173
|
[4] |
Flange screw
|
|
| 10. |
945408
|
[2] |
Flange nut
|
|
| 11. |
946671
|
[2] |
Flange screw
|
|
| 12. |
3586068
|
[1] |
Bracket
|
|
| 13. |
3586070
|
[1] |
Nut retainer
|
|
| 14. |
3584091
|
[3] |
Support
|
|
| 15. |
3584217
|
[1] |
Decal
|
D6-280
|
| 15. |
3584162
|
[1] |
Decal
|
D6-310
|
| 15. |
3594054
|
[1] |
Decal
|
D6-330
|
| 15. |
3584218
|
[1] |
Decal
|
D6-350
|
| 15. |
3584219
|
[1] |
Decal
|
D6-370
|
| 15. |
3817345
|
[1] |
Decal
|
IPS 400
|
| 15. |
3594250
|
[1] |
Decal
|
IPS 450
|
| 15. |
3817346
|
[1] |
Decal
|
IPS 500
|
| 16. |
3807239
|
[1] |
Decal
|
|
