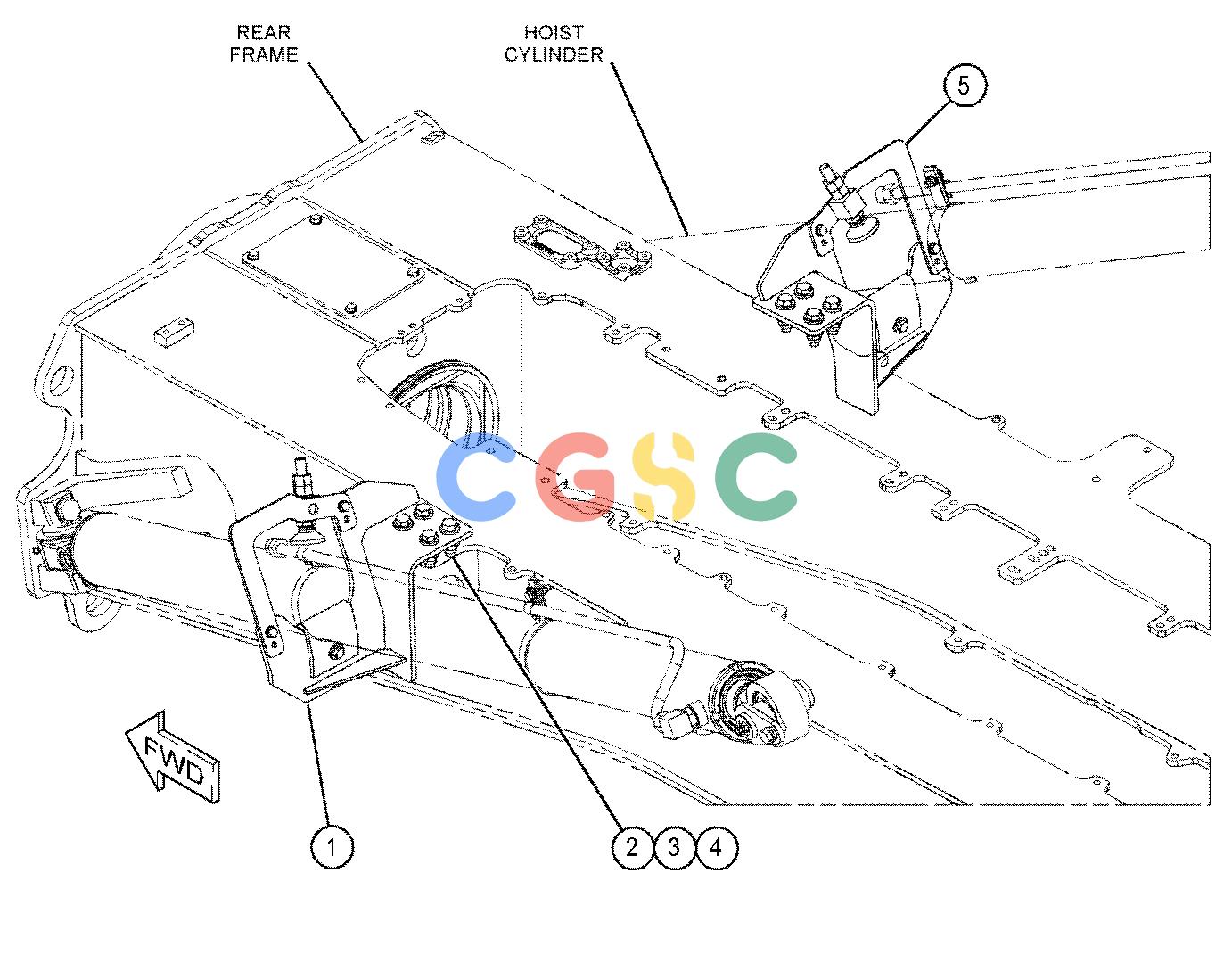

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 456-2280CY | [1] | BRACKET GP-SUPPORT(LH) | |
| 2. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 3. | 8T-4132M | [8] | NUT(M16X2-THD) | |
| 4. | 8T-4140M | [8] | BOLT(M16X2X60-MM) | |
| 5. | 456-2281CY | [1] | BRACKET GP-SUPPORT(RH) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
