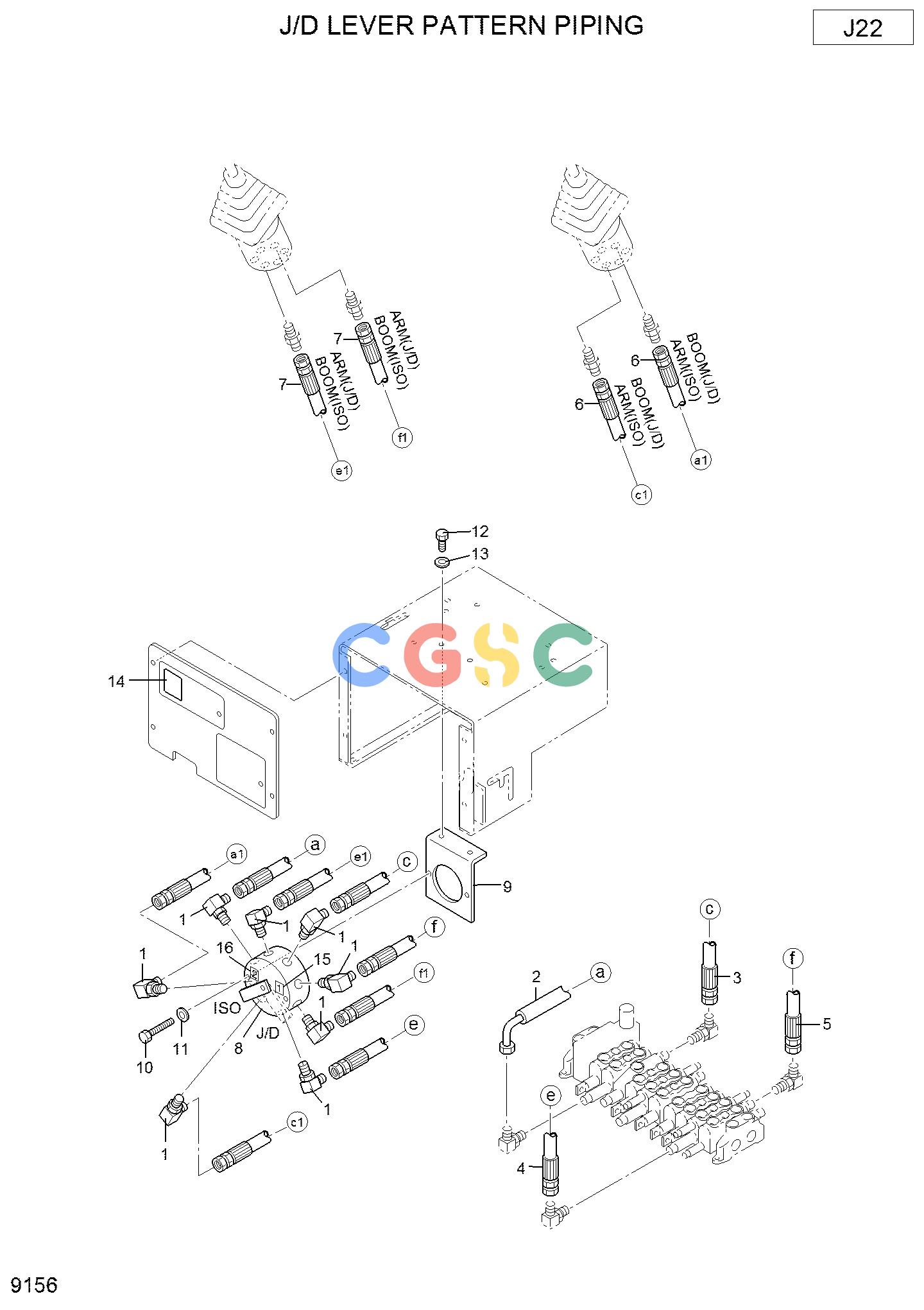

现代零件查询R15-7 J/D LEVER PATTERN PIPINGEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-00467
|
[8] |
ELBOW-MALE 90
|
|
| 2. |
XJDH-02970
|
[1] |
HOSE(A)
|
|
| 3. |
XJDH-02973
|
[1] |
HOSE(C)
|
|
| 4. |
XJDH-02971
|
[1] |
HOSE(E)
|
|
| 5. |
XJDH-02972
|
[1] |
HOSE(F)
|
|
| 6. |
XJDH-03003
|
[2] |
HOSE(A1,C1)
|
|
| 7. |
XJDH-03005
|
[2] |
HOSE(E1,F1)
|
|
| 8. |
XJDH-01379
|
[1] |
VALVE-SELECTOR
|
|
| 9. |
XJDH-03048
|
[1] |
BRACKET ASSY
|
|
| 10. |
XJDH-00028
|
[2] |
BOLT
|
|
| 11. |
XJDH-02904
|
[2] |
WASHER
|
|
| 12. |
XJDH-02881
|
[2] |
BOLT
|
|
| 13. |
XJDH-02907
|
[2] |
WASHER
|
|
| 14. |
XJDH-01228
|
[1] |
LABEL
|
|
| 15. |
XJDH-01229
|
[1] |
LABEL
|
|
| 16. |
XJDH-01230
|
[1] |
LABEL
|
|
