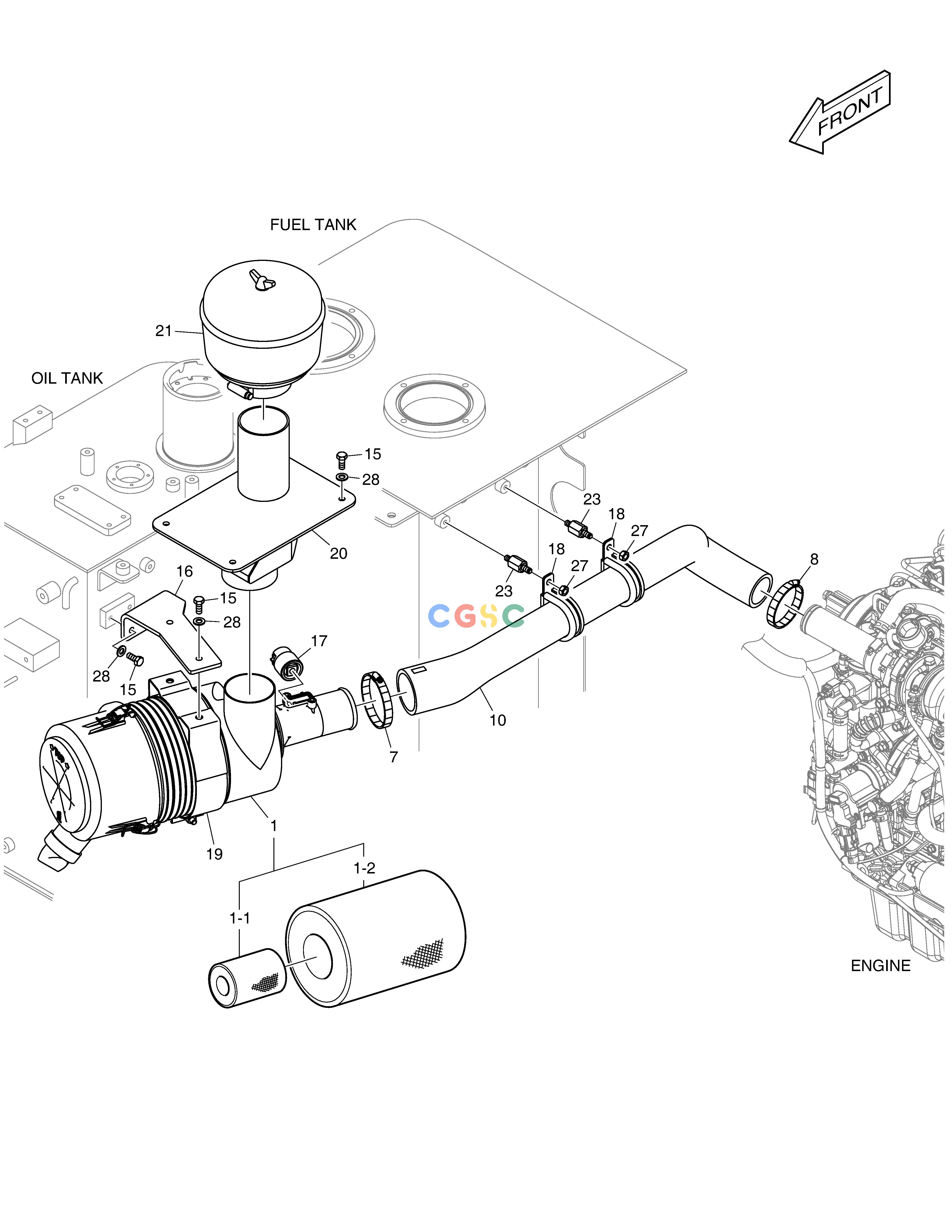

斗山零件查询AIR CLEANER E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00566
|
[1] |
|
|
| 1. |
400414-00468
|
[1] |
|
|
| 1-1. |
400504-00259
|
[1] |
|
|
| 1-2. |
400504-00258
|
[1] |
|
|
| 10. |
420101-00821H
|
[1] |
|
|
| 15. |
S0508766
|
[8] |
BOLT
|
|
| 16. |
110406-02737E-L
|
[1] |
|
|
| 17. |
800217-00002
|
[1] |
|
|
| 18. |
124-00208D9
|
[2] |
CLIP
|
|
| 19. |
120203-00444A
|
[1] |
|
120203-00444B
|
| 19. |
120203-00444B
|
[1] |
|
|
| 20. |
110401-00095G-H
|
[1] |
|
|
| 20. |
110401-00128-H
|
[1] |
|
|
| 21. |
2204-9001B
|
[1] |
CLEANER;PRE
|
|
| 23. |
DS0014020
|
[2] |
|
|
| 27. |
S4012533
|
[2] |
NUT
|
|
| 28. |
S5010513
|
[8] |
WASHER
|
|
| 7. |
S8510079
|
[1] |
|
|
| 8. |
S8510067
|
[1] |
|
|
