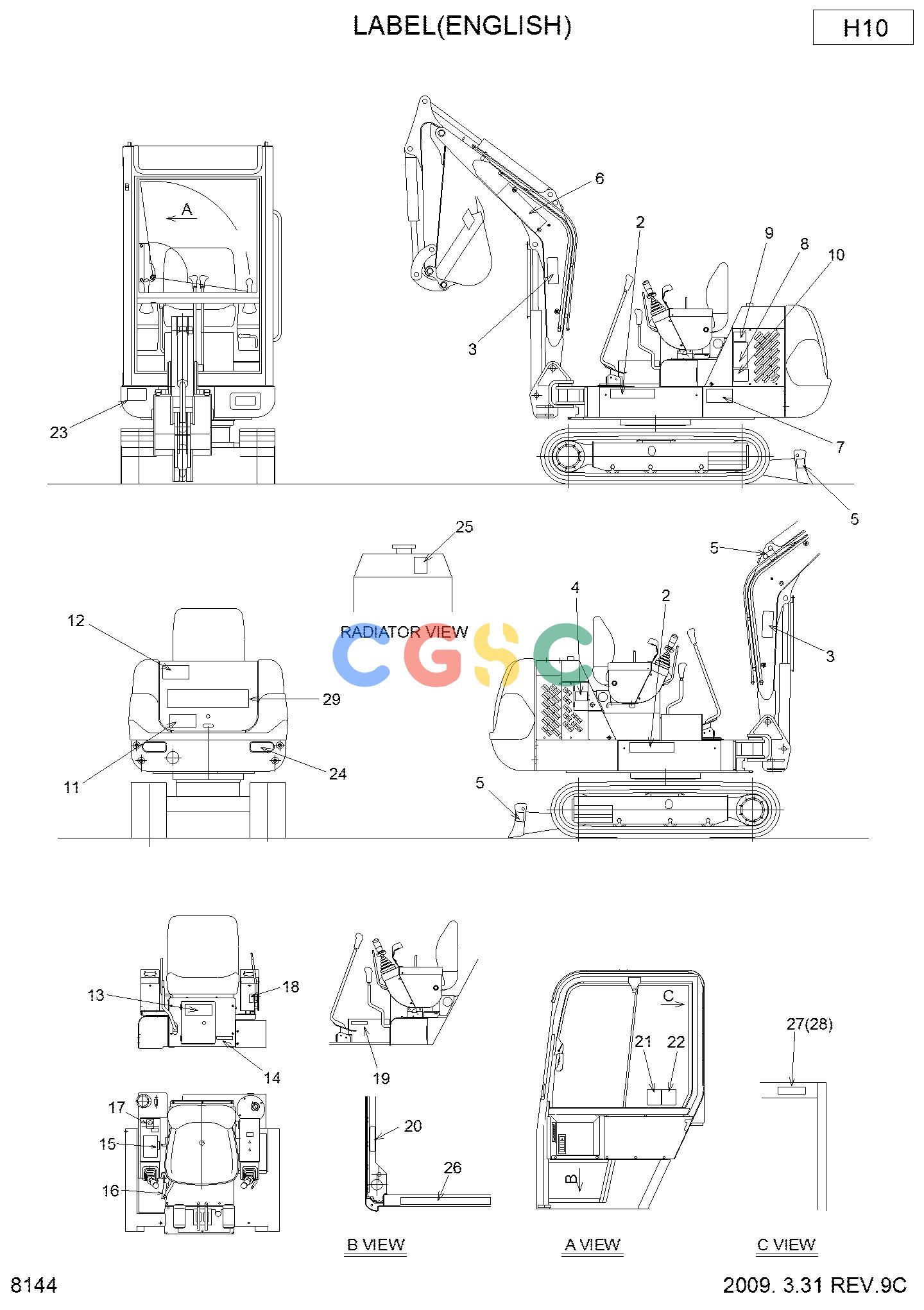

Pos.	Part No	Qty	Parts name	Comments
1.	@	[1]	LABEL ASSY
2.	XJDH-02499	[2]	LABEL	ROBEX 15-7
3.	XJDH-00829	[2]	LABEL	W/STAY CLEAR
4.	XJDH-00837	[1]	LABEL	FUEL
5.	XJDH-00834	[3]	LABEL	HOOK
6.	XJDH-02502	[2]	LABEL	HYUNDAI
7.	XJDH-00825	[1]	LABEL	READ MANUAL
8.	XJDH-00828	[1]	LABEL	W/STAY CLEAR
9.	XJDH-00833	[1]	LABEL	HYD OIL
10.	XJDH-00831	[1]	LABEL	LIFTING
11.	XJDH-00826	[1]	LABEL	W/STOP ENGINE
12.	XJDH-00827	[1]	LABEL	W/HOT SURFACE
13.	XJDH-00824	[1]	LABEL	JOYSTICK CNTL
14.	XJDH-00822	[1]	LABEL	OVER DRIVE
15.	XJDH-00586	[1]	LABEL	ACCEL
16.	XJDH-00817	[1]	LABEL	DOZER
17.	XJDH-00818	[1]	LABEL	KEY SWITCH
18.	XJDH-00819	[1]	LABEL	LOCK
19.	XJDH-00820	[1]	LABEL	SWING
20.	XJDH-00821	[1]	LABEL	PTO
21.	XJDH-01371	[1]	LABEL	LPA 84
22.	XJDH-02855	[1]	LABEL	Lwa 85
23.	XJDH-00309	[4]	RIVET
24.	XJDH-00816	[2]	REFLECTOR
25.	XJDH-01767	[1]	LABEL	W/HOT SURFACE
26.	XJDH-00849	[1]	NON SLIP
27.	XJDH-01372	[1]	LABEL	FOR CABIN
28.	XJDH-01373	[1]	LABEL	FOR ROOF
29.	XJDH-02503	[1]	LABEL-LOGO(D)	HYUNDAI
