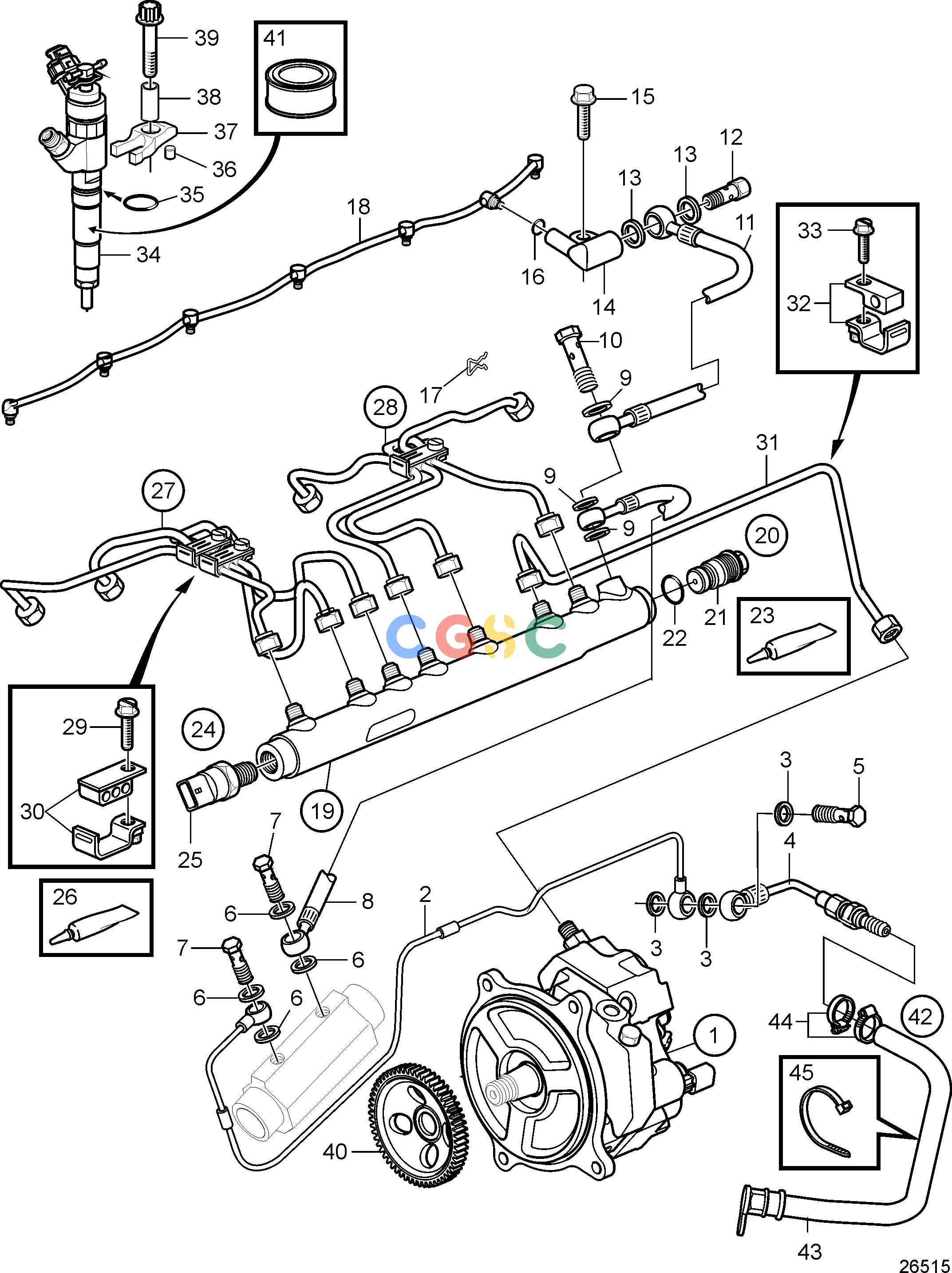

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Fuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
337 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803633
|
[1] |
High-pressure pump,
|
|
| 1. |
|
|
|
|
| 2. |
3583893
|
[1] |
Fuel hose
|
|
| 3. |
11994
|
[3] |
Gasket
|
|
| 4. |
21822234
|
[1] |
Return connection
|
|
| 5. |
947975
|
[1] |
Hollow screw
|
|
| 6. |
20852763
|
[4] |
Sealing ring
|
|
| 7. |
969299
|
[2] |
Hollow screw
|
|
| 8. |
3584368
|
[1] |
Fuel hose
|
|
| 9. |
11994
|
[3] |
Gasket
|
|
| 10. |
947975
|
[1] |
Hollow screw
|
|
| 11. |
3584366
|
[1] |
Fuel hose
|
|
| 12. |
3584427
|
[1] |
Pressure retaining v
|
|
| 13. |
969011
|
[2] |
Gasket
|
|
| 14. |
3583123
|
[1] |
Valve housing
|
|
| 15. |
946173
|
[1] |
Flange screw
|
|
| 16. |
3589700
|
[7] |
O-ring
|
|
| 17. |
3583122
|
[1] |
Lock spring
|
|
| 18. |
3582803
|
[1] |
Leak-off line
|
|
| 19. |
3584371
|
[1] |
Rail
|
SN-2006003696
|
| 19. |
3588740
|
[1] |
Rail
|
SN2006003697-
|
| 19. |
3885742
|
[1] |
Rail
|
SN2006010978-
|
| 20. |
3884353
|
[1] |
Pressure limiting va
|
(3807013)
|
| 21. |
3884350
|
[1] |
Pressure limiting va
|
|
| 22. |
3588336
|
[1] |
O-ring
|
|
| 23. |
828250
|
[1] |
Lubricating grease
|
|
| 24. |
3884352
|
[1] |
Pressure sensor
|
(3587927)
|
| 25. |
3843100
|
[1] |
Pressure sensor
|
|
| 26. |
828250
|
[1] |
Lubricating grease
|
|
| 27. |
3812506
|
[1] |
Delivery pipe kit
|
(3588026)
|
| 28. |
3588027
|
[1] |
Delivery pipe kit
|
|
| 29. |
3586005
|
[2] |
Screw
|
|
| 30. |
3586007
|
[2] |
Clamp
|
|
| 31. |
3582796
|
[1] |
Delivery pipe
|
|
| 32. |
3588018
|
[2] |
Clamp
|
|
| 33. |
946544
|
[2] |
Flange screw
|
|
| 34. |
3801294
|
[6] |
Injector
|
SN-2006003696
|
| 34. |
3801295
|
[6] |
Injector
|
SN2006003697-
|
| 35. |
3887602
|
[6] |
O-ring
|
|
| 36. |
3583442
|
[6] |
Support
|
|
| 37. |
3582669
|
[6] |
Clamp
|
|
| 38. |
889789
|
[6] |
Sleeve
|
|
| 39. |
3586690
|
[6] |
Six point screw
|
|
| 40. |
889749
|
[1] |
Gear
|
|
| 41. |
3588346
|
[1] |
Lubricant
|
500G
|
| 42. |
21967719
|
[1] |
Hose
|
|
| 43. |
21945682
|
[1] |
Hose
|
|
| 44. |
961664
|
[2] |
Hose clamp
|
|
| 45. |
980464
|
[1] |
Cable tie
|
|
