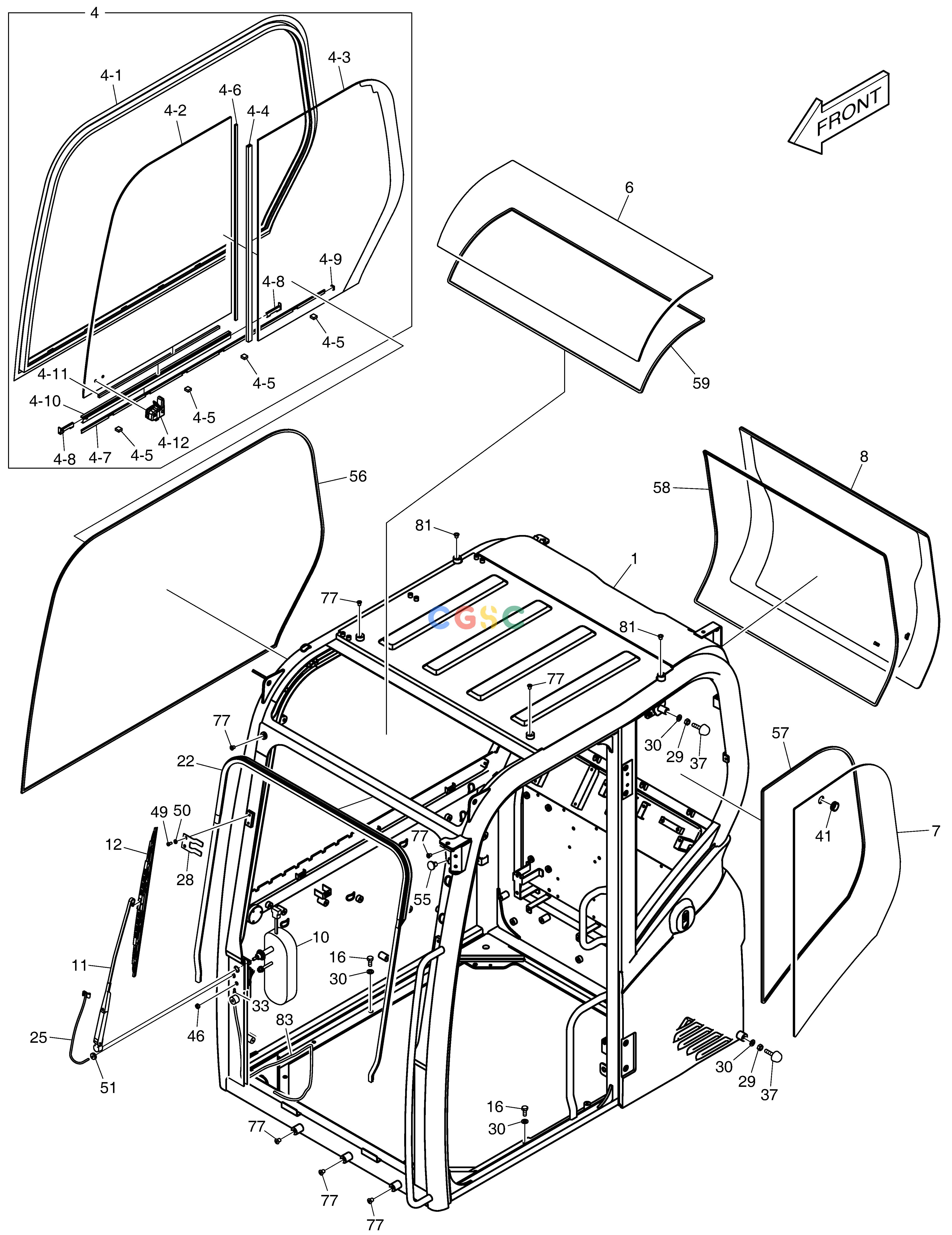

斗山零件查询CABIN(1) - GLASS E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01096L-L
|
[1] |
|
220101-01096P-L
|
| -. |
220101-01096P-L
|
[1] |
|
|
| 1. |
160604-00179L
|
[1] |
|
|
| 10. |
K1024109
|
[1] |
MOTOR;WIPER
|
|
| 11. |
300704-00016
|
[1] |
ARM ASSY,WIPER
|
|
| 12. |
507-00004
|
[1] |
BLADE;WIPER
|
|
| 16. |
2120-2166D2
|
[9] |
BOLT
|
|
| 22. |
101588-00071A
|
[1] |
|
|
| 25. |
415-00040
|
[1] |
NOZZLE;WIPER MOTOR
|
|
| 28. |
250107-00491
|
[1] |
|
|
| 29. |
2121-1311D4
|
[2] |
NUT
|
|
| 30. |
2114-1898D15
|
[11] |
WASHER
|
|
| 33. |
2415-1018
|
[1] |
ADAPTER
|
|
| 37. |
K1001260A
|
[2] |
STOPPER
|
|
| 4. |
220109-00047K
|
[1] |
|
|
| 4-1. |
220109-00080
|
[1] |
|
|
| 4-10. |
110922-01338
|
[1] |
|
|
| 4-11. |
110922-01339
|
[1] |
|
|
| 4-12. |
101544-00014
|
[1] |
|
|
| 4-2. |
500119-00573
|
[1] |
|
|
| 4-3. |
500119-00574
|
[1] |
|
|
| 4-4. |
110302-01370
|
[1] |
|
|
| 4-5. |
622-00122
|
[4] |
STOPPER;RUBBER
|
|
| 4-6. |
220214-00121
|
[1] |
|
|
| 4-7. |
110922-01337
|
[1] |
|
|
| 4-8. |
110910-01900
|
[2] |
|
|
| 4-9. |
110956-00623
|
[1] |
|
|
| 41. |
131009-00087
|
[1] |
|
|
| 46. |
2121-1311D2
|
[1] |
NUT
|
|
| 49. |
2120-2166D7
|
[2] |
SCREW
|
|
| 50. |
2114-1898D3
|
[2] |
WASHER
|
|
| 51. |
K1018803
|
[1] |
GROMMET
|
|
| 55. |
2160-1310
|
[1] |
BUSHING,RUBBER
|
|
| 56. |
180102-00824A
|
[1] |
|
|
| 57. |
180102-00764C
|
[1] |
|
|
| 57. |
180102-00764B
|
[1] |
|
180102-00764C
|
| 58. |
180102-00756B
|
[1] |
|
|
| 59. |
180102-00765A
|
[1] |
|
|
| 6. |
500119-00372A
|
[1] |
|
|
| 7. |
500119-00373E
|
[1] |
|
|
| 7. |
500119-00373C
|
[1] |
|
500119-00373E
|
| 77. |
110910-00038A
|
[7] |
CAP
|
|
| 8. |
500119-00367C
|
[1] |
|
|
| 81. |
110910-00077
|
[2] |
CAP
|
|
| 83. |
4185-1777
|
[1] |
HOSE;WATER
|
|
