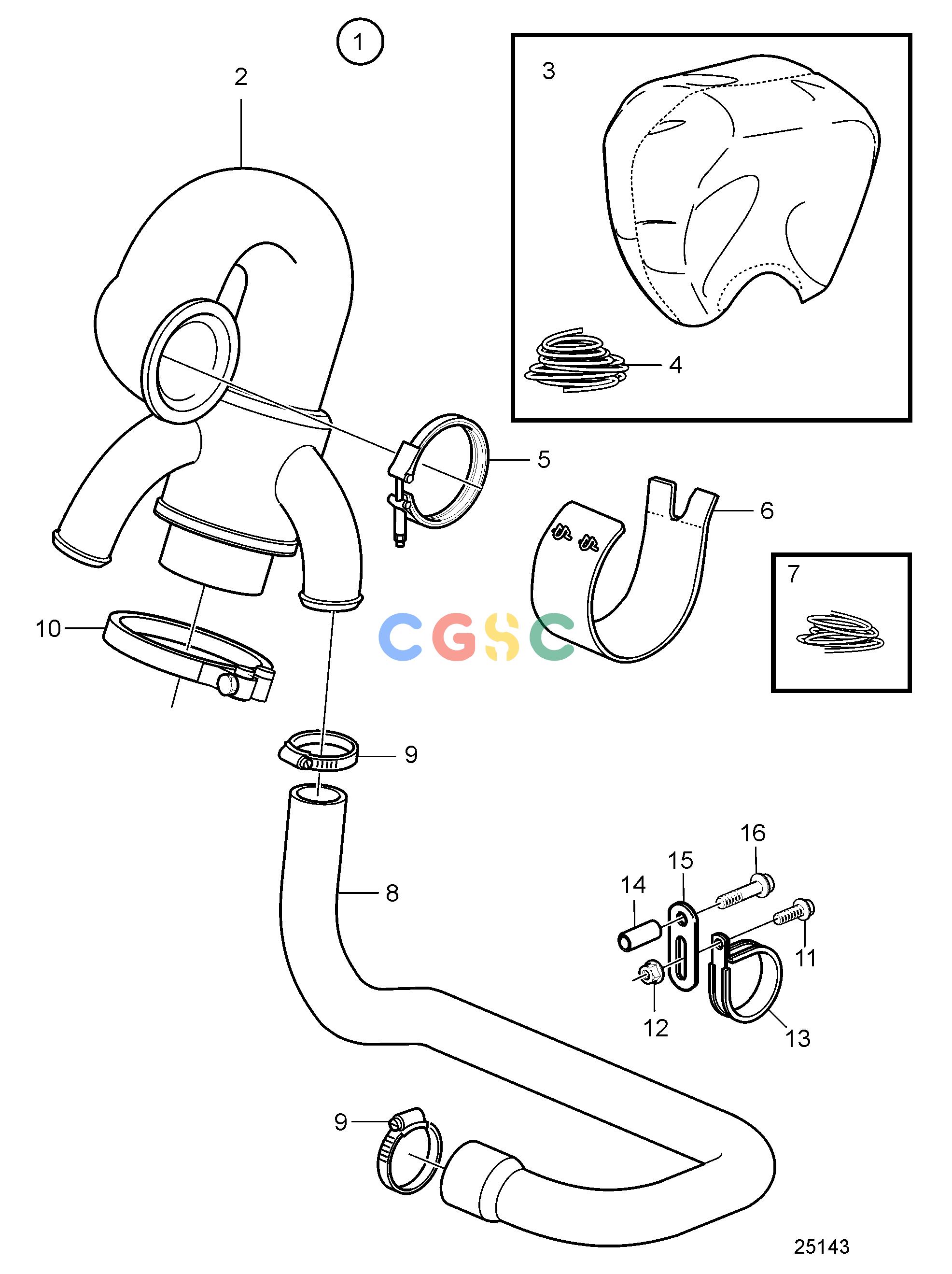

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Intake and Exhaust SystemExhaust Riser Kit, AQEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21187492
|
[1] |
Exhaust riser
|
|
| 2. |
3840609
|
[1] |
Exhaust riser
|
|
| 3. |
3584485
|
[1] |
Insulation
|
|
| 4. |
941710
|
[1] |
Locking wire
|
400mm
|
| 5. |
21325767
|
[1] |
V-clamp
|
|
| 6. |
3817196
|
[1] |
Insulation
|
|
| 7. |
941710
|
[1] |
Locking wire
|
1000mm
|
| 8. |
40005134
|
[2] |
Hose
|
|
| 9. |
961671
|
[2] |
Hose clamp
|
|
| 10. |
3817486
|
[1] |
Hose clamp
|
|
| 11. |
946440
|
[1] |
Flange screw
|
|
| 12. |
945408
|
[1] |
Flange nut
|
|
| 13. |
969354
|
[1] |
Clamp
|
|
| 14. |
980935
|
[1] |
Spacer sleeve
|
|
| 15. |
965534
|
[1] |
Bracket
|
|
| 16. |
973924
|
[1] |
Flange screw
|
|
