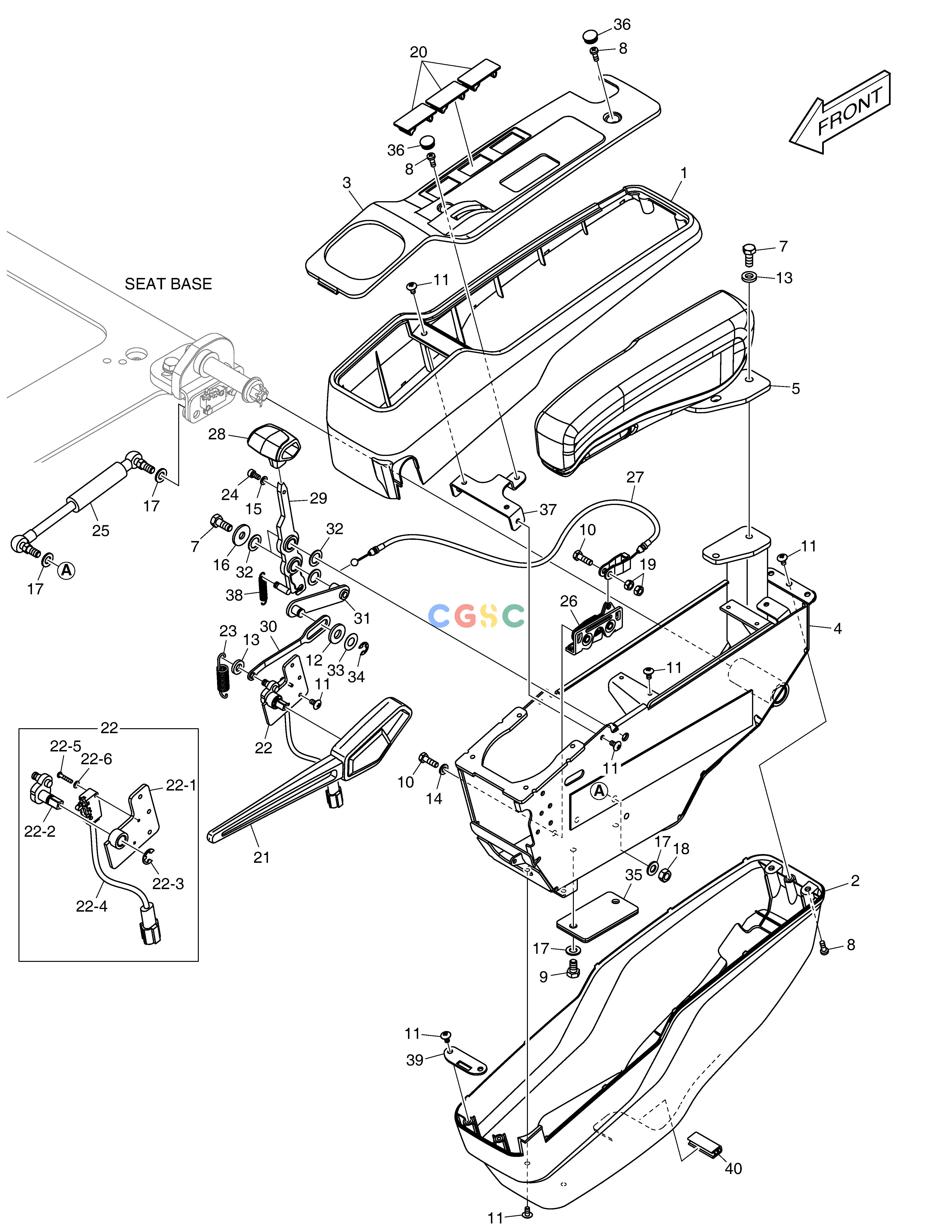

斗山零件查询CONTROL STAND - L.H E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
724 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220111-00074L
|
[-] |
|
|
| -. |
220111-00074M
|
[-] |
|
|
| -. |
220111-00074K
|
[-] |
|
|
| 1. |
220204-00244K
|
[1] |
|
|
| 10. |
2120-2166D36
|
[3] |
BOLT
|
|
| 11. |
2120-2166D53
|
[12] |
. SCREW
|
|
| 12. |
2114-1898D1
|
[1] |
WASHER
|
|
| 13. |
2114-1898D2
|
[3] |
WASHER
|
|
| 14. |
2114-1898D3
|
[2] |
WASHER
|
|
| 15. |
2114-1898D4
|
[1] |
WASHER
|
|
| 16. |
2114-1898D8
|
[2] |
WASHER
|
|
| 17. |
2114-1898D14
|
[5] |
WASHER
|
|
| 18. |
2121-1311D2
|
[1] |
NUT
|
|
| 19. |
S4012333
|
[2] |
NUT
|
|
| 2. |
220204-00245G
|
[1] |
|
|
| 20. |
621-02801
|
[3] |
COVER,SWITCH
|
|
| 21. |
101101-00328A
|
[1] |
|
|
| 22. |
301417-00045B
|
[1] |
|
|
| 22-1. |
110431-00155A
|
[1] |
|
|
| 22-2. |
120501-03328
|
[1] |
|
|
| 22-3. |
S6540800
|
[1] |
RING;RETAINING
|
|
| 22-4. |
549-00089
|
[1] |
. SWITCH,MICRO
|
|
| 22-5. |
S3450373
|
[2] |
SCREW
|
|
| 22-6. |
S5000013
|
[2] |
WASHER
|
|
| 23. |
111601-00956
|
[1] |
|
|
| 24. |
S2202866
|
[1] |
BOLT;SOCKET M5X0.8X10
|
|
| 25. |
400315-00054
|
[1] |
|
|
| 26. |
100601-00028
|
[1] |
|
|
| 27. |
310302-00129B
|
[1] |
|
|
| 28. |
110920-00058
|
[1] |
|
|
| 29. |
101540-00014C
|
[1] |
|
|
| 3. |
220204-00268B
|
[1] |
|
|
| 30. |
101540-00059B
|
[1] |
|
|
| 31. |
101540-00060B
|
[1] |
|
|
| 32. |
120810-00050
|
[4] |
|
|
| 33. |
2114-1059D1
|
[1] |
SHIM
|
|
| 34. |
S6540800
|
[1] |
RING;RETAINING
|
|
| 35. |
250201-02484
|
[1] |
|
|
| 36. |
110508-00063A
|
[2] |
|
|
| 37. |
110431-00154A
|
[1] |
|
|
| 38. |
111601-00948A
|
[1] |
|
|
| 39. |
110515-00328
|
[1] |
|
|
| 4. |
110431-00140G
|
[1] |
|
110431-00140H
|
| 4. |
110431-00140H
|
[1] |
|
|
| 40. |
101588-00104
|
[1] |
|
|
| 5. |
220106-00043B
|
[1] |
|
|
| 7. |
2120-2166D5
|
[4] |
BOLT
|
|
| 8. |
2120-2166D8
|
[4] |
BOLT
|
|
| 9. |
2120-2166D12
|
[2] |
BOLT
|
|
