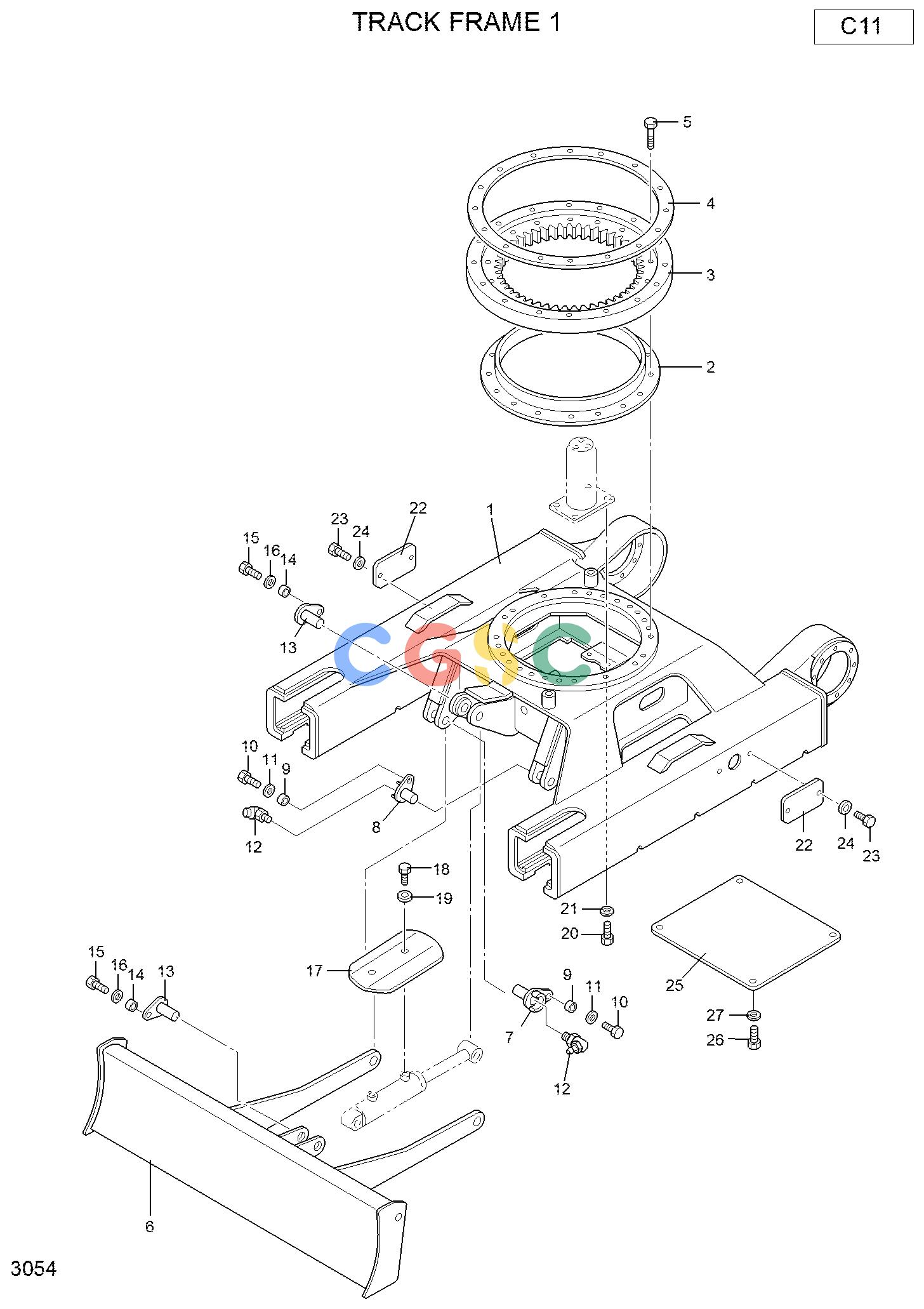

现代零件查询R15-7 TRACK FRAME 1EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03043
|
[1] |
TRACK FRAME
|
|
| 2. |
XJDH-00037
|
[4] |
BOLT
|
|
| 3. |
XJDH-00276
|
[4] |
WASHER
|
|
| 4. |
XJDH-02862
|
[1] |
BEARING-TURNING
|
|
| 5. |
XJDH-02871
|
[18] |
BOLT
|
|
| 6. |
XJDH-00091
|
[15] |
BOLT
|
|
| 7. |
XJDH-00278
|
[15] |
WASHER
|
|
| 8. |
XJDH-00305
|
[2] |
PIN
|
|
| 9. |
XJDH-03044
|
[1] |
DOZER ASSY
|
|
| 10. |
XJDH-01393
|
[1] |
PIN-DOZER ARM MOUNT
|
|
| 11. |
XJDH-01395
|
[1] |
PIN-DOZER ARM MOUNT
|
|
| 12. |
XJDH-01181
|
[2] |
COLLAR
|
|
| 13. |
XJDH-00152
|
[2] |
BOLT
|
|
| 14. |
XJDH-00280
|
[2] |
WASHER
|
|
| 15. |
XJDH-00377
|
[2] |
NIPPLE-GREASE 90
|
|
| 16. |
XJDH-01394
|
[2] |
PIN-DOZER CYLINDER
|
|
| 17. |
XJDH-01181
|
[2] |
COLLAR
|
|
| 18. |
XJDH-00152
|
[2] |
BOLT
|
|
| 19. |
XJDH-00280
|
[2] |
WASHER
|
|
| 20. |
XJDH-01218
|
[1] |
COVER-DOZER CYLINDER
|
|
| 21. |
XJDH-00144
|
[2] |
BOLT
|
|
| 22. |
XJDH-00278
|
[2] |
WASHER
|
|
| 23. |
XJDH-01391
|
[2] |
COVER-GREASE SUPPLY
|
|
| 24. |
XJDH-00032
|
[4] |
BOLT
|
|
| 25. |
XJDH-00276
|
[4] |
WASHER
|
|
| 26. |
XJDH-01248
|
[2] |
PLATE
|
|
| 27. |
XJDH-00032
|
[4] |
BOLT
|
|
| 28. |
XJDH-00276
|
[4] |
WASHER
|
|
