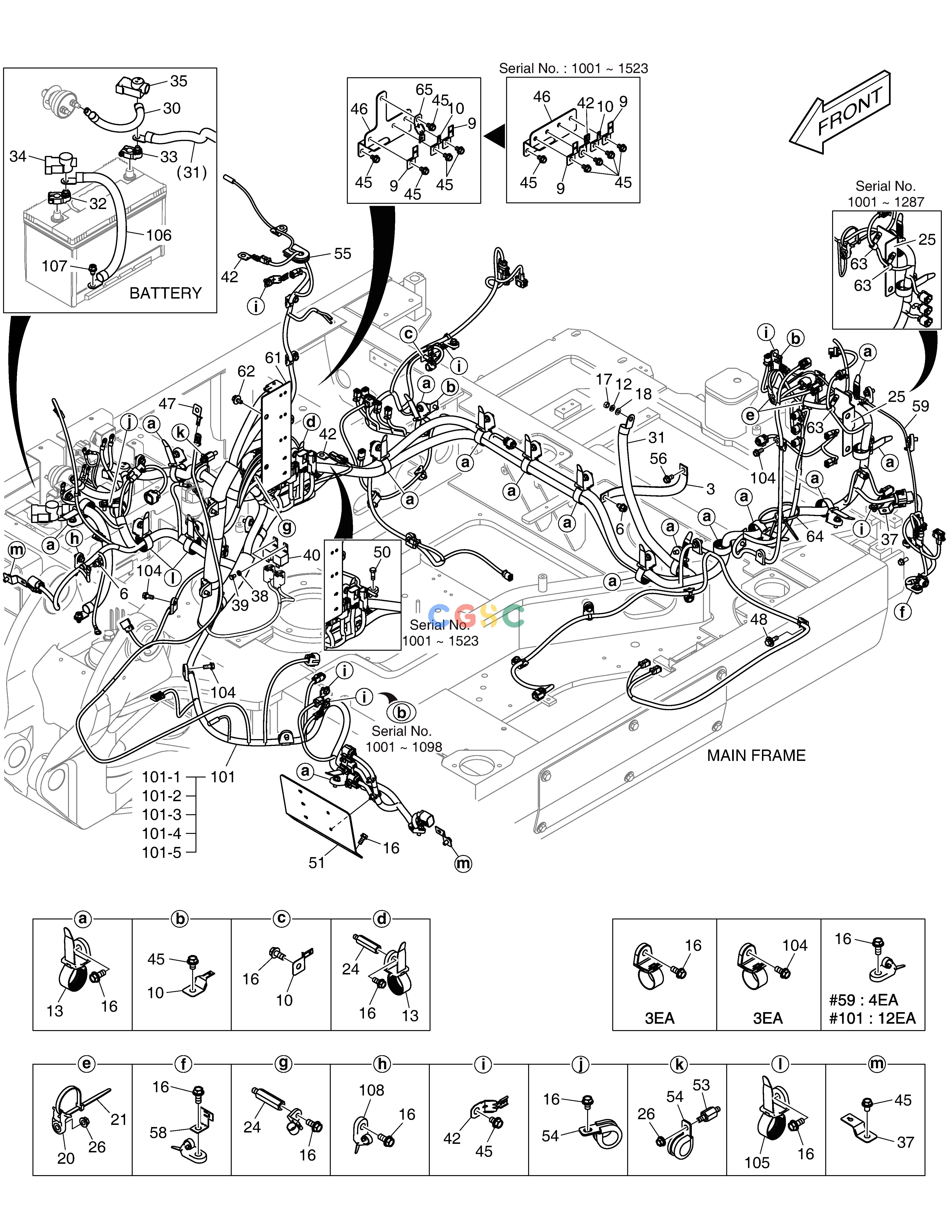

斗山零件查询ELECTRIC WIRING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02340
|
[-] |
|
|
| 10. |
2197-1661
|
[5] |
BRACKET
|
|
| 10. |
2197-1661
|
[4] |
BRACKET
|
|
| 101. |
310207-04909A
|
[1] |
|
|
| 101. |
310207-04909B
|
[1] |
|
|
| 101. |
310207-04909G
|
[1] |
|
|
| 101-1. |
120402-00440
|
[1] |
CLIP
|
|
| 101-2. |
120402-00439
|
[1] |
CLIP
|
|
| 101-3. |
2548-1027
|
[2] |
DIODE
|
|
| 101-4. |
K1000814
|
[1] |
DIODE
|
|
| 101-5. |
300617-00044
|
[1] |
|
|
| 104. |
120106-00596
|
[6] |
BOLT
|
|
| 105. |
120402-00439
|
[2] |
CLIP
|
|
| 106. |
2553-1275D164
|
[1] |
|
|
| 107. |
120106-00701
|
[1] |
BOLT
|
|
| 108. |
120402-00440
|
[1] |
CLIP
|
|
| 12. |
S5102503
|
[1] |
. WASHER
|
|
| 13. |
120402-00439
|
[16] |
CLIP
|
|
| 16. |
120106-00596
|
[46] |
BOLT
|
|
| 17. |
S4012533
|
[1] |
NUT
|
|
| 18. |
S5010513
|
[1] |
WASHER
|
|
| 20. |
110420-00330
|
[2] |
BRACKET
|
|
| 21. |
310101-00035
|
[2] |
TIE,CABLE
|
|
| 24. |
2120-2187
|
[2] |
BOLT
|
|
| 25. |
110433-00287B
|
[1] |
|
|
| 25. |
110433-00433
|
[1] |
|
|
| 26. |
2121-1305
|
[3] |
NUT
|
|
| 3. |
553-00001D4
|
[1] |
CABLE;E/G EARTH
|
|
| 30. |
DS4531229
|
[1] |
|
|
| 31. |
2553-1275D182
|
[1] |
|
|
| 32. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 33. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 34. |
2160-1213
|
[1] |
CAP,BATT. TML(-)
|
|
| 35. |
180308-00628
|
[1] |
|
|
| 37. |
110406-02674
|
[3] |
|
|
| 38. |
S5102303
|
[2] |
. WASHER
|
|
| 39. |
S0504353
|
[2] |
BOLT M6X1.0X10
|
|
| 40. |
K1053575
|
[2] |
RELAY 70A
|
|
| 42. |
110406-02760A
|
[7] |
BRACKET
|
|
| 42. |
110406-02760A
|
[8] |
BRACKET
|
|
| 45. |
K1001029
|
[16] |
BOLT
|
|
| 46. |
110433-00349A
|
[1] |
|
|
| 46. |
110433-00349B
|
[1] |
|
|
| 47. |
K1026566
|
[1] |
BRACKET;CONNECTOR
|
|
| 48. |
DS0025039
|
[1] |
BOLT;SET
|
|
| 50. |
S0509066
|
[1] |
BOLT
|
|
| 51. |
110406-03424A
|
[1] |
|
|
| 53. |
DS0014020
|
[1] |
|
|
| 54. |
124-00208D4
|
[2] |
CLIP
|
|
| 55. |
180308-00542A
|
[1] |
|
|
| 56. |
2120-2196D6
|
[1] |
BOLT;SET M12X1.75X20
|
|
| 58. |
110406-01536
|
[1] |
|
|
| 58. |
110406-02676
|
[1] |
|
|
| 59. |
310207-04881A
|
[1] |
|
|
| 59. |
310207-04881C
|
[1] |
|
|
| 6. |
120106-00701
|
[2] |
BOLT
|
|
| 61. |
110433-00328A
|
[1] |
|
|
| 62. |
DS0025033
|
[2] |
BOLT
|
|
| 63. |
2124-1509D9
|
[2] |
CLIP
|
|
| 63. |
2124-1509D9
|
[1] |
CLIP
|
|
| 64. |
310101-00187
|
[1] |
TIE,CABLE
|
|
| 65. |
110406-02761A
|
[1] |
|
|
| 9. |
2197-1660
|
[2] |
BRACKET
|
|
