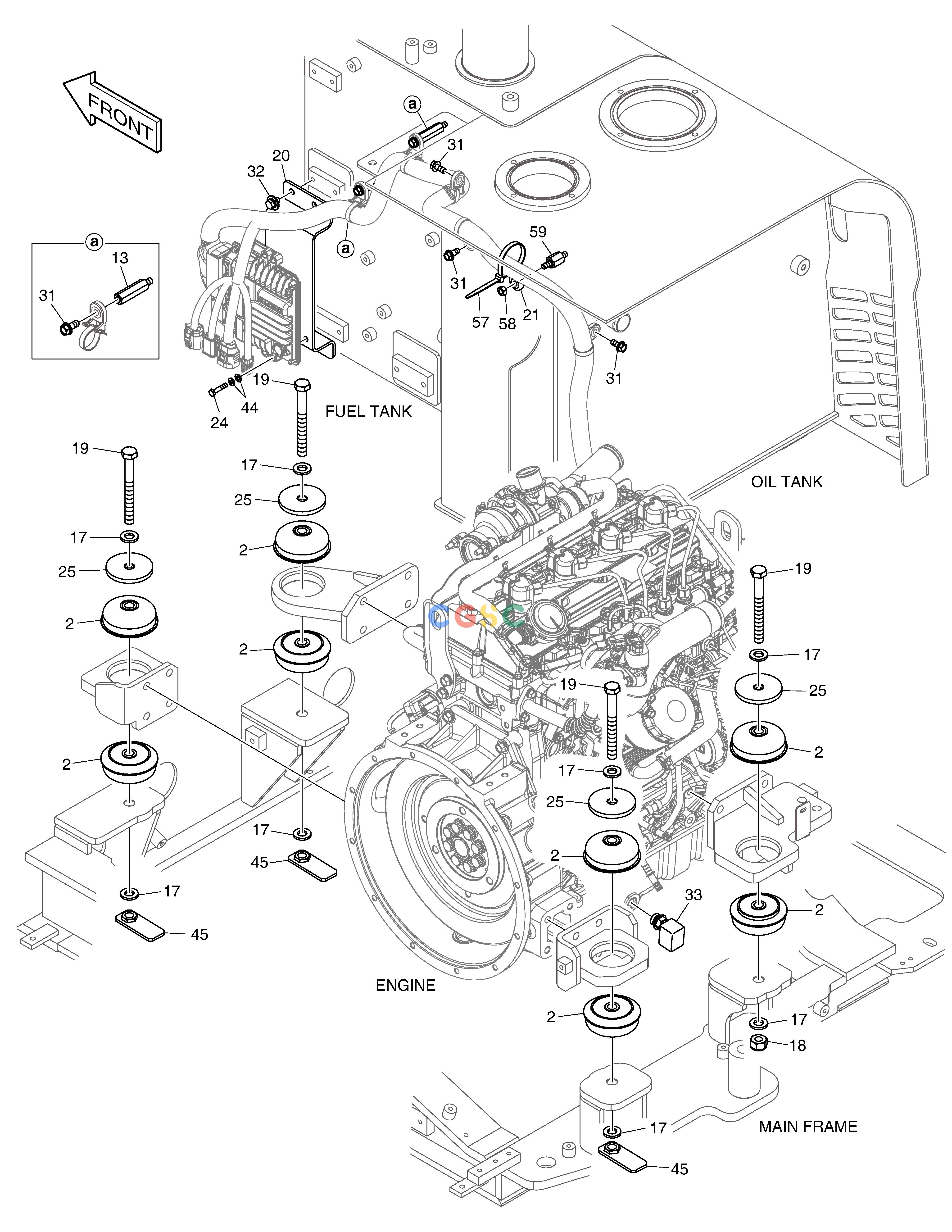

斗山零件查询ENGINE MOUNTING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-01613
|
[1] |
|
|
| 13. |
2120-2187
|
[2] |
BOLT
|
|
| 17. |
K1015638
|
[8] |
WASHER;HARDENED
|
|
| 18. |
DS0311008
|
[1] |
NUT;LOCK
|
|
| 19. |
S0764566
|
[4] |
|
|
| 2. |
K1036274
|
[8] |
RUBBER;ENGINE MOUNT
|
|
| 20. |
110407-00044A-L
|
[1] |
|
|
| 21. |
110420-00330
|
[1] |
BRACKET
|
|
| 24. |
S0505253
|
[4] |
BOLT M6X1.0X30
|
|
| 25. |
K1037250
|
[4] |
WASHER
|
|
| 31. |
120106-00596
|
[5] |
BOLT
|
|
| 32. |
DS0025038
|
[3] |
BOLT M8X1.25X15
|
|
| 33. |
DS2308028
|
[1] |
|
|
| 44. |
S5010303
|
[8] |
WASHER
|
|
| 45. |
110958-03541
|
[3] |
SUPPORT;NUT
|
|
| 57. |
310101-00035
|
[1] |
TIE,CABLE
|
|
| 58. |
S4012533
|
[1] |
NUT
|
|
| 59. |
DS0014020
|
[1] |
|
|
