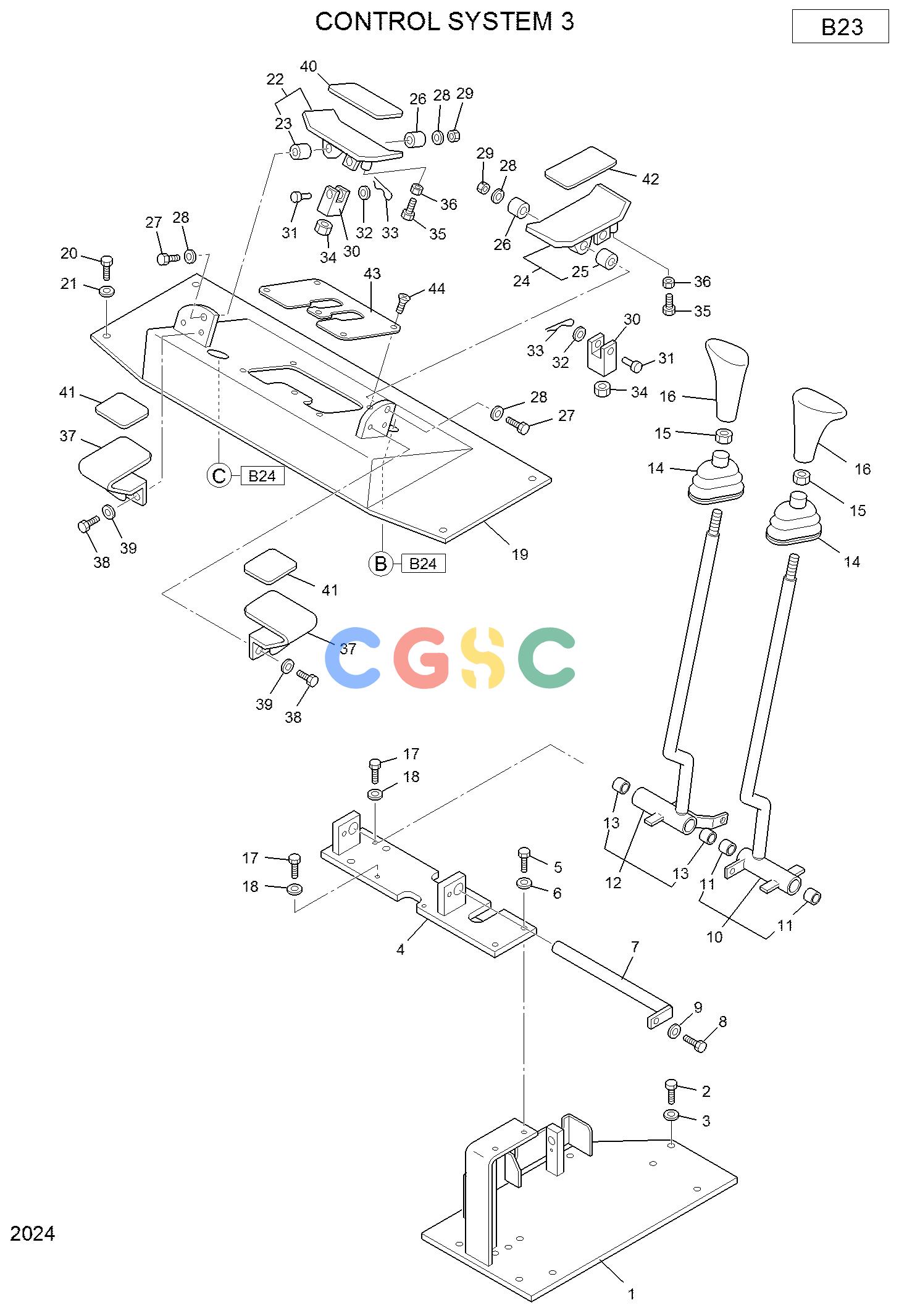

现代零件查询R15-7 CONTROL SYSTEM 3EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01340
|
[1] |
BRACKET
|
|
| 2. |
XJDH-00035
|
[2] |
BOLT
|
|
| 3. |
XJDH-00276
|
[2] |
WASHER
|
|
| 4. |
XJDH-01341
|
[1] |
LEVER-DRIVE (L)
|
|
| 5. |
XJDH-02914
|
[2] |
BUSHING
|
|
| 6. |
XJDH-01342
|
[1] |
LEVER-DRIVE (R)
|
|
| 7. |
XJDH-02914
|
[2] |
BUSHING
|
|
| 8. |
XJDH-01032
|
[2] |
BOOTS
|
|
| 9. |
XJDH-02890
|
[3] |
NUT
|
|
| 10. |
XJDH-01005
|
[3] |
GRIP
|
|
| 11. |
XJDH-01343
|
[1] |
LEVER-DOZER
|
|
| 12. |
XJDH-02916
|
[1] |
BUSHING
|
|
| 13. |
XJDH-02880
|
[1] |
BOLT
|
|
| 14. |
XJDH-00264
|
[1] |
WASHER
|
|
| 15. |
XJDH-01361
|
[1] |
PIN-DRIVE LEVER
|
|
| 16. |
XJDH-00032
|
[1] |
BOLT
|
|
| 17. |
XJDH-00276
|
[1] |
WASHER
|
|
| 18. |
XJDH-01345
|
[2] |
PEDAL
|
|
| 19. |
XJDH-02915
|
[2] |
BUSHING
|
|
| 20. |
XJDH-01232
|
[2] |
PIN-SWING (I)
|
|
| 21. |
XJDH-02885
|
[2] |
BOLT
|
|
| 22. |
XJDH-00264
|
[2] |
WASHER
|
|
| 23. |
XJDH-01348
|
[2] |
NON SLIP
|
|
| 24. |
XJDH-01206
|
[1] |
STOPPER-PEDAL
|
|
| 25. |
XJDH-01207
|
[2] |
COLLAR
|
|
| 26. |
XJDH-00035
|
[4] |
BOLT
|
|
| 27. |
XJDH-00276
|
[4] |
WASHER
|
|
| 28. |
XJDH-02894
|
[1] |
NUT
|
|
| 29. |
XJDH-02851
|
[1] |
WIRE-PUSH PULL
|
|
| 30. |
XJDH-02850
|
[4] |
WIRE-PUSH PULL
|
|
| 31. |
XJDH-01346
|
[10] |
END-ROD
|
|
| 32. |
XJDH-01402
|
[10] |
PIN
|
|
| 33. |
XJDH-02912
|
[10] |
PIN-SNAP
|
|
| 34. |
XJDH-00253
|
[10] |
WASHER
|
|
| 35. |
XJDH-00182
|
[10] |
NUT
|
|
| 36. |
XJDH-00035
|
[4] |
BOLT
|
|
| 37. |
XJDH-00276
|
[4] |
WASHER
|
|
