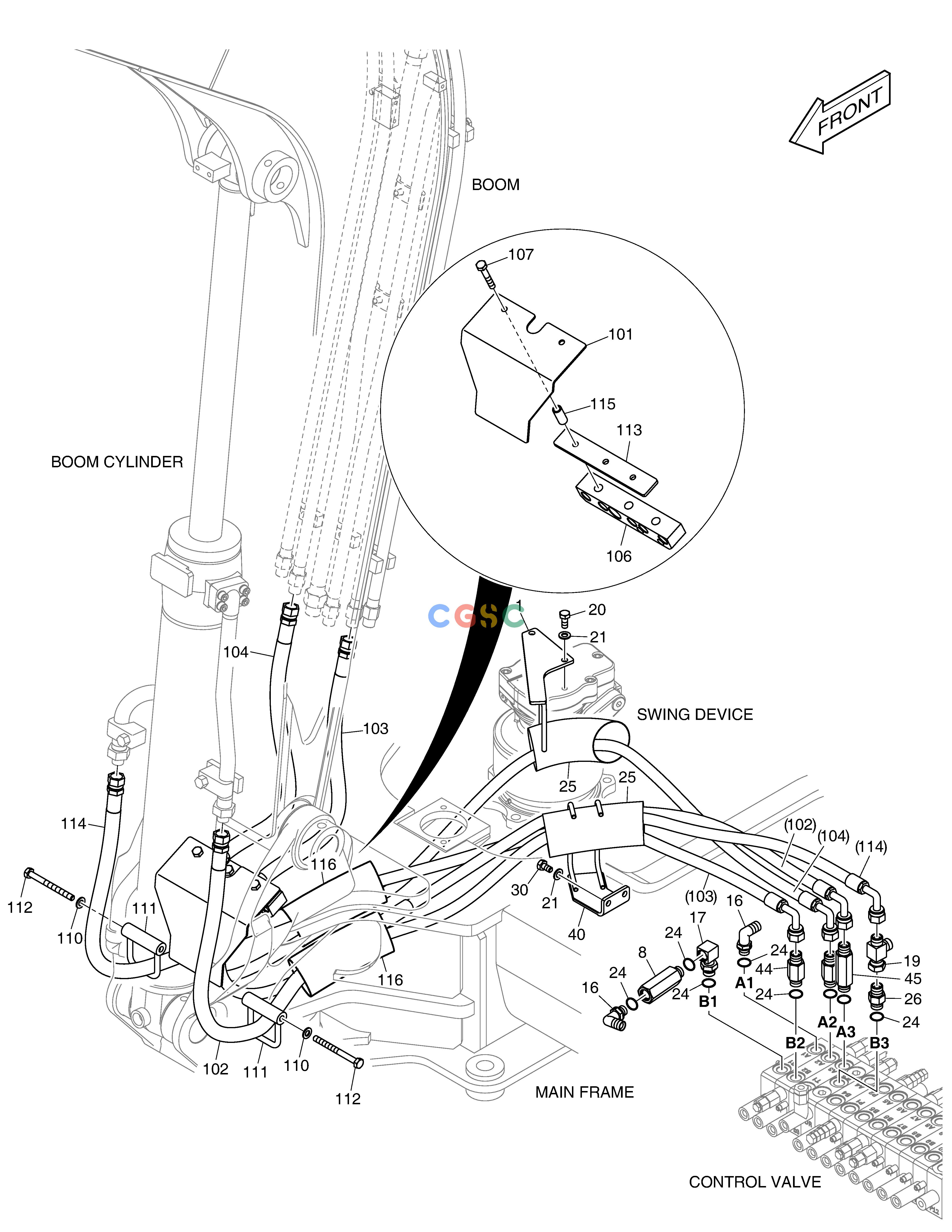

斗山零件查询MAIN PIPING(3) - BOOM / ARM E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09715
|
[-] |
|
|
| 1. |
110446-00213
|
[1] |
|
|
| 101. |
250107-00473E-L
|
[1] |
|
|
| 102. |
DS20551481
|
[1] |
|
|
| 103. |
DS20551500
|
[1] |
|
|
| 104. |
DS20551487
|
[1] |
|
|
| 106. |
120202-00348A
|
[1] |
|
|
| 107. |
S0558866
|
[3] |
BOLT
|
|
| 110. |
120804-00076
|
[2] |
WASHER
|
|
| 111. |
120203-00610
|
[2] |
|
|
| 112. |
S0559766
|
[2] |
|
|
| 113. |
250107-00519A-L
|
[1] |
|
|
| 114. |
DS20551481
|
[1] |
|
|
| 115. |
DS5201104
|
[3] |
|
|
| 116. |
K1038231
|
[2] |
PROTECTOR
|
|
| 16. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 17. |
2181-2295D15
|
[1] |
ELBOW
|
|
| 19. |
181-00837D5
|
[1] |
TEE;UNION
|
|
| 20. |
S0512066
|
[2] |
. BOLT
|
|
| 21. |
120804-00076
|
[4] |
WASHER
|
|
| 24. |
S8000181
|
[8] |
O-RING
|
|
| 25. |
K1038231
|
[2] |
PROTECTOR
|
|
| 26. |
2181-1126D131
|
[1] |
ADAPTER PFO1/2,M16X1.5
|
|
| 30. |
S0511866
|
[2] |
BOLT
|
|
| 40. |
110446-00263B
|
[1] |
|
|
| 44. |
DS2213173
|
[2] |
ADAPTER
|
|
| 45. |
DS2213183
|
[1] |
ADAPTER
|
|
| 8. |
K1057312
|
[1] |
VALVE,CHECK
|
|
