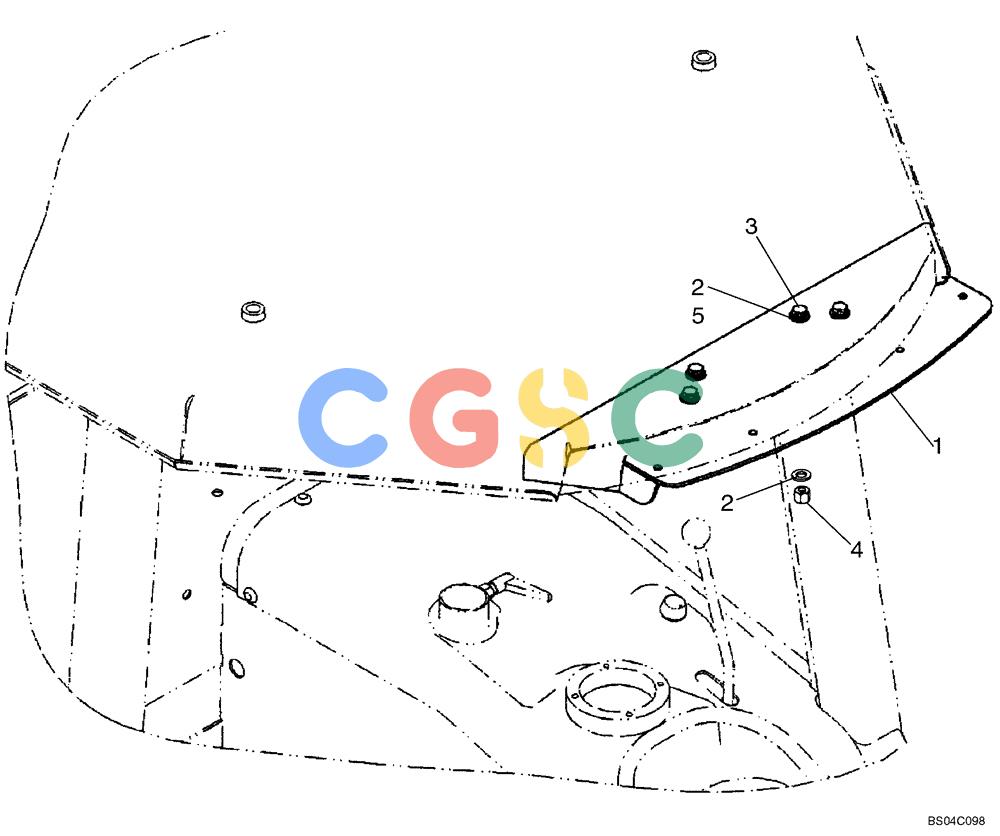

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-25) - CAB OR CANOPY - LAMP MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87434754 | [1] | COVER PLATE | BURLamp Mounting |
| 2. | 895-15010 | [8] | WASHER,M11 x 24 x 2 | CASUsed on Cab Units Only Superseded by part number: 86625253 |
| 3. | 614-10025 | [4] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8 | CAS Superseded by part number: 11106231 |
| 4. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CASUsed on Cab Units Only Superseded by part number: 190003888452 |
| 5. | 892-10010 | [4] | LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk | CASUsed on ROPS Units Only |
