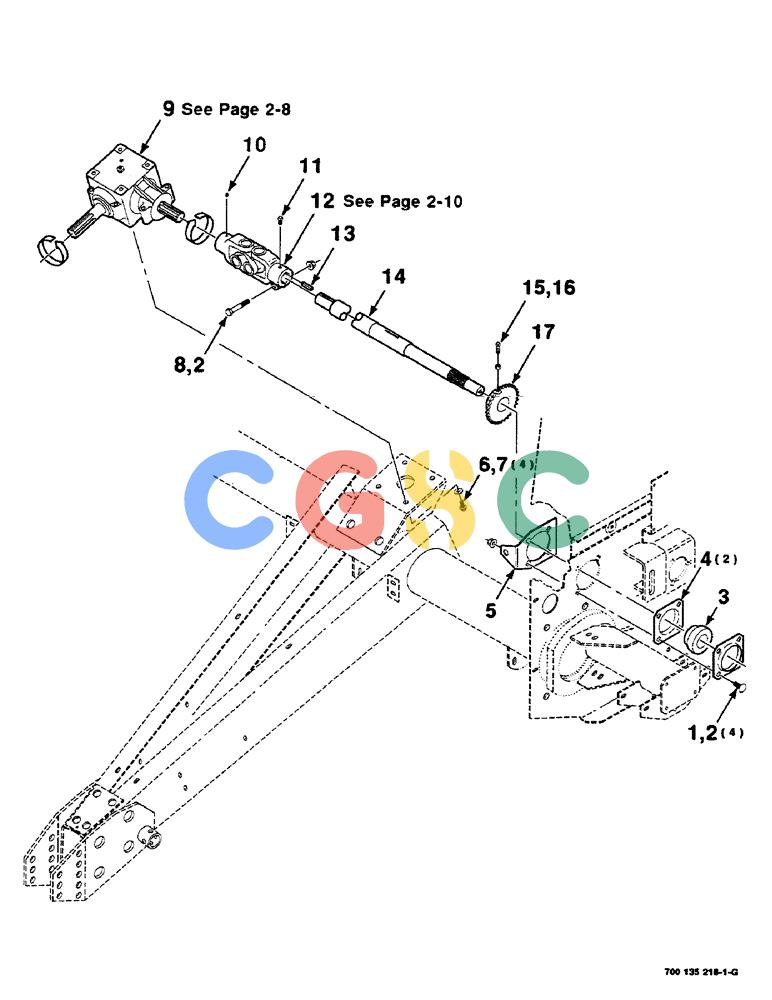

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (2-06) - MAIN DRIVE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
68619
|
[4] |
BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 2. |
704742
|
[5] |
ROD
|
NNA
1/2-13 HFTLN GR/G Superseded by part number: 231-5348, 231-5348, 86516877
|
| 3. |
51318
|
[1] |
BEARING
|
IH
BEARING - sphercial Superseded by part number: 668718R92, 47577169
|
| 4. |
700716123
|
[2] |
FLANGE
|
CAS
BEARING - flange Superseded by part number: 76079C1
|
| 5. |
700151463
|
[1] |
SUPPORT
|
HFI
|
| 6. |
700710984
|
[4] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
1/2-13 X 1-1/4 HFS GR8
|
| 7. |
700711557
|
[4] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 8. |
7702038
|
[1] |
SCREW,Hex, 1/2" - 13 x 3", Gr 5
|
CAS
1/2-13 X 3 C Superseded by part number: 87339
|
| 9. |
700717910
|
[1] |
GEARBOX ASSY
|
CAS
GEARBOX ASSEMBLY Superseded by part number: 700725114
|
| 10. |
77016
|
[1] |
LUBE NIPPLE
|
IH
1/4-28 ZERK Superseded by part number: 87414
|
| 11. |
69203
|
[1] |
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
|
CAS
3/8-16 X 3/4 CPSQHSS Superseded by part number: 87616
|
| 12. |
700718371
|
[1] |
YOKE
|
CAS
U-JOINT ASSEMBLY - double Superseded by part number: 700723985
|
| 13. |
6872915
|
[1] |
KEY
|
CAS
5/16 X 1-1/2 KEY Superseded by part number: Q1443
|
| 14. |
700150007
|
[1] |
SHAFT
|
HFI
- drive
|
| 15. |
69211
|
[1] |
SET SCREW,Sq Hd, 3/8"-16 x 1"
|
CAS
3/8-16 X 1 CPSQHSS NP Superseded by part number: 84983
|
| 16. |
704023
|
[1] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| 17. |
700151466
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 30 tooth
|
