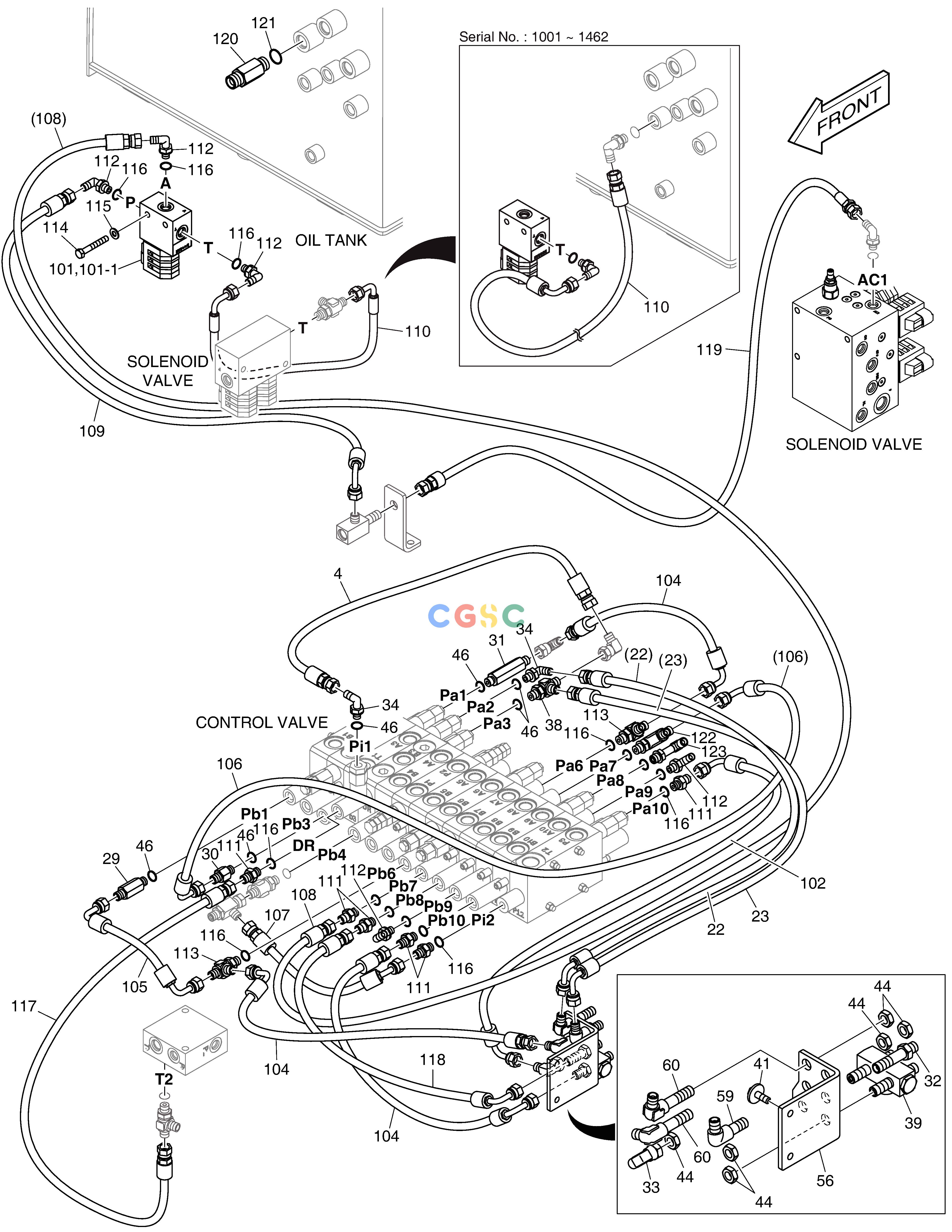

斗山零件查询PILOT PIPING(2) - BOOM E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09579
|
[-] |
|
|
| 101. |
410135-00666C
|
[1] |
|
|
| 101-1. |
300715-00101
|
[1] |
|
|
| 102. |
DS2091281
|
[1] |
|
|
| 104. |
DS2093070
|
[3] |
HOSE
|
|
| 105. |
DS2091114
|
[1] |
HOSE PF1/4-280L
|
|
| 106. |
DS2091339
|
[1] |
|
|
| 107. |
DS2092046
|
[1] |
HOSE
|
|
| 108. |
DS2094148
|
[1] |
HOSE
|
|
| 109. |
DS2093043
|
[1] |
HOSE
|
|
| 110. |
DS2091208
|
[1] |
|
|
| 110. |
DS2093598
|
[1] |
HOSE
|
|
| 111. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 112. |
2181-1702D4
|
[5] |
ELBOW
|
|
| 113. |
2181-1951D1
|
[2] |
TEE
|
|
| 114. |
S0556466
|
[2] |
BOLT
|
|
| 115. |
S5000516
|
[2] |
|
|
| 116. |
S8000111
|
[15] |
O-RING
|
|
| 117. |
DS2094060
|
[1] |
HOSE
|
|
| 118. |
DS2093543
|
[1] |
HOSE
|
|
| 119. |
DS2094320
|
[1] |
HOSE
|
|
| 120. |
DS2213174
|
[1] |
ADAPTER
|
|
| 121. |
S8000181
|
[1] |
O-RING
|
|
| 122. |
DS2371083
|
[1] |
|
|
| 123. |
DS2281082
|
[1] |
ELBOW
|
|
| 22. |
DS2093096
|
[1] |
HOSE
|
|
| 23. |
DS2093183
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 29. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 30. |
2181-1126D38
|
[1] |
ADAPTER
|
|
| 31. |
2181-1126D98
|
[1] |
ADAPTER
|
|
| 32. |
DS2204009
|
[1] |
|
|
| 33. |
181-00709
|
[1] |
ELBOW;UNION
|
|
| 34. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 38. |
2181-1951D1
|
[1] |
TEE
|
|
| 39. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 4. |
DS2094224
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 41. |
DS0025061
|
[2] |
|
|
| 44. |
121-00010D7
|
[6] |
NUT
|
|
| 46. |
S8000111
|
[6] |
O-RING
|
|
| 56. |
110433-00354
|
[1] |
|
|
| 59. |
DS2456005
|
[1] |
|
|
| 60. |
DS2456008
|
[2] |
|
|
