沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Steering SystemPower Steering Pump Kit, Later ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
281 次

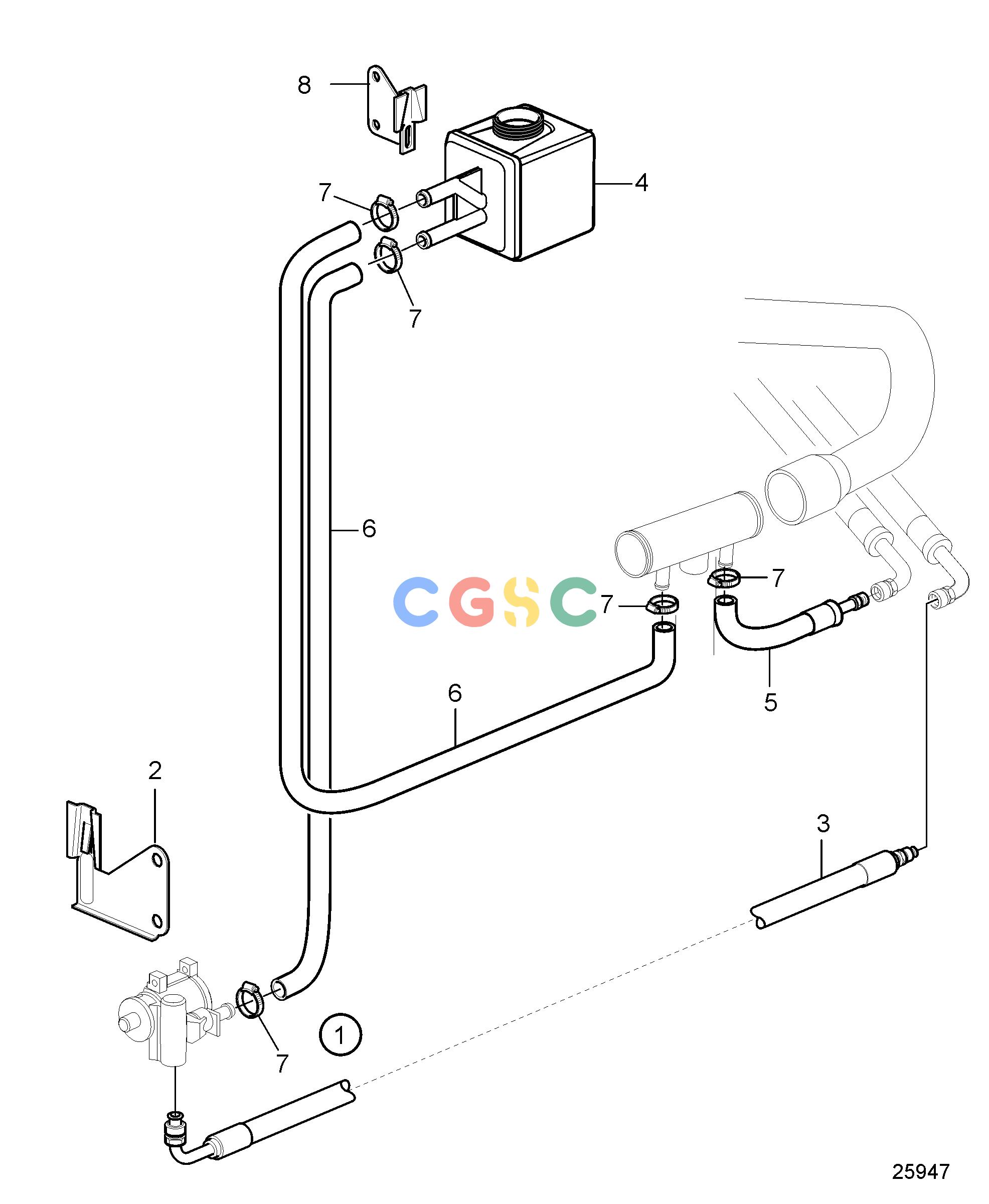

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
856768
|
[1] |
Bracket
|
|
| 3. |
21287109
|
[1] |
Hydraulic hose
|
|
| 3. |
21503249
|
[1] |
Hydraulic hose
|
For jackshaft
|
| 4. |
3885918
|
[1] |
Reservoir
|
|
| 5. |
3808486
|
[1] |
Hydraulic hose
|
|
| 6. |
941995
|
[1] |
Hose
|
L=2,5m
|
| 7. |
961664
|
[3] |
Hose clamp
|
|
| 7. |
961666
|
[2] |
Hose clamp
|
|
| 8. |
856768
|
[1] |
Bracket
|
|
