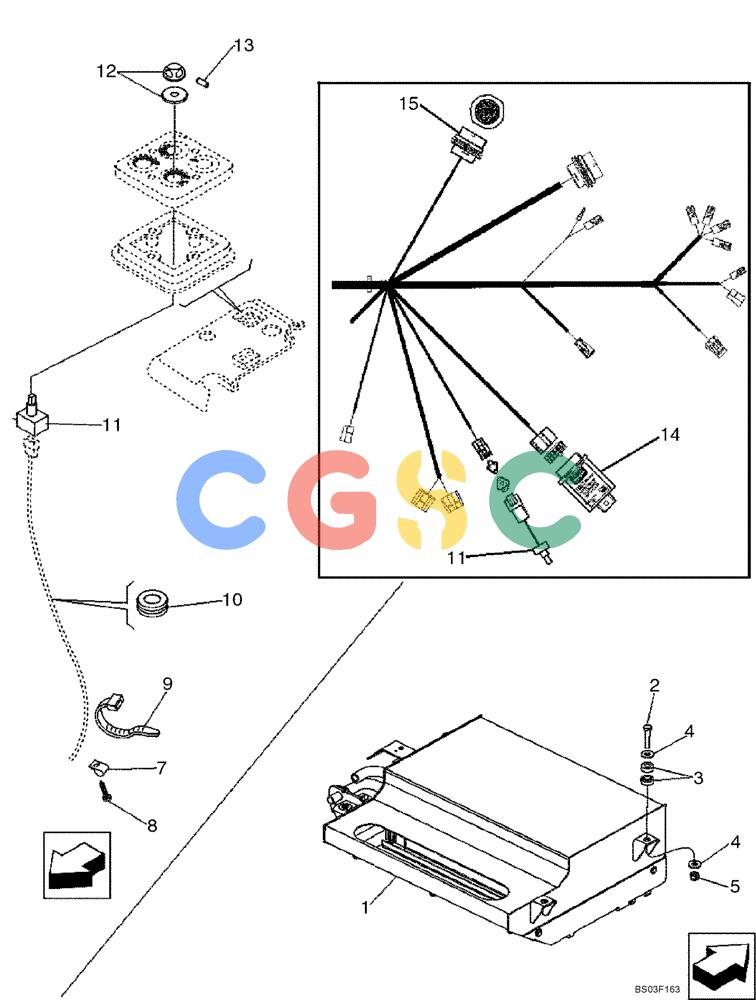

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-37) - CAB - HEATER AND CONTROLS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400678 | [1] | HEATER ASSY. | BURIncludes Blower; See Figure 09-38 |
| 2. | 16040824 | [4] | SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | BURM10 x 40 Superseded by part number: 16040821 |
| 3. | 76067945 | [8] | PAD | LECMount |
| 4. | 76067743 | [4] | WASHER,M10 | LEC |
| 5. | 12577211 | [4] | LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND | TTF Superseded by part number: 17152921 |
| 6. | 76067770 | [4] | SPACER | LECNot Illustrated |
| 7. | 71485276 | [1] | SPRING NUT | LECNut |
| 8. | 15688001 | [1] | SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm | JES |
| 9. | 71404503 | [2] | HOSE CLAMP,69.6mm - 77mm | LEC |
| 10. | 76045509 | [2] | GROMMET | LECGrommet |
| 11. | 87423841 | [1] | POTENTIOMETER | BURHeat Temperature Switch, Integral Part of 87410122 Cab Main Harness |
| 12. | 76043653 | [1] | KNOB | LECHeat Temperature |
| 13. | 13795820 | [1] | INSERT | BURM4 x 14 Dowel Pin |
| 14. | 87423844 | [1] | CONTROL UNIT | BURCONTROL MODULE; Water; Integral Part of 87410122 Cab Main Harness Superseded by part number: 87596035 |
| 15. | 87423857 | [1] | CONNECTOR,ELECTRIC | BURIntegral Part of 87410122 Cab Main Harness |
