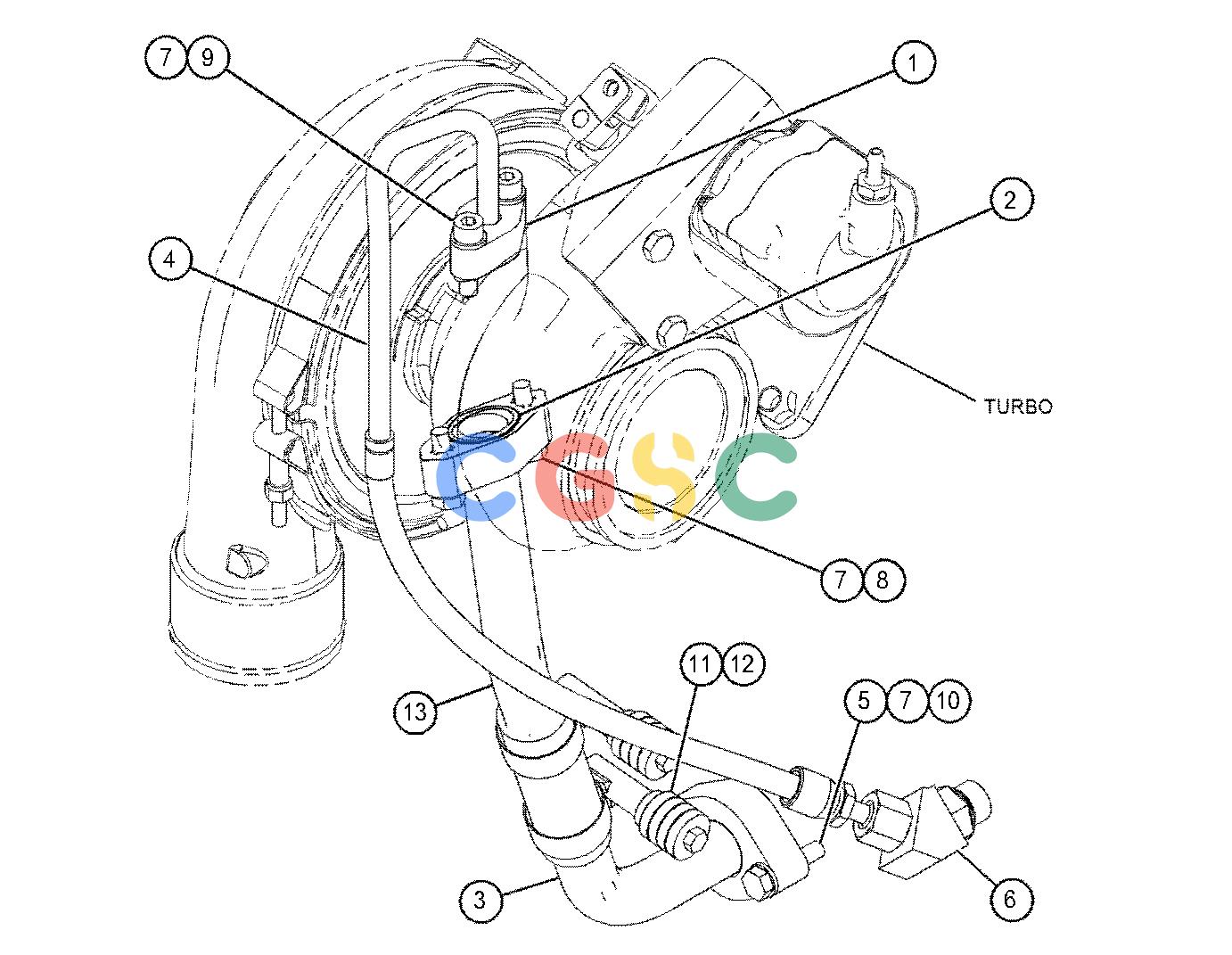

卡特零件查询（725C2） 353-4607: LINES GP-TURBOCHARGER OIL
广数供应链运营团队, 15 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-8418 | [1] | GASKET | |
| 2. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 3. | 464-0450C | [1] | TUBE AS-OIL | |
| 4. | 457-5110 | [1] | HOSE & TUBE AS | |
| 5. | 210-9246 | [1] | SEAL-O-RING | |
| 6. | 319-6224 | [1] | ELBOW AS | |
| | 6V-9876 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 7. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 9. | 6V-5192M | [2] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 10. | 6V-5218M | [2] | BOLT(M8X1.25X35-MM) | |
| 11. | 284-3502C | [2] | CLAMP-BAND | |
| 12. | 462-7085C | [1] | HOSE | |
| 13. | 464-0449C | [1] | TUBE AS-OIL | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
