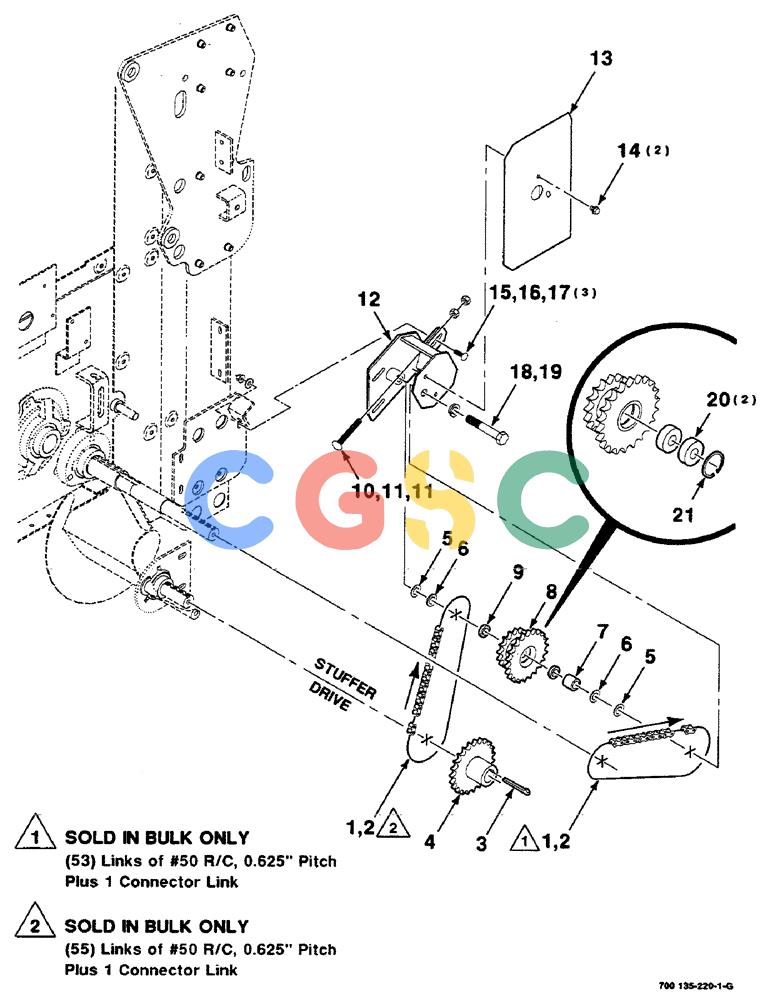

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (2-24) - STUFFER DRIVE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7086002
|
[2] |
CHAIN (AG)
|
CAS
CHAIN - roller, #60 (10 Foot Bulk) Superseded by part number: 611362R91X, 241-1316
|
| 2. |
700710981
|
[2] |
LINK
|
CAS
- connector, #60 R/C Superseded by part number: 241-1316
|
| 3. |
861468
|
[1] |
KEY
|
HFI
5/16 X 2-3/4 GIB KEY
|
| 4. |
700135575
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 23 tooth
|
| 5. |
052761
|
[2] |
3/4 X 14 GAUGE NRMB
|
|
| 6. |
852087
|
[2] |
BUSHING
|
HFI
3/4 X 10 GAUGE NRMB Superseded by part number: 95-81051
|
| 7. |
700105787
|
[1] |
SPACER
|
HFI
|
| 8. |
700135570
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET ASSEMBLY (Includes items 20 and 21)
|
| 9. |
700135550
|
[1] |
SPACER
|
HFI
|
| 10. |
7770787
|
[1] |
FITTING,Sq Nk, 1/2" - 13 x 4", Gr 5, Full Thd
|
CAS
1/2-13 X 4 FTRHSNB
|
| 11. |
704031
|
[2] |
NUT
|
NNA
1/2-13 H Superseded by part number: 425-108, 425-108, NLS
|
| 12. |
700135564
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING WA
|
| 13. |
700135944
|
[1] |
SHIELD
|
HFI
|
| 14. |
7883366
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 1/2"
|
CAS
3/8-16 X 1/2 HWHMS
|
| 15. |
700054
|
[3] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
3/8-16 X 1-1/4 RHSNB Superseded by part number: 86508773
|
| 16. |
705533
|
[3] |
WASHER
|
NNA
3/8 HARDENED PLAIN WASHER Superseded by part number: 496-11041, 496-11041, 80702
|
| 17. |
704734
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 18. |
7701527
|
[1] |
SCREW,Hex, 3/4" - 10 x 4 1/2", Gr 5
|
L
3/4-10 X 4-1/2 C Superseded by part number: 88007
|
| 19. |
705111
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 20. |
712604
|
[2] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
BEARING Superseded by part number: 87029275
|
| 21. |
740712
|
[1] |
OIL SEAL
|
CAS
RING - retaining Superseded by part number: 66967
|
