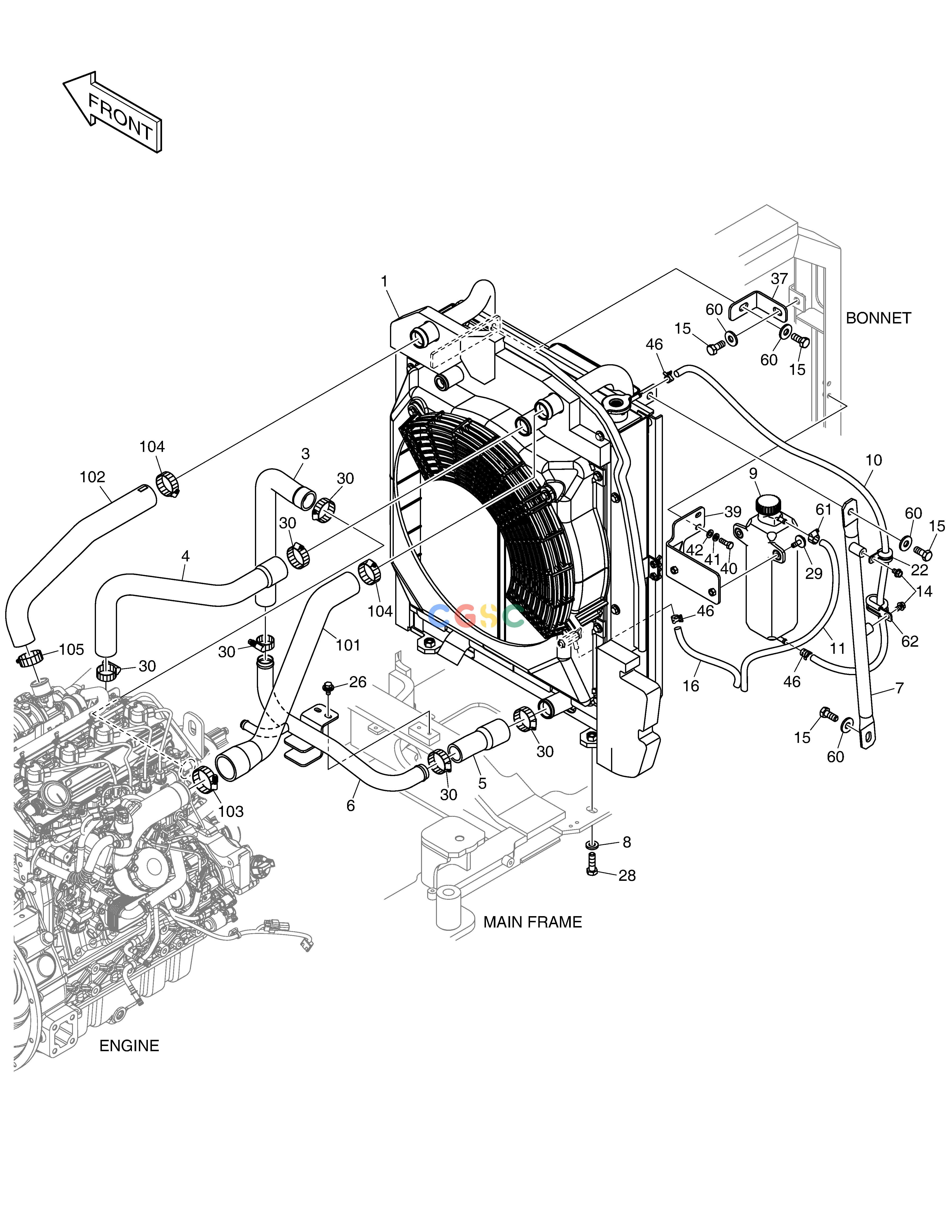

斗山零件查询RADIATOR MOUNTING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-01613
|
[1] |
|
|
| 1. |
440211-00508K
|
[1] |
|
440211-00508L
|
| 1. |
440211-00508L
|
[1] |
|
|
| 10. |
DS2160002
|
[1] |
HOSE
|
|
| 101. |
420101-01320B
|
[1] |
|
420101-01320C
|
| 101. |
420101-01320C
|
[1] |
|
|
| 102. |
420101-00837H
|
[1] |
|
420101-00837K
|
| 102. |
420101-00837K
|
[1] |
|
|
| 103. |
S8500079
|
[1] |
CLAMP
|
|
| 104. |
S8500067
|
[2] |
CLAMP
|
|
| 105. |
S8500054
|
[1] |
CLAMP
|
|
| 11. |
DS2160015
|
[1] |
HOSE ASSY,WATER
|
|
| 14. |
K1001029
|
[2] |
BOLT
|
|
| 15. |
S0515266
|
[4] |
BOLT
|
|
| 16. |
DS2160009
|
[1] |
|
|
| 22. |
124-00208D2
|
[1] |
CLAMP
|
|
| 26. |
DS0025054
|
[2] |
BOLT M8x1.25x20
|
|
| 28. |
S0515466
|
[4] |
BOLT
|
|
| 29. |
DS0025061
|
[2] |
|
|
| 3. |
420109-00536A
|
[1] |
|
|
| 30. |
S8500054
|
[6] |
CLAMP
|
|
| 37. |
250107-00379E-L
|
[1] |
|
|
| 39. |
250107-00377C-L
|
[1] |
|
|
| 4. |
420109-00537G
|
[1] |
|
|
| 40. |
S0509066
|
[2] |
BOLT
|
|
| 41. |
S5102503
|
[2] |
. WASHER
|
|
| 42. |
S5010513
|
[2] |
WASHER
|
|
| 46. |
DS2809001
|
[3] |
CLIP
|
|
| 5. |
420109-00539G
|
[1] |
|
|
| 6. |
420211-00412H
|
[1] |
|
|
| 60. |
120804-00079
|
[4] |
WASHER
|
|
| 61. |
S8470020
|
[1] |
CLAMP
|
|
| 62. |
124-00209D1
|
[1] |
CLIP
|
|
| 7. |
101582-00548B-L
|
[1] |
|
|
| 8. |
4114-1792A
|
[4] |
WASHER
|
|
| 9. |
450107-00016
|
[1] |
TANK,RESERVE
|
|
