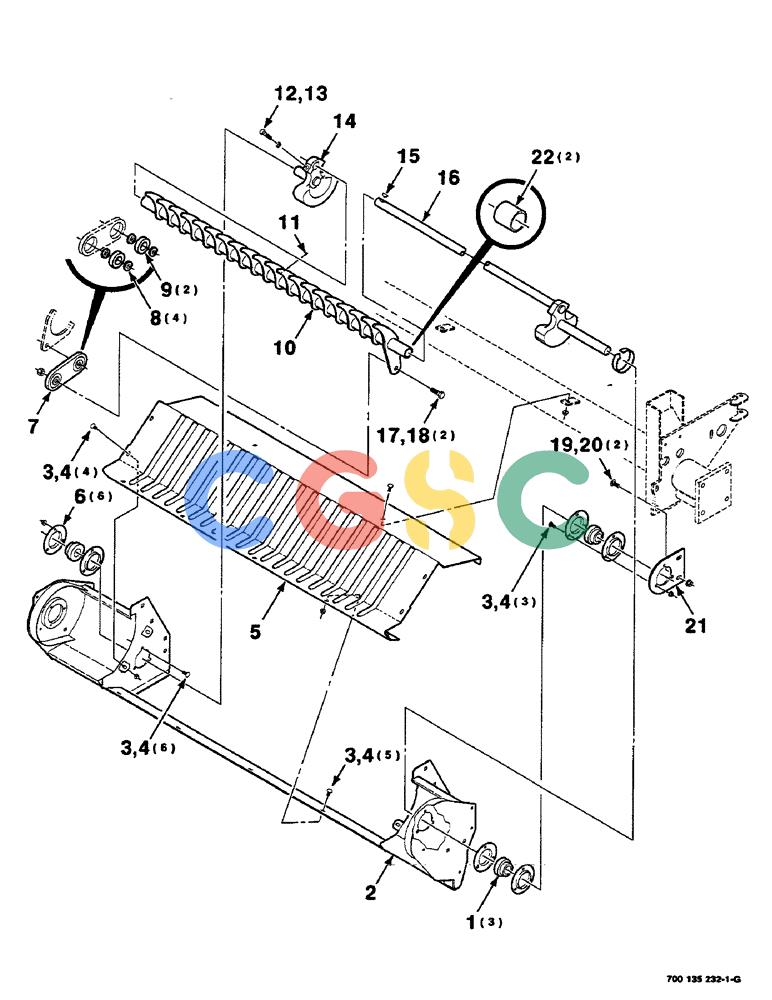

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (2-30) - STUFFER FRAME, AND SUPPORT ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708091
|
[3] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 2. |
700135712
|
[1] |
FRAME
|
HFI
WA - stuffer
|
| 3. |
700047
|
[18] |
BOLT
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 4. |
704734
|
[18] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
700135710
|
[1] |
GRATE
|
HFI
|
| 6. |
051417
|
[6] |
FLANGE
|
|
| 7. |
700132212
|
[1] |
LINK
|
HFI
ASSEMBLY (Includes items 8 and 9)
|
| 8. |
700124038
|
[4] |
BUSHING,16.27mm ID x 34.92mm OD x 10mm L
|
CAS
- bearing
|
| 9. |
050179
|
[2] |
BEARING - cylindrical
|
|
| 10. |
700135732
|
[1] |
SHAFT ASSY.
|
HFI
STUFFER WA Superseded by part number: 700155676
|
| 11. |
077032
|
[1] |
1/4-28 ZERK
|
|
| 12. |
703983
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
|
CAS
1/2-13 X 1-3/4 C
|
| 13. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 14. |
700132088
|
[1] |
CRANK
|
HFI
WA - idler, right
|
| 15. |
061283
|
[1] |
1 X 1/4 KEY - Woodruff
|
|
| 16. |
700135729
|
[1] |
CRANK
|
HFI
WA - drive, left Superseded by part number: 700155672
|
| 17. |
7701949
|
[2] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
5/8-11 X 2 C Superseded by part number: 86505999
|
| 18. |
704924
|
[2] |
NUT
|
CAS
5/8-11 HTLN GR/B Superseded by part number: 85700693
|
| 19. |
068619
|
[2] |
1/2-13 X 1-1/4 RHSNB
|
|
| 20. |
704742
|
[2] |
ROD
|
NNA
1/2-13 HFTLN GR/G Superseded by part number: 231-5348, 231-5348, 86516877
|
| 21. |
700135946
|
[1] |
PLATE
|
HFI
Superseded by part number: 700155699
|
| 22. |
740514
|
[2] |
BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L
|
L
- bronze
|
