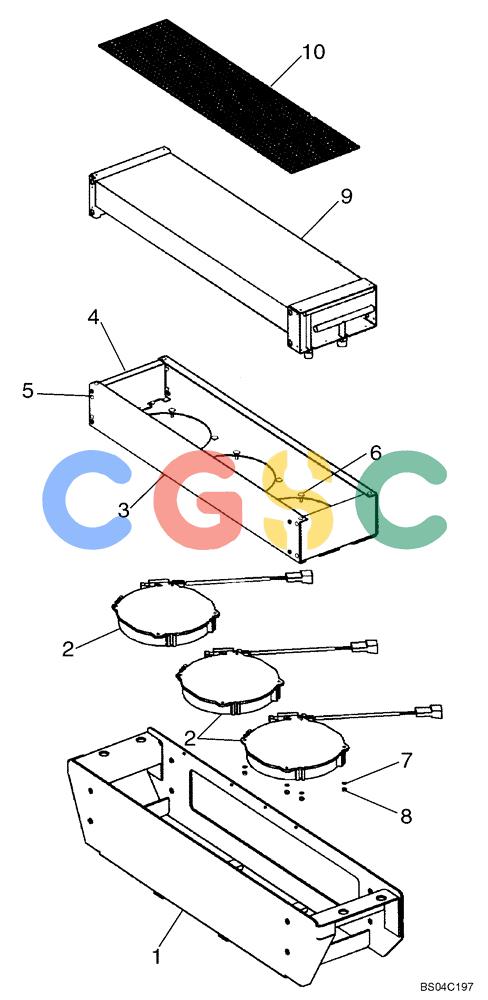

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-42) - CAB - AIR CONDITIONING CONDENSER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87400724 | [1] | CONDENSER | BURIncl. 1 - 10 Superseded by part number: 87441903, 87441905, 76076695, 87543791, 71485253, 86639241, 14496304 |
| 1. | 76076695 | [1] | SUPPORT | LEC |
| 2. | 87400725 | [3] | FAN | BUR12 V Superseded by part number: 87543791 |
| . . | 87543791R | [3] | REMAN-BLOWER | BURDC75 (8/04-), Reman for New PN 87400725 |
| . . | 87543791C | [1] | CORE-BLOWER | BURReturn Number |
| 3. | 87441902 | [1] | SHROUD | BURFan |
| 4. | 87441903 | [2] | END | CASFan Shroud |
| 5. | 71485253 | [16] | RIVET | LEC |
| 6. | 13000790 | [12] | HOSE CLAMP,40mm - 60mm, Worm Gear | TTF Superseded by part number: 86050202 |
| 7. | 14496304 | [12] | WASHER | BUR |
| 9. | 87441905 | [1] | CONDENSER | CAS |
| 10. | 87441906 | [1] | SCREEN | CAS |
| 8. | 86639241 | [12] | NUT,M5 x .8, Cl 8 | FAR |
