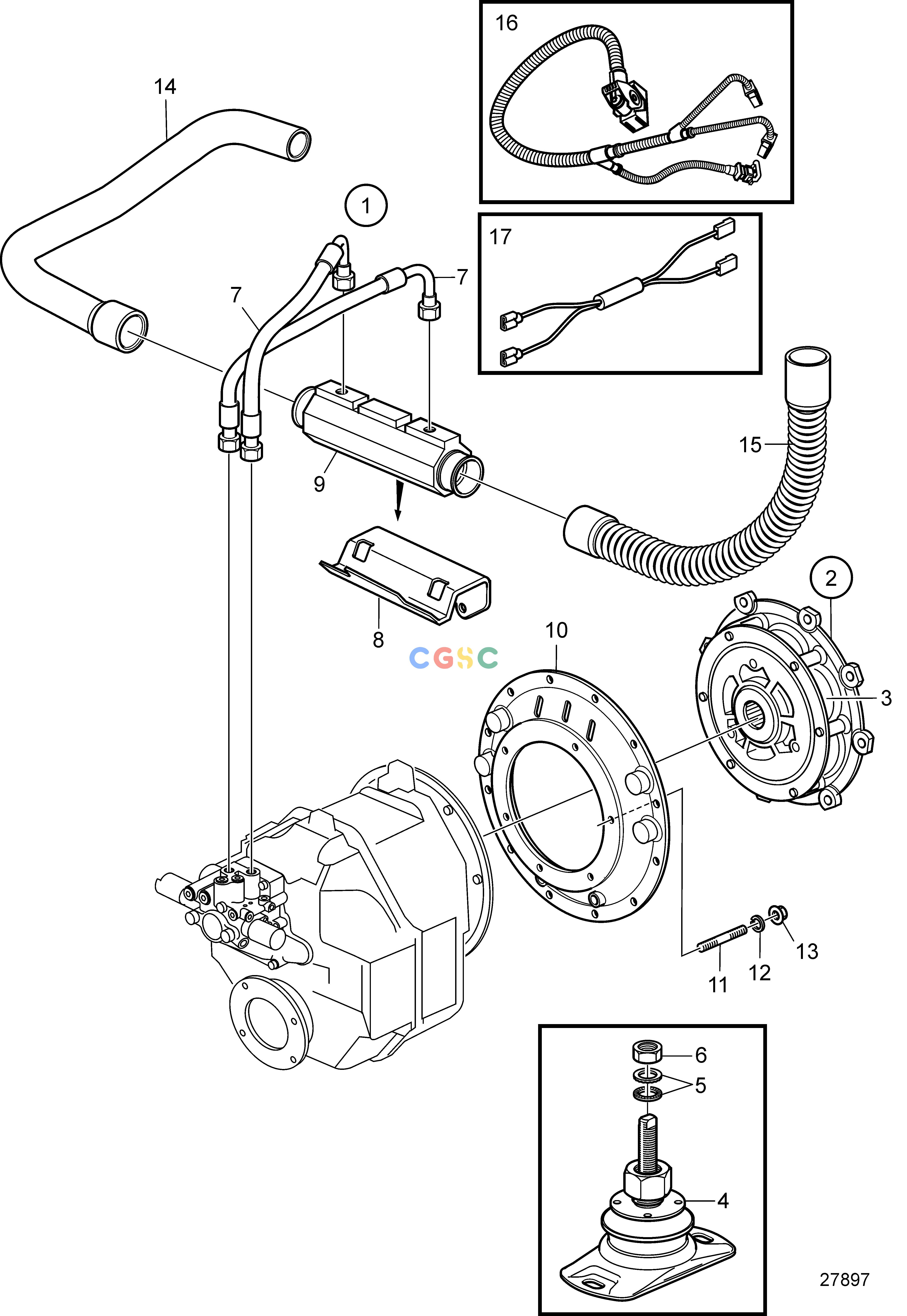

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-TransmissionsConnecting Kit Reverse Gear HS63AEEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21111688
|
[1] |
Flexible coupling
|
|
| 3. |
21509613
|
[1] |
Roller kit
|
Kit include 4pcs rubber rollers
|
| 4. |
21203504
|
[2] |
Rubber cushion
|
|
| 5. |
847766
|
[1] |
Lock washer
|
|
| 6. |
955786
|
[1] |
Hexagon nut
|
|
| 7. |
3584428
|
[2] |
Hose
|
|
| 8. |
3584475
|
[1] |
Bracket
|
|
| 9. |
3584435
|
[1] |
Oil cooler
|
|
| 10. |
21328162
|
[1] |
Adapter
|
Included in reverse gear
|
| 11. |
22736345
|
[6] |
Stud
|
|
| 12. |
942336
|
[6] |
Spring washer
|
|
| 13. |
971071
|
[6] |
Hexagon nut
|
|
| 14. |
3583845
|
[1] |
Hose
|
|
| 15. |
3588788
|
[1] |
Hose
|
|
| 16. |
40005753
|
[1] |
Wiring harness
|
|
| 16. |
3883882
|
[1] |
Wiring harness
|
For earlier version.
|
| 17. |
22310813
|
[1] |
Resistor
|
24V, Service solution.
|
