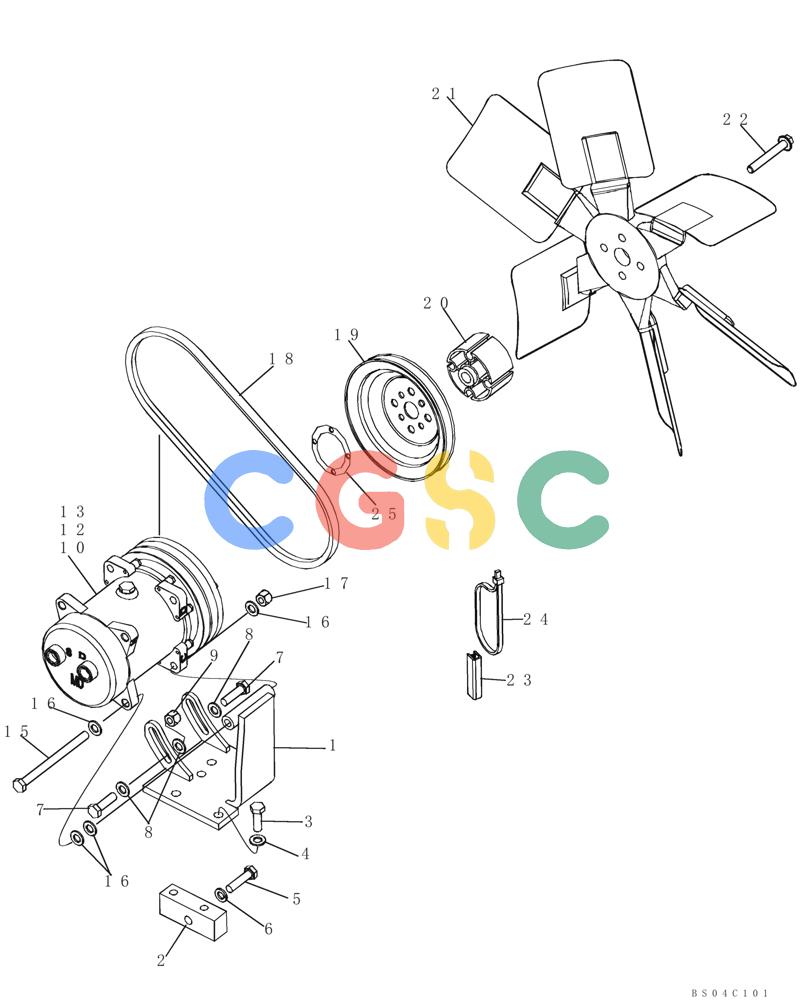

| 1. | 87448032 | [1] | SUPPORT | BUR |
| 2. | 87453233 | [1] | SUPPORT | CAS |
| 3. | 627-10030 | [5] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 4. | 140028 | [5] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 5. | 827-10040 | [1] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43248 |
| 7. | 627-10035 | [2] | BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86624978 |
| 8. | 895-11010 | [4] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS11 x 21 x 2 mm Superseded by part number: 14496621 |
| 9. | 832-10410 | [2] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 10. | 1999755C3 | [1] | COMPRESSOR | IHIncl. Ref 11 - 13 Superseded by part number: 86993462 |
| 10. | 1999755C3R | [1] | REMAN-A/C COMPRESSOR | CASInc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant Superseded by part number: 86993462R |
| 10. | 1999755C3C | [1] | CORE-COMPRESSOR | MKTReturn Part Number |
| 10. | 86993462R | [1] | REMAN-COMPRESSOR | MKTDC75 (8/04-); Reman For New P/N 1999755C3 |
| 10. | 86993462C | [1] | CORE-COMPRESSOR | MKTReturn Part Number |
| 11. | 135324A2 | [1] | CLUTCH | CASNot Illustrated |
| 12. | A49667 | [1] | PLUG | CASHex |
| 13. | 128483A1 | [1] | O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro | IH5/16 ID x 1/16 |
| 15. | 827-10130 | [1] | BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9 | CAS Superseded by part number: 84577051 |
| 18. | 87451034 | [1] | V-BELT,12.70 mm W x 1012.80 mm L | CAS |
| 19. | 2853235 | [1] | PULLEY | TORCompressor, Part of Engine Assembly Superseded by part number: 504062671 |
| . . | 16673635 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORReplaces 2852234, 87803136 Superseded by part number: 16978124 |
| . . | 16587125 | [4] | SCREW,M10 | TORM10 x 30; Replaces 2852355 |
| . . | 2852234 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TORNot Illustrated Superseded by part number: 16978124 |
| 20. | 87438720 | [1] | SPACER | CAS |
| 21. | A173557 | [1] | FAN | CAS |
| 22. | 193426A1 | [4] | BOLT | CASFlange, M10 x 70 |
| 23. | 252765A1 | [1] | ORNAMENTAL STRIP | CASTrim, Hose Protection On Engine |
| 24. | L18331 | [1] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 25. | 87442369 | [1] | PULLEY | CASSpacer |
