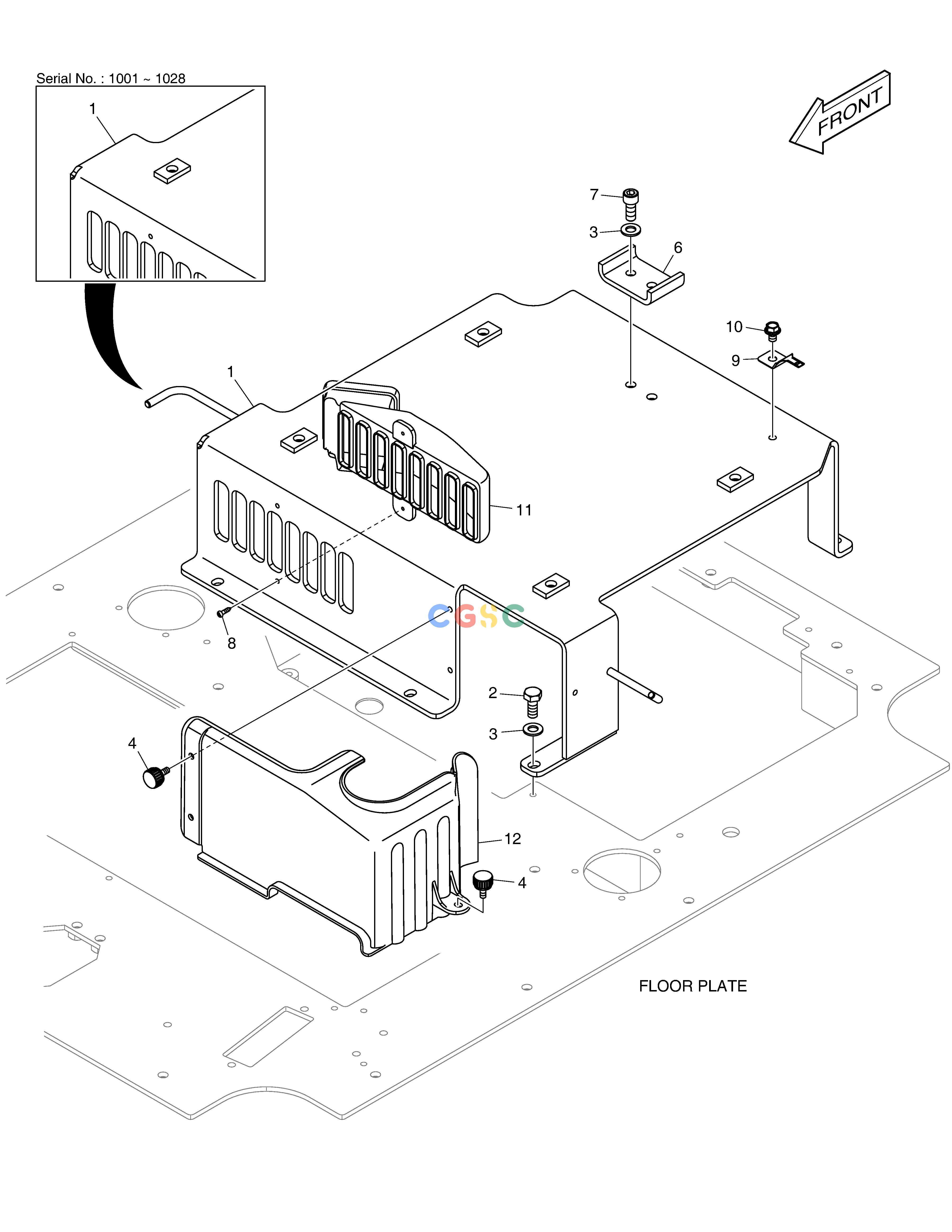

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 160102-00035N | [-] | ||
| -. | 160102-00035M | [-] | ||
| 1. | 160102-00036M | [1] | ||
| 1. | 160102-00036L | [1] | 160102-00036M | |
| 10. | K1001029 | [1] | BOLT | |
| 11. | 460103-00736B | [1] | ||
| 12. | 220204-00327B | [1] | ||
| 2. | 2120-2166D2 | [6] | BOLT | |
| 3. | 2114-1898D15 | [8] | WASHER | |
| 4. | K1033396 | [3] | BOLT | |
| 6. | 110956-00407 | [1] | ||
| 7. | S2212066 | [2] | BOLT | |
| 8. | S3640373 | [2] | ||
| 9. | 2197-1661 | [1] | BRACKET |
