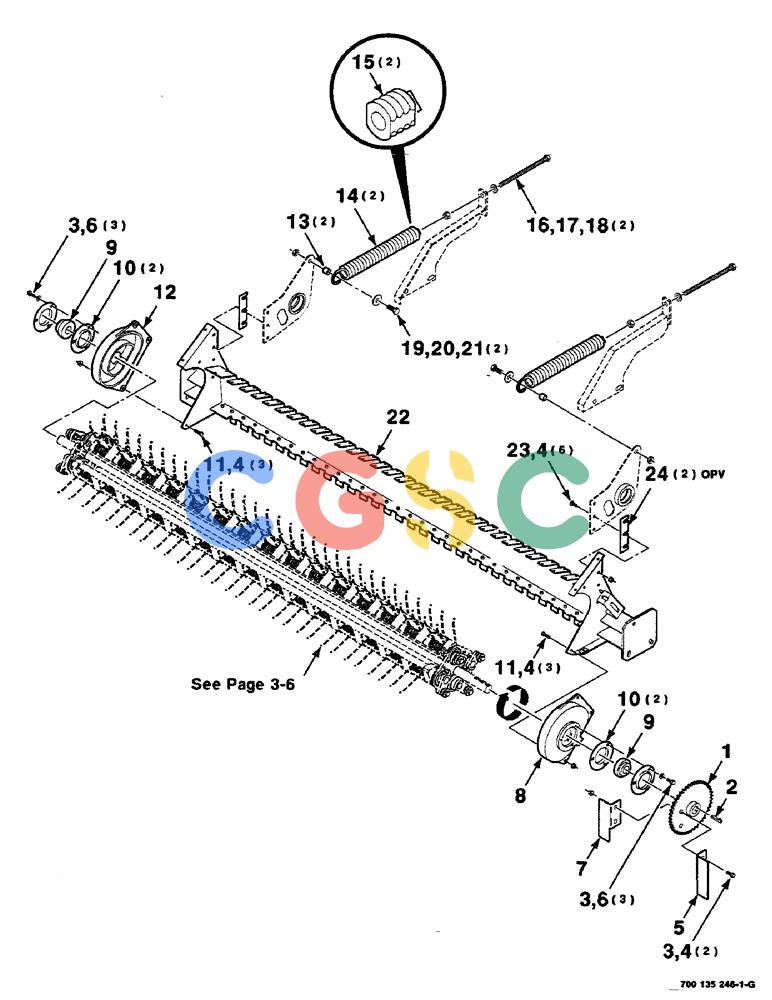

| 1. |
700132129
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 43 tooth Superseded by part number: 700159598
|
| 2. |
Q3929
|
[1] |
KEY,Gib, 5/16" Sq x 1 1/2"
|
IH
5/16 X 1-1/2 KEY - gib
|
| 3. |
121-226
|
[8] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 4. |
232-5316
|
[14] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
700132130
|
[1] |
SLINGER
|
HFI
- outer
|
| 6. |
496-11041
|
[6] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 7. |
700132131
|
[1] |
SLINGER
|
HFI
- inner
|
| 8. |
700137751
|
[1] |
HOUSING ASSY.
|
CAS
CAMTRACK - left
|
| 9. |
700708091
|
[2] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
BEARING - spherical Superseded by part number: 47577188, 47066
|
| 10. |
617863R1
|
[4] |
FLANGED BEARING
|
IH
|
| 11. |
413-620
|
[6] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 12. |
700116125
|
[1] |
HOUSING
|
CAS
CAMTRACK - right
|
| 13. |
159723
|
[2] |
SPACER
|
CAS
|
| 14. |
700150176
|
[2] |
SPRING
|
HFI
ASSEMBLY (Includes item 15)
|
| 15. |
700150150
|
[2] |
PLUG
|
HFI
- spring
|
| 16. |
702282
|
[2] |
BOLT,Hex, 5/8" - 11 x 10", Gr 5
|
CAS
5/8-11 X 10 FTB
|
| 17. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 18. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 19. |
413-1024
|
[2] |
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 88062
|
| 20. |
700711165
|
[2] |
WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk
|
CAS
5/8 HARDENED WIDE PLAIN WASHER
|
| 21. |
425-1410
|
[2] |
JAM NUT,Jam, 5/8"-11, G5
|
CAS
5/8-11 HJN GR2 Superseded by part number: 86632556
|
| 22. |
700135813
|
[1] |
FRAME
|
HFI
WA - pickup
|
| 23. |
434-616
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 24. |
700132128
|
[2] |
SHIM
|
HFI
|
