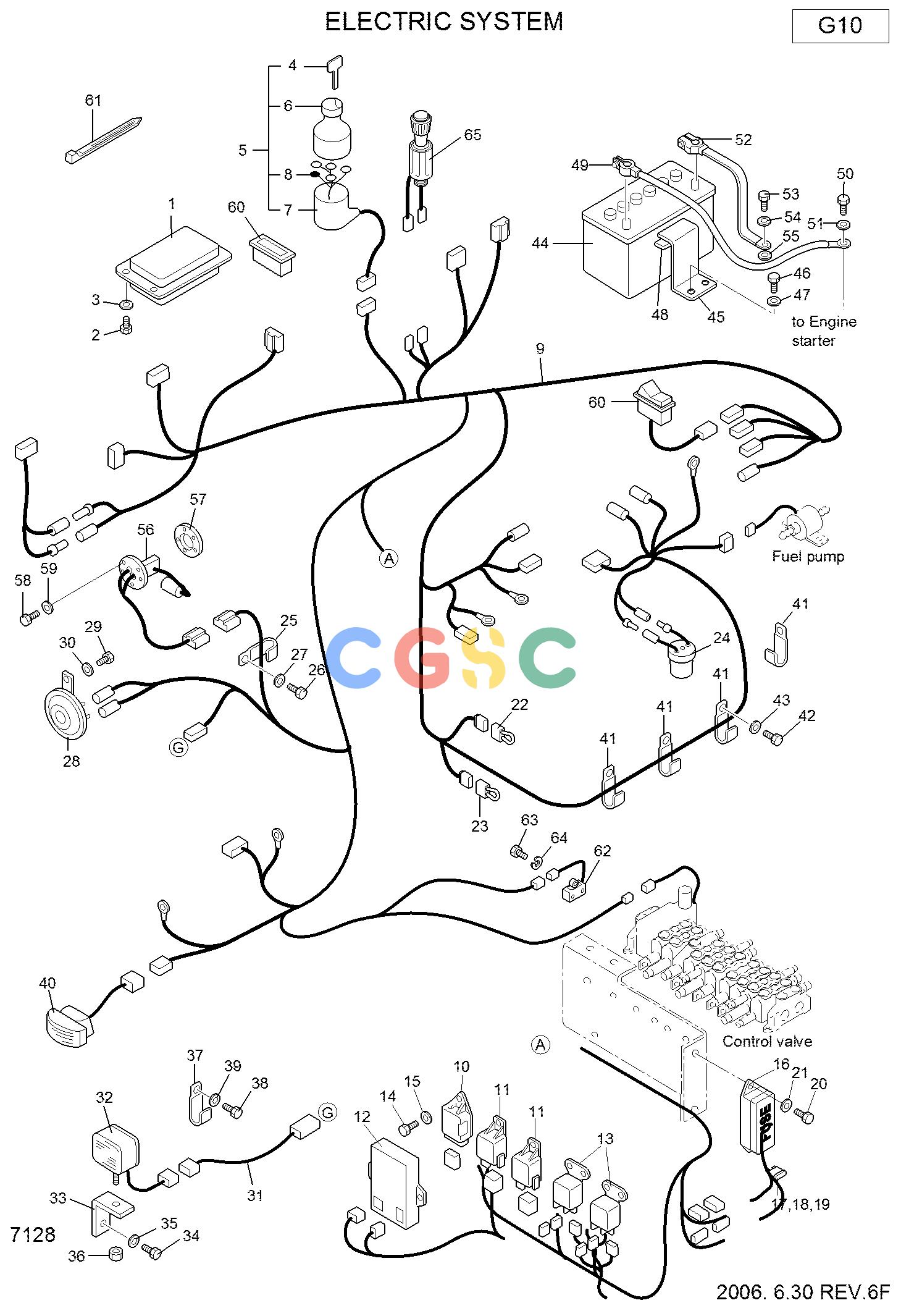

现代零件查询R16-7 ELECTRIC SYSTEMEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02831
|
[1] |
METER UNIT
|
|
| 2. |
XJDH-00213
|
[4] |
SCREW-PANHEAD
|
|
| 3. |
XJDH-00251
|
[4] |
WASHER
|
|
| 4. |
XJDH-02515
|
[1] |
SWITCH-KEY
|
|
| 5. |
XJDH-01009
|
[2] |
KEY
|
|
| 6. |
XJDH-00846
|
[1] |
COVER
|
|
| 7. |
XJDH-04290
|
[1] |
HARNESS-MAIN
|
|
| 7. |
XJDH-04291
|
[1] |
HARNESS-MAIN
|
|
| 8. |
XJDH-01000
|
[2] |
RELAY
|
|
| 9. |
XJDH-01939
|
[2] |
RELAY
|
|
| 10. |
XJDH-03080
|
[1] |
CONTROLLER-GLOW
|
|
| 11. |
XJDH-03081
|
[1] |
TIMER-CONTROL
|
|
| 12. |
XJDH-00019
|
[7] |
BOLT
|
|
| 13. |
XJDH-00274
|
[7] |
WASHER
|
|
| 14. |
XJDH-00999
|
[1] |
BOX-FUSE
|
|
| 15. |
XJDH-00799
|
[1] |
FUSE-3A
|
|
| 16. |
XJDH-00801
|
[7] |
FUSE-10A
|
|
| 17. |
XJDH-00802
|
[5] |
FUSE-15A
|
|
| 18. |
XJDH-00022
|
[2] |
BOLT
|
|
| 19. |
XJDH-00274
|
[2] |
WASHER
|
|
| 20. |
XJDH-01024
|
[1] |
LINK-FUSIBLE
|
|
| 21. |
XJDH-01025
|
[1] |
LINK-FUSIBLE
|
|
| 22. |
XJDH-03030
|
[1] |
INDICATOR-DUST
|
|
| 23. |
XJDH-00993
|
[1] |
CLAMP
|
|
| 24. |
XJDH-00016
|
[1] |
BOLT
|
|
| 25. |
XJDH-00274
|
[1] |
WASHER
|
|
| 26. |
XJDH-01013
|
[1] |
HORN
|
|
| 27. |
XJDH-00032
|
[1] |
BOLT
|
|
| 28. |
XJDH-00276
|
[1] |
WASHER
|
|
| 29. |
XJDH-03198
|
[1] |
HARNESS-LIGHT
|
|
| 30. |
XJDH-01063
|
[1] |
LAMP-WORKING
|
|
| 31. |
XJDH-00809
|
[1] |
BRACKET-LIGHT MOUNT
|
|
| 32. |
XJDH-02886
|
[1] |
BOLT
|
|
| 33. |
XJDH-00280
|
[1] |
WASHER
|
|
| 34. |
XJDH-00169
|
[1] |
NUT
|
|
| 35. |
XJDH-01078
|
[1] |
CLAMP
|
|
| 36. |
XJDH-00032
|
[1] |
BOLT
|
|
| 37. |
XJDH-00276
|
[1] |
WASHER
|
|
| 38. |
XJDH-02840
|
[1] |
LAMP-HEAD
|
|
| 39. |
XJDH-01080
|
[4] |
CLAMP
|
|
| 40. |
XJDH-00032
|
[4] |
BOLT
|
|
| 41. |
XJDH-00276
|
[4] |
WASHER
|
|
| N42. |
XJDH-01069
|
[1] |
BATTERY
|
|
| 43. |
XJDH-01367
|
[1] |
PLATE
|
|
| 44. |
XJDH-01368
|
[2] |
BAR
|
|
| 45. |
XJDH-02893
|
[2] |
NUT-WING
|
|
| 46. |
XJDH-00274
|
[2] |
WASHER
|
|
| 47. |
XJDH-01397
|
[2] |
RUBBER-BATTERY HOLDER
|
|
| 48. |
XJDH-03202
|
[1] |
CORD-BATTERY (+)
|
|
| 49. |
XJDH-02891
|
[1] |
NUT
|
|
| 50. |
XJDH-00276
|
[1] |
WASHER
|
|
| 51. |
XJDH-00997
|
[1] |
CORD-BATTERY (-)
|
|
| 52. |
XJDH-00032
|
[1] |
BOLT
|
|
| 53. |
XJDH-00165
|
[1] |
NUT
|
|
| 54. |
XJDH-00276
|
[2] |
WASHER
|
|
| 55. |
XJDH-00270
|
[1] |
WASHER-TOOTHED
|
|
| 56. |
XJDH-00847
|
[1] |
SWITCH-2SPEED
|
|
| 57. |
XJDH-01188
|
[1] |
SHAFT
|
|
| 58. |
XJDH-00872
|
[1] |
BOOT
|
|
| 59. |
XJDH-01015
|
[1] |
LIGHT SWITCH
|
|
| 60. |
XJDH-02516
|
[1] |
HARNESS-STARTER
|
|
| 61. |
XJDH-00707
|
[1] |
BAND-NYLON
|
|
| 62. |
XJDH-03386
|
[1] |
SWITCH-EX
|
|
| 63. |
XJDH-02838
|
[1] |
LIGHTER-CIGARETTE
|
|
| 64. |
XJDH-03200
|
[1] |
CORD-TUBE
|
|
