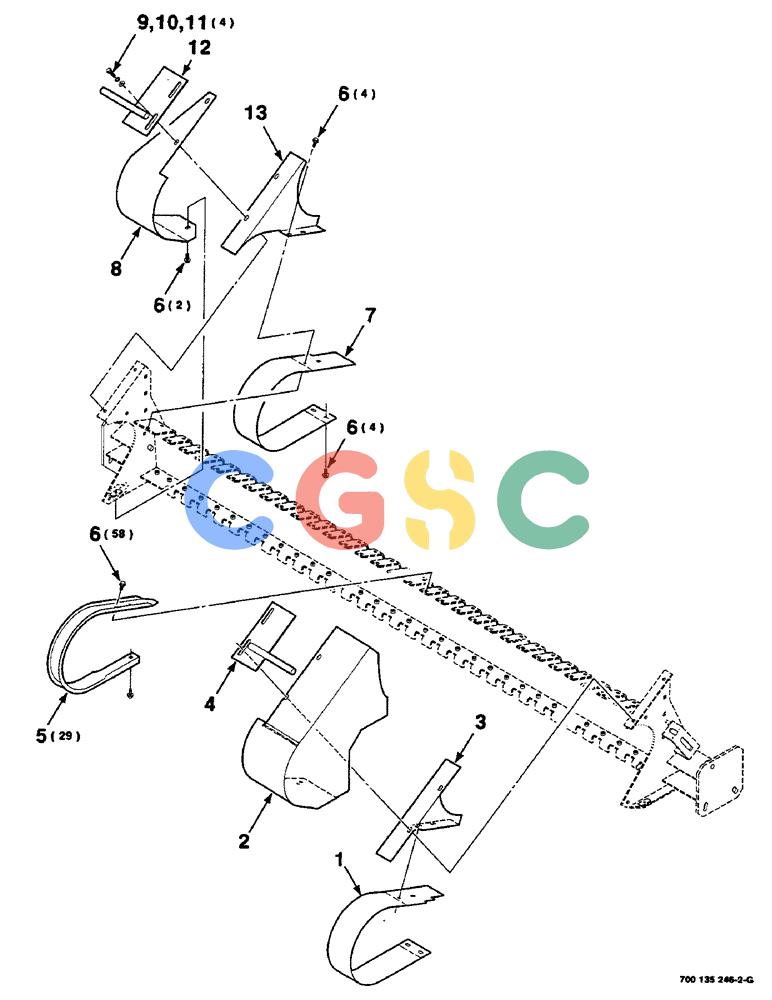

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (3-08) - PICKUP WRAPPER AND SHIELD ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700132114
|
[1] |
SUPPORT
|
HFI
WRAPPER - end, left
|
| 2. |
700150063
|
[1] |
SHIELD
|
HFI
WA - left
|
| 3. |
700147509
|
[1] |
SHIELD
|
HFI
- left
|
| 4. |
700135893
|
[1] |
STOP
|
HFI
WA - windguard, left
|
| 5. |
700132112
|
[29] |
WRAPPER
|
HFI
- tine
|
| 6. |
121-115
|
[68] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 7. |
700132115
|
[1] |
SUPPORT
|
HFI
WRAPPER - end, right
|
| 8. |
700132122
|
[1] |
SHIELD
|
HFI
- right
|
| 9. |
413-516
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
C Hex, 5/16"-18 x 1", G5, Full Thd Superseded by part number: 9635884, 72187198
|
| 10. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 11. |
496-21034
|
[4] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 12. |
700135894
|
[1] |
STOP
|
HFI
WA - windguard, right
|
| 13. |
700150066
|
[1] |
SHIELD
|
HFI
- right
|
