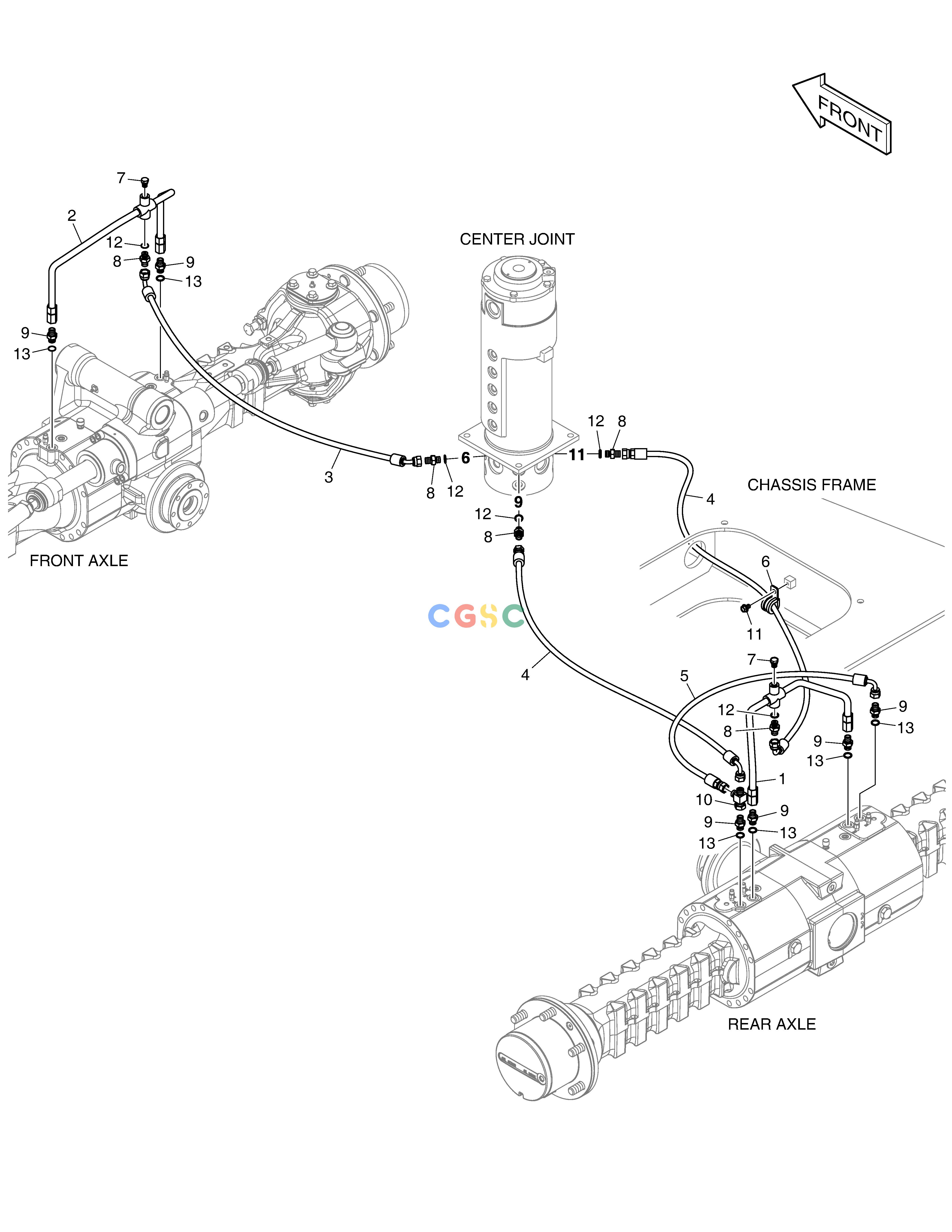

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-09739 | [-] | ||
| 1. | 420207-00919 | [1] | ||
| 10. | 181-00673D1 | [1] | TEE;UNION | |
| 11. | K1001029 | [1] | BOLT | |
| 12. | S8000111 | [5] | O-RING | |
| 13. | DS2851078 | [6] | ||
| 2. | 420207-00920 | [1] | ||
| 3. | DS2090160 | [1] | ||
| 4. | DS2093183 | [2] | HOSE ASSY,HYDRAULIC | |
| 5. | DS2093374 | [1] | HOSE | |
| 6. | 124-00208D2 | [1] | CLAMP | |
| 7. | 2181-2047A | [2] | PLUG | |
| 8. | 2181-1126D14 | [5] | ADAPTER | |
| 9. | 2181-1126D128 | [6] | ADAPTER M14X1.5-PF1/4 |
