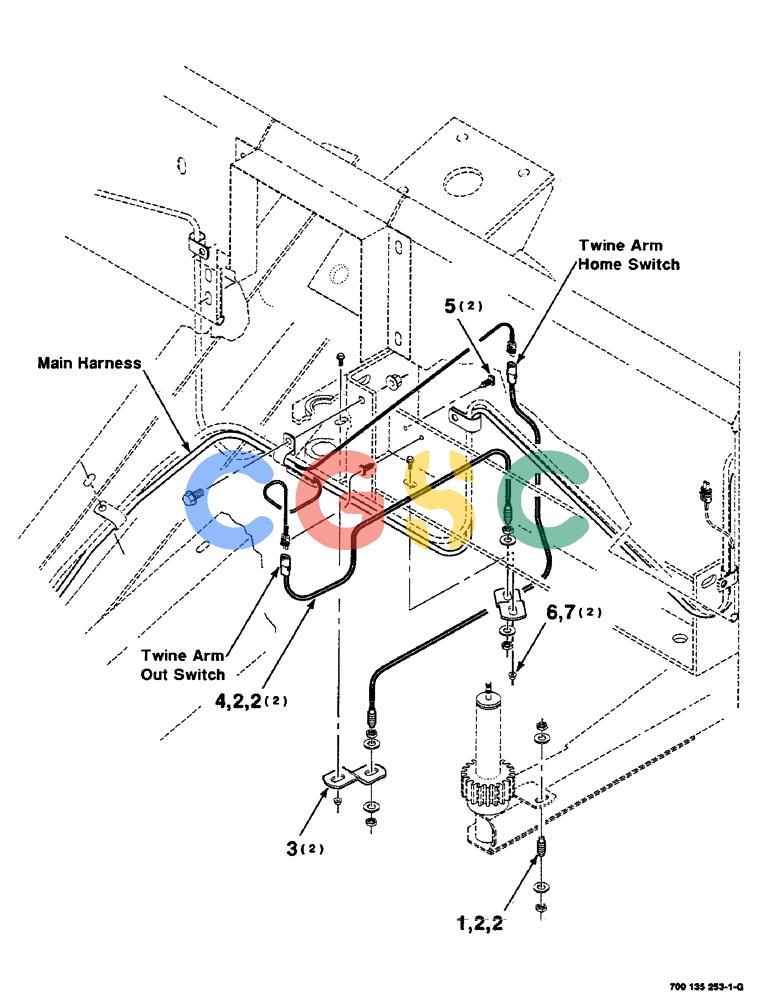

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (4-06) - ELECTRICAL ASSEMBLY, TWINE ARM SENSORS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700710211
|
[1] |
ACTUATOR
|
IH
|
| 2. |
700710190
|
[6] |
WASHER
|
CAS
- stainless steel
|
| 3. |
700135506
|
[2] |
SUPPORT
|
HFI
- switch
|
| 4. |
700119161
|
[2] |
SWITCH
|
L
SENSOR "A"
|
| 5. |
700718506
|
[2] |
CLIP
|
CAS
- plastic, barbed
|
| 6. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 7. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
