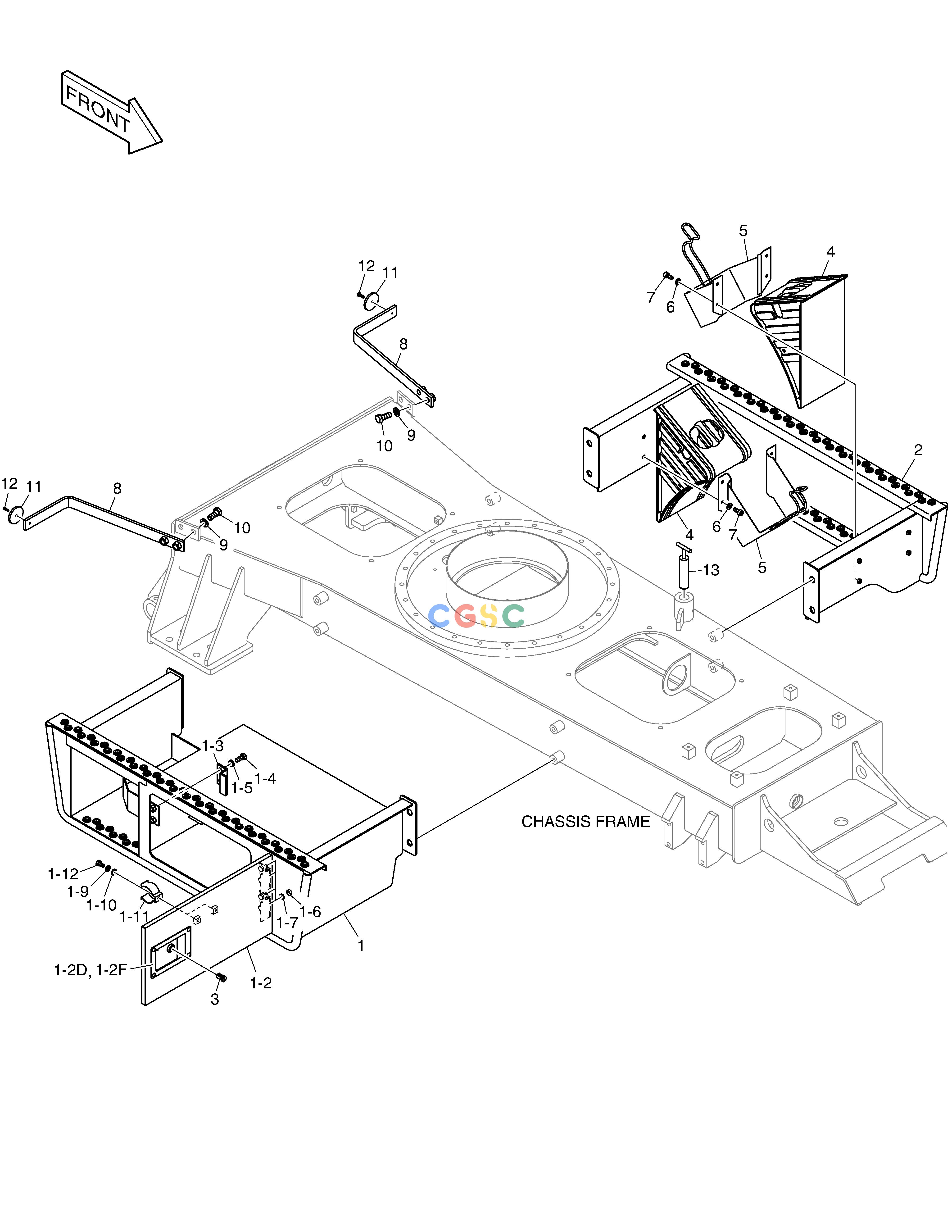

斗山零件查询CHASSIS COMPONENTS(2) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
216 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160611-00435
|
[-] |
|
|
| 1. |
110955-00294E-L
|
[1] |
|
|
| 1. |
110955-00294B-L
|
[1] |
|
110955-00294E-L
|
| 1-10. |
S5010503
|
[2] |
WASHER
|
|
| 1-11. |
120203-00571
|
[2] |
|
|
| 1-11. |
K1025597A
|
[2] |
CLAMP
|
|
| 1-12. |
S0508666
|
[2] |
BOLT
|
|
| 1-2. |
220205-00503A-L
|
[1] |
|
|
| 1-2. |
220205-00503-L
|
[1] |
|
220205-00503A-L
|
| 1-2D. |
K1033202
|
[1] |
CATCH;DOOR
|
|
| 1-2F. |
S0511866
|
[4] |
BOLT
|
|
| 1-3. |
110956-00409
|
[1] |
|
|
| 1-4. |
S0515166
|
[2] |
BOLT
|
|
| 1-5. |
S5102703
|
[2] |
WASHER
|
|
| 1-6. |
S4012633
|
[4] |
NUT
|
|
| 1-7. |
S5102603
|
[4] |
. WASHER
|
|
| 1-9. |
S5102503
|
[2] |
. WASHER
|
|
| 10. |
S0521466
|
[4] |
BOLT
|
|
| 11. |
190-00078
|
[2] |
REFLECTOR
|
|
| 12. |
S3450853
|
[2] |
SCREW
|
|
| 13. |
123-00082
|
[1] |
PIN;SWING LOCK
|
|
| 2. |
110955-00293E-L
|
[1] |
|
|
| 2. |
110955-00293C-L
|
[1] |
|
110955-00293E-L
|
| 3. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 4. |
K1046074
|
[2] |
|
|
| 5. |
K1046075
|
[2] |
|
|
| 6. |
S5102503
|
[8] |
. WASHER
|
|
| 7. |
S2208766
|
[8] |
BOLT;SOCKET
|
|
| 8. |
250107-00469-L
|
[2] |
|
|
| 9. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
