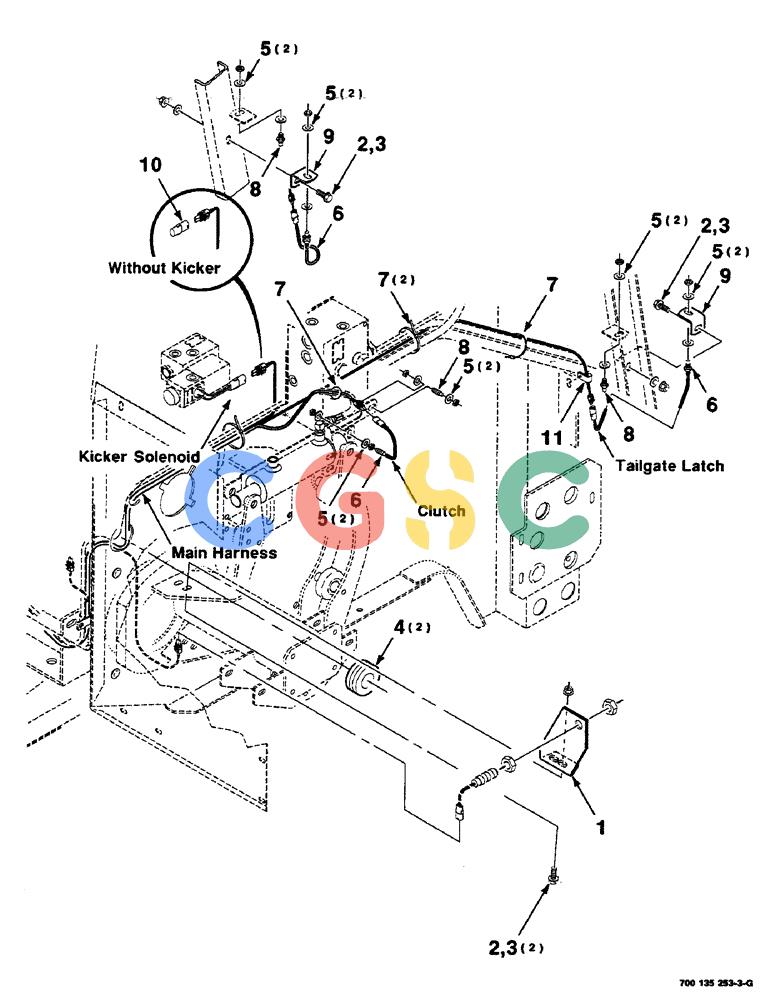

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (4-10) - ELECTRICAL ASSEMBLY, CLUTCH AND TAILGATE LATCH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700151465
|
[1] |
SUPPORT
|
HFI
- sensor
|
| 2. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 3. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
8027427
|
[2] |
GROMMET
|
CAS
|
| 5. |
700710190
|
[12] |
WASHER
|
CAS
- stainless steel
|
| 6. |
700119161
|
[3] |
SWITCH
|
L
SENSOR "A"
|
| 7. |
L18337
|
[4] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 8. |
700710211
|
[3] |
ACTUATOR
|
IH
|
| 9. |
700132393
|
[2] |
ANGLE
|
HFI
|
| 10. |
225127C1
|
[1] |
PLUG
|
CAS
- 2 way Superseded by part number: 87686742
|
| 11. |
515-2395
|
[1] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
