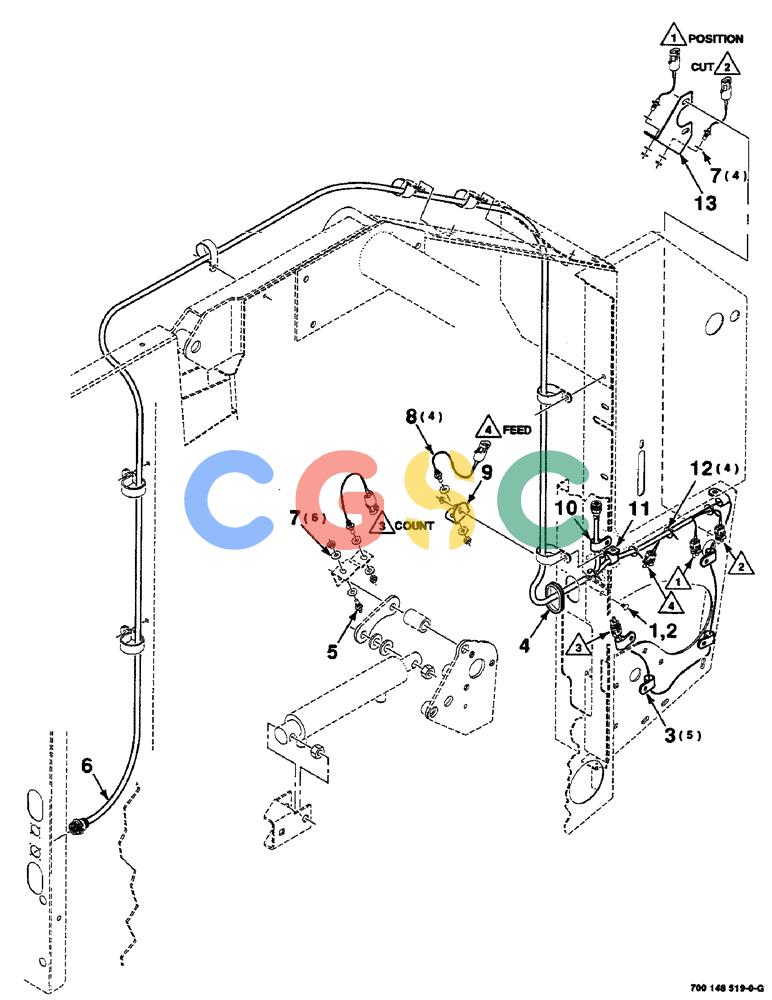

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (4-20) - ELECTRICAL ASSEMBLY, MESH WRAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
434-612
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 X 3/4 RHSSNB Superseded by part number: 86508748
|
| 2. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
515-2395
|
[5] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 4. |
8027427
|
[1] |
GROMMET
|
CAS
|
| 5. |
700710211
|
[1] |
ACTUATOR
|
IH
|
| 6. |
700717415
|
[1] |
HARNESS
|
CAS
- wire, mesh wrap
|
| 7. |
496-11041
|
[10] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 8. |
700119161
|
[4] |
SWITCH
|
L
- assembly
|
| 9. |
700148803
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - switch
|
| 10. |
515-23190
|
[1] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86624005
|
| 11. |
755777
|
[1] |
CLAMP
|
CAS
Superseded by part number: CAS755777, CAS755777, CUR755777
|
| 12. |
306132C1
|
[4] |
CABLE TIE,14.5" L
|
IH
TIE - clamp 14 in Superseded by part number: 435437A1
|
| 13. |
700148802
|
[1] |
MOUNTING PARTS
|
HFI
MOUNTING - switch
|
