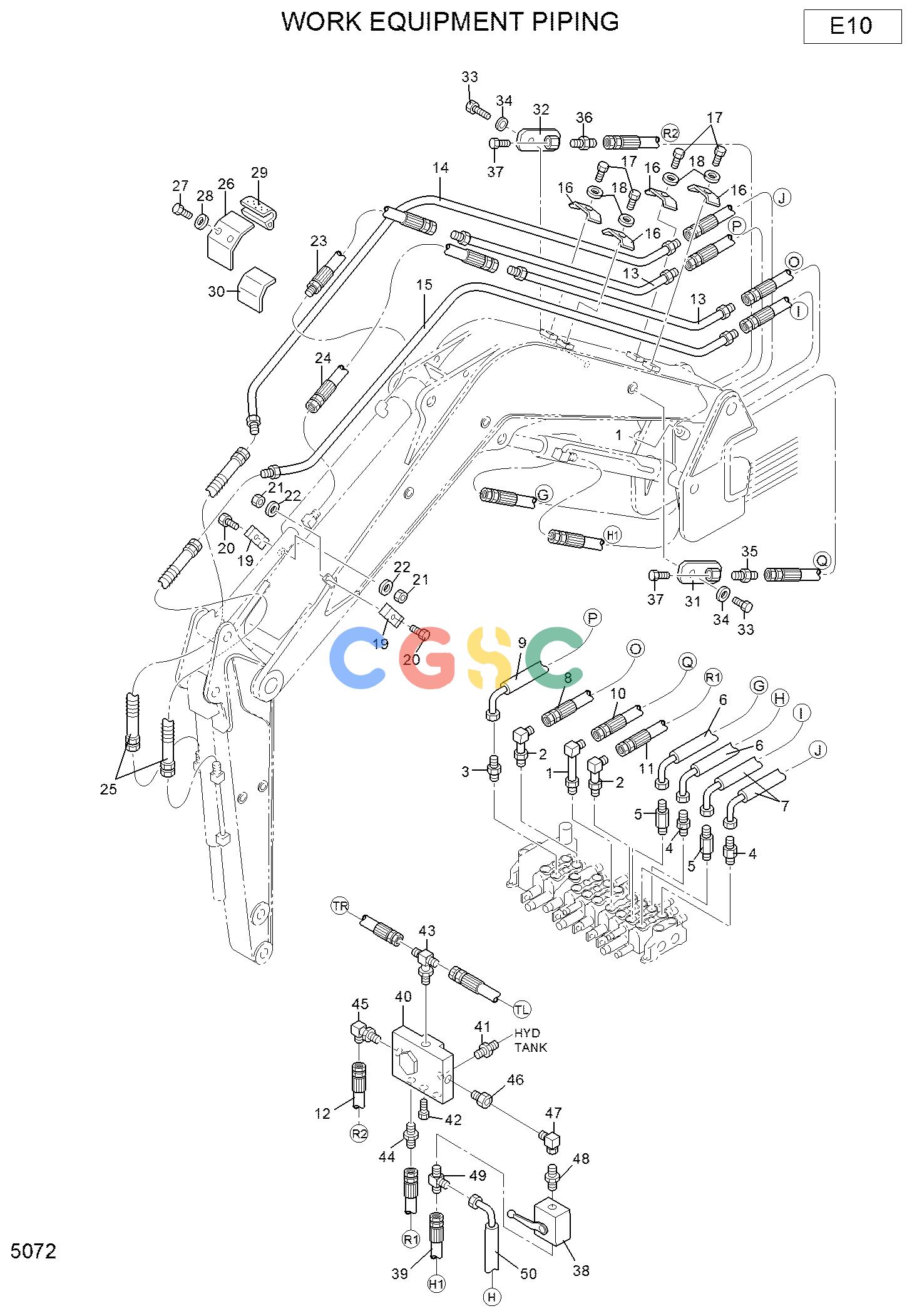

现代零件查询R16-7 WORK EQUIPMENT PIPINGEPC Hyundai _现代Hyundai_工程机械

现代零件查询R16-7 WORK EQUIPMENT PIPINGEPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 190 次

Pos.	Part No	Qty	Parts name	Comments
1.	XJDH-00472	[1]	ELBOW-MALE 90
2.	XJDH-00482	[2]	ELBOW-MALE 90
3.	XJDH-00452	[1]	CONNECTOR-MALE
4.	XJDH-00449	[2]	NIPPLE-HOSE
5.	XJDH-00448	[2]	NIPPLE-HOSE
6.	XJDH-02983	[1]	HOSE	MCV G
7.	XJDH-02984	[2]	HOSE	MCV I,J
8.	XJDH-02967	[1]	HOSE	MCV O
9.	XJDH-02985	[1]	HOSE	MCV P
10.	XJDH-02968	[1]	HOSE	MCV Q
11.	XJDH-02964	[1]	HOSE	MCV R1
12.	XJDH-02969	[1]	HOSE	SHUT OFF VLV R2
13.	XJDH-01311	[2]	PIPE
14.	XJDH-01313	[1]	PIPE
15.	XJDH-01312	[1]	PIPE
16.	XJDH-01417	[4]	CLAMP-PIPE
17.	XJDH-00039	[4]	BOLT
18.	XJDH-00257	[4]	WASHER
19.	XJDH-01416	[2]	CLAMP-PIPE
20.	XJDH-00039	[2]	BOLT
21.	XJDH-00186	[2]	NUT
22.	XJDH-00276	[2]	WASHER
23.	XJDH-01319	[1]	HOSE	ARM 1
24.	XJDH-01320	[1]	HOSE	ARM 2
25.	XJDH-02962	[2]	HOSE	BUCKET
26.	XJDH-01300	[1]	PLATE
27.	XJDH-02882	[2]	BOLT
28.	XJDH-00278	[2]	WASHER
29.	XJDH-02990	[2]	STRIP-WEATHER
30.	XJDH-01398	[1]	PLATE-RUBBER
31.	XJDH-01435	[1]	MANIFOLD-PTO (L)	LH
32.	XJDH-01436	[1]	MANIFOLD-PTO (R)	RH
33.	XJDH-00035	[2]	BOLT
34.	XJDH-00276	[2]	WASHER
35.	XJDH-00417	[1]	CONNECTOR-MALE
36.	XJDH-00419	[1]	NIPPLE-HOSE
37.	XJDH-00384	[2]	PLUG
38.	XJDH-02808	[1]	VALVE-BALL
39.	XJDH-00676	[1]	HOSE	SHUT OFF VLV H1
40.	XJDH-03054	[1]	VALVE-SHUT OFF
41.	XJDH-00395	[1]	NIPPLE-HOSE
42.	XJDH-02926	[1]	PLUG
43.	XJDH-00495	[1]	TEE
44.	XJDH-00455	[1]	NIPPLE-HOSE
45.	XJDH-00477	[1]	ELBOW-90
46.	XJDH-02936	[1]	BUSHING
47.	XJDH-00810	[1]	ELBOW 90
48.	XJDH-01246	[1]	NIPPLE-HOSE
49.	XJDH-00436	[1]	TEE
50.	XJDH-02981	[1]	HOSE	SHUT OFF VLV H
