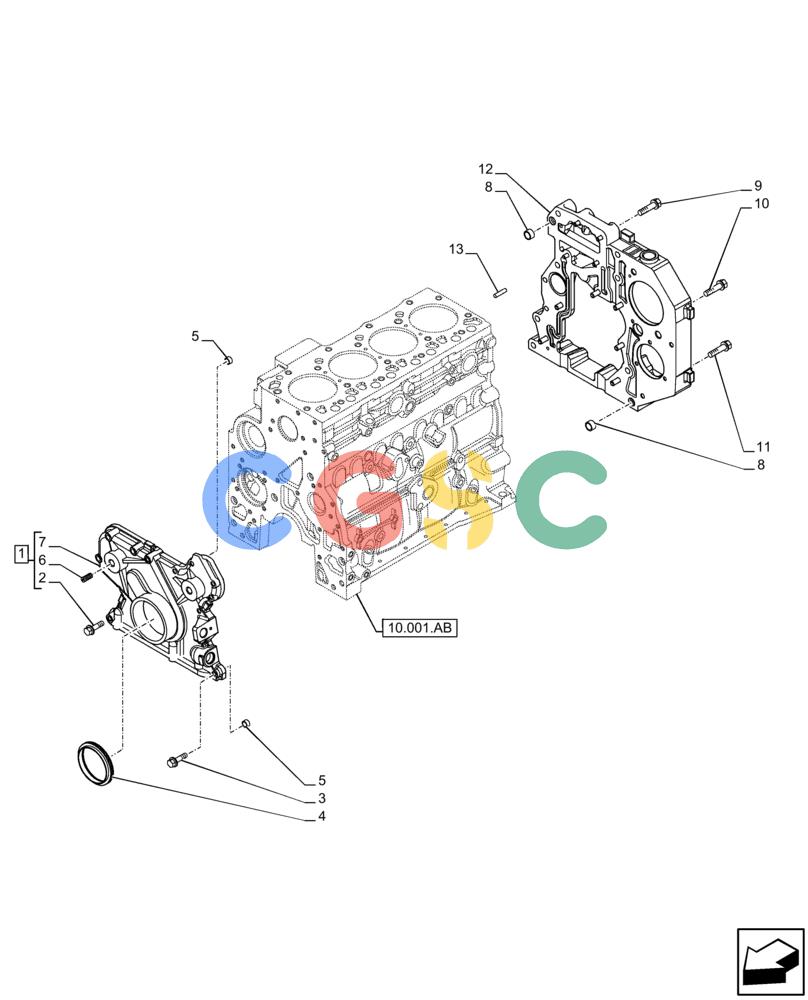

神钢零件查询(F4HFE413X B001) - ENGINE 5801910272 47446986 GRAPE HARVESTER 9050M / 9050 L T4B (10/14-12/15) (10.102.AK) - CRANKCASE, COVER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4899078 | [5] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 3. | 4899063 | [8] | SCREW,Hex Flg, M8 x 1.25 x 30 | TOR |
| 5. | 4891209 | [2] | DOWEL,M13 x 8 L | TOR |
| 6. | 2852208 | [2] | INSERT | TORM10 x 1.5 x 18 Superseded by part number: |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCover, Incl in 1 |
| 8. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 9. | 4899078 | [4] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 10. | 4899093 | [2] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS Superseded by part number: 87778358 |
| 10. | 4899073 | [1] | SCREW,Hex Flg, M12 x 1.75 x 30 | TOR |
| 11. | 4896939 | [3] | SCREW,M10 x 1.5 x 50mm | TORM10 x 1.5 x 50 |
| 13. | 4899126 | [2] | THREADED INSERT | SM Superseded by part number: 17873571 |
