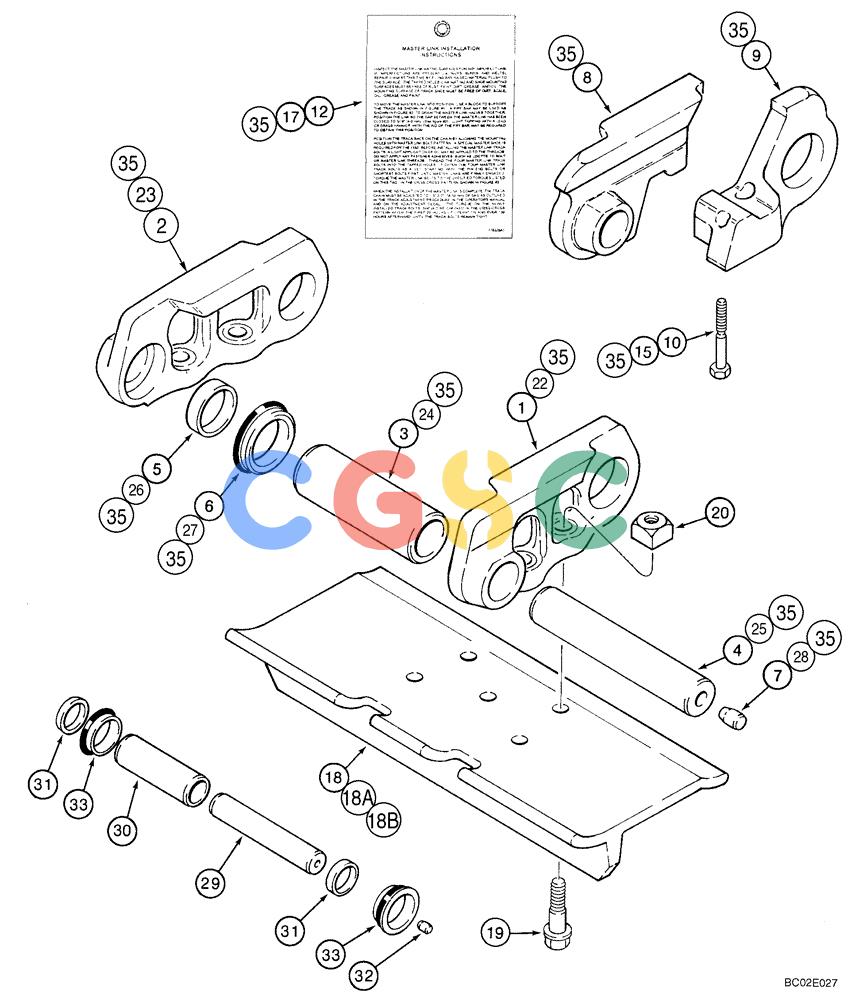

| . . | 86982078 | [2] | CRAWLER TRACK ASSY | BUR406 mm (16 inch); Chain; Incl. Shoes; Incl. 295202A2, Ref 1 - 17; 18, 19, 20 |
| . . | 86982097 | [2] | CRAWLER TRACK ASSY | BUR508 mm (20 inch); Chain; Incl. Shoes; Incl. 295202A2, Ref 1 - 17; 18A, 19, 20 |
| . . | 86982099 | [2] | CRAWLER TRACK ASSY | BUR635 mm (25 inch); Chain; Incl. Shoes; Incl. 295202A2, Ref 1 - 17; 18B, 19, 20 |
| . . | 86982075 | [1] | TRACK CHAIN | BURIncl. Ref 1 - 17 Superseded by part number: 295202A2 |
| 1. | 295178A2 | [37] | LINK | BURRight-Hand |
| 2. | 295177A2 | [37] | LINK | BURLeft-Hand |
| 3. | R56515 | [38] | BUSHING,33.8mm ID x 56.9mm OD x 109.5mm L | CAS57 mm (2-1/4 in) OD |
| 4. | R51131 | [38] | PIN,33.48mm OD x 183.5mm L | CAS |
| 5. | R51132 | [76] | SPACER | CAS |
| 6. | R50830 | [76] | OIL SEAL | CAS |
| 7. | R50441 | [38] | PLUG | CAS |
| . . | 299237A1 | [1] | KIT | CASMaster Link; Right-Hand; Incl. Ref 8 - 12 Superseded by part number: 87582712 |
| . . | NSS | [1] | NOT SERVICED SEPARATELY | CONLink Assy; Master; Right-Hand; Incl. Ref 8, 9 |
| 10. | 295325A1 | [2] | BOLT,Hex, 5/8" - 18 x 3 1/4" | CAS5/8 NF x 3-1/4 |
| 12. | 178328A3 | [1] | TAG | CASInstallation Instructions |
| . . | 299234A1 | [1] | KIT | CASMaster Link; Left-Hand; Incl. Ref 13 - 17 Superseded by part number: 87582711 |
| 18. | 295180A1 | [38] | SHOE | CAS406 mm (16 inch) |
| 18A. | 300199A1 | [38] | SHOE | CAS508 mm (20 inch) |
| 18B. | 379670A1 | [38] | TRACK SHOE | CAS635 mm (25 inch) |
| 19. | 295318A1 | [148] | BOLT,Hex, 5/8" - 18 x 2 1/8" | CAS5/8 NF x 2-1/8 |
| 20. | K134536 | [148] | NUT | CAS5/8 NF; Not Used On Master Link Bolts Superseded by part number: PK134536 |
| . . | 86982401 | [1] | KIT | BHBIncl. Ref 22 - 28, Instructions |
| . . | 302847A2 | [1] | LINK ASSY. | BURIncl. Ref 22 - 24 |
| . . | 86982395 | [1] | KIT | BURPin and Bushing Kit; Incl. Ref 29 - 34, Instructions Superseded by part number: R56515, R51132, R50441, R51131, R50830 |
| 34. | 345-140 | [1] | SEALANT | CASNo. 847, 1 Pint; For Link Pin Bores; Not Illustrated |
| 35. | 345-49 | [1] | SEALANT | CASNo 242, Apply to the Master Link Bolts on Chain Assemblies; Not Illustrated Superseded by part number: NLS |
