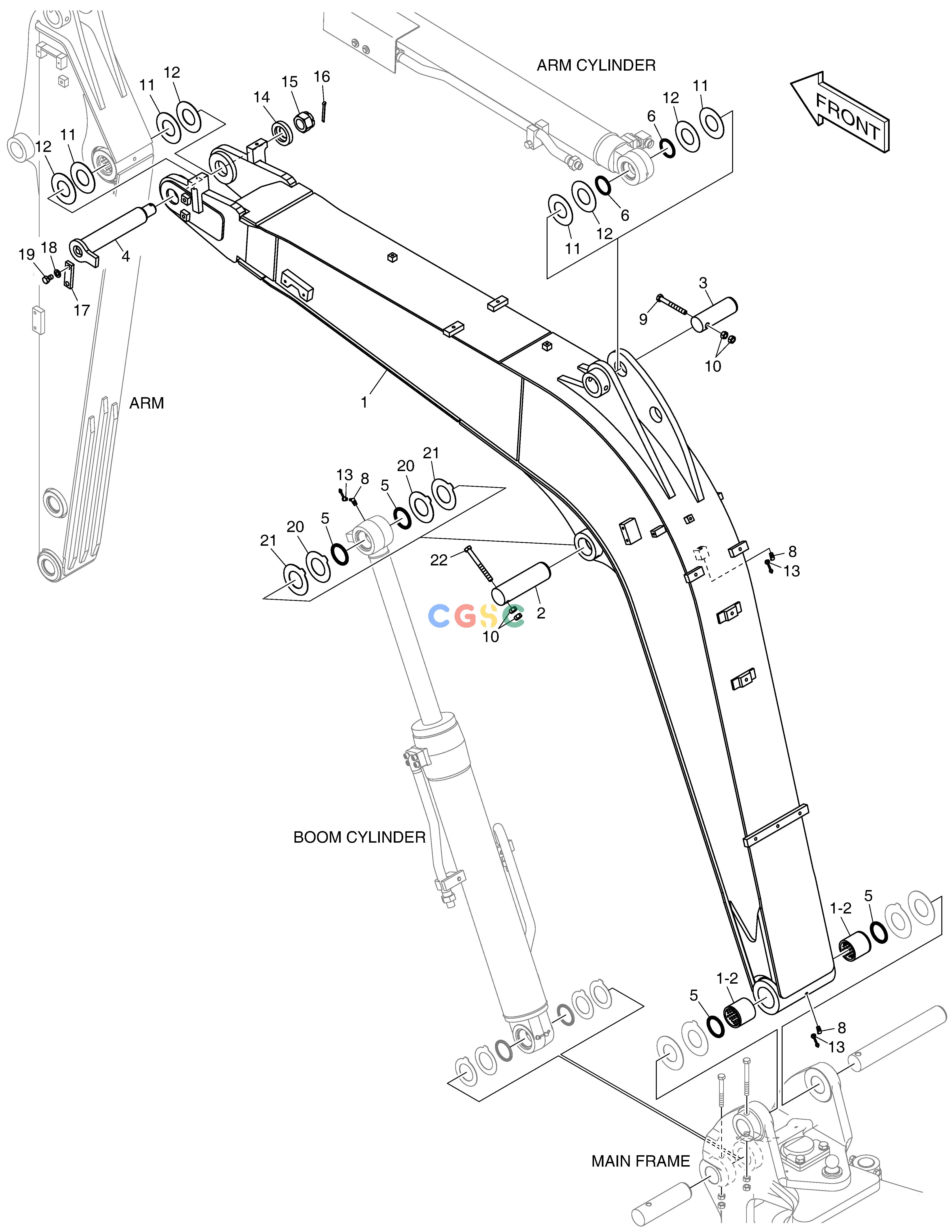

斗山零件查询BOOM - 3m E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
965 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230207-00373
|
[-] |
|
|
| 1. |
230211-00203H-H
|
[1] |
|
|
| 1-2. |
131004-00196A
|
[2] |
|
|
| 10. |
S4012733
|
[4] |
NUT
|
|
| 11. |
DS7752083
|
[4] |
SHIM
|
|
| 12. |
DS7752084
|
[4] |
SHIM
|
|
| 13. |
160-00020
|
[3] |
CAP
|
|
| 14. |
110951-00012
|
[1] |
SPACER;STOPPER
|
|
| 15. |
S4213633
|
[1] |
NUT;CASTLE M33X3.5
|
|
| 16. |
S5735931
|
[1] |
PIN;SPLIT
|
|
| 17. |
250107-00006-H
|
[1] |
|
|
| 18. |
120804-00077
|
[2] |
WASHER
|
|
| 19. |
S0514966
|
[2] |
BOLT
|
|
| 2. |
120501-02611A
|
[1] |
|
|
| 20. |
DS7752104
|
[2] |
SHIM 1.0t
|
|
| 21. |
DS7752105
|
[2] |
SHIM 1.6t
|
|
| 22. |
S0562066
|
[1] |
BOLT M12X1.75X115
|
|
| 3. |
120501-02588
|
[1] |
|
|
| 4. |
120501-02616-H
|
[1] |
|
|
| 5. |
DS5502016
|
[4] |
SEAL,DUST
|
|
| 6. |
DS5502012
|
[2] |
SEAL,DUST
|
|
| 8. |
S6710101
|
[3] |
NIPPLE;GREASE
|
|
| 9. |
S0561866
|
[1] |
BOLT
|
|
