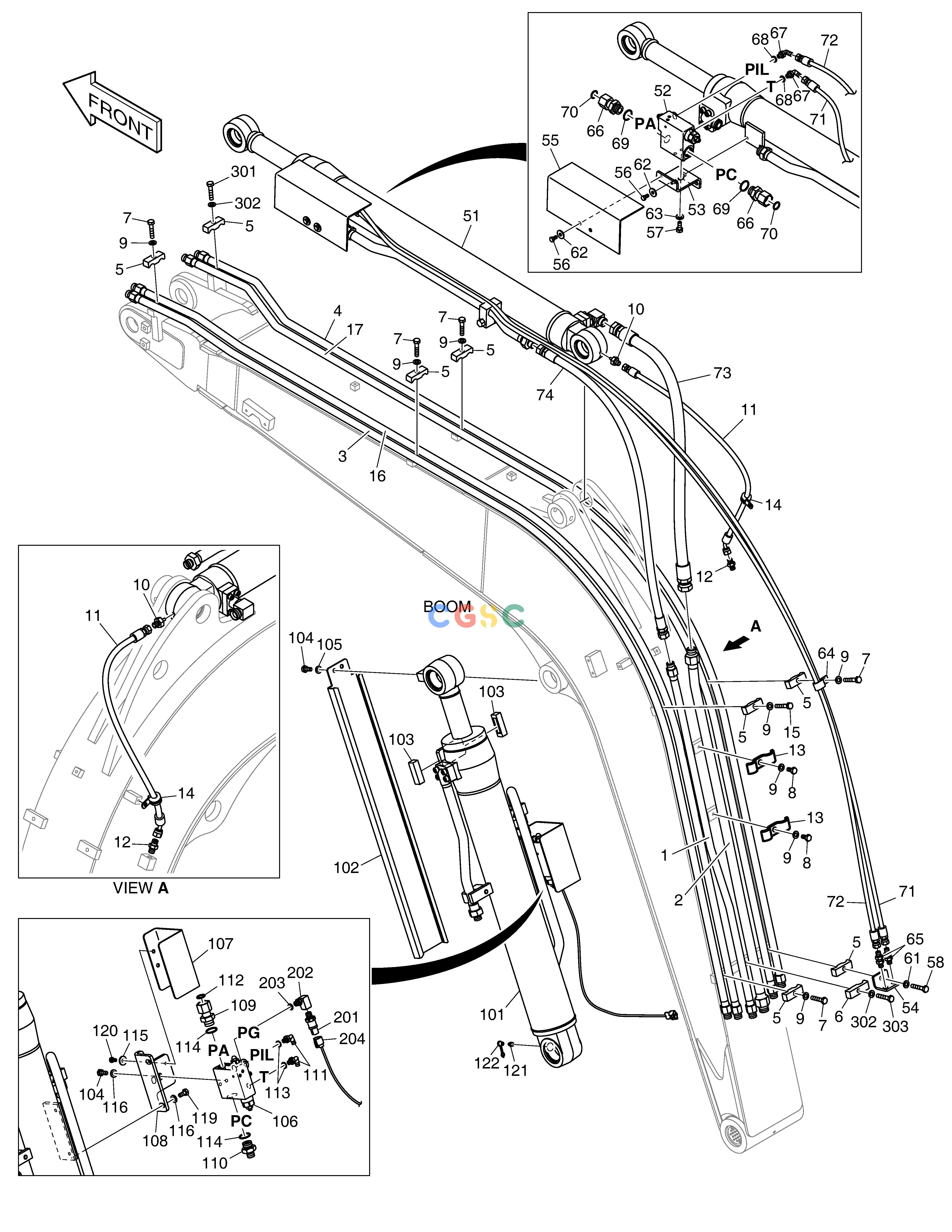

斗山零件查询BOOM PIPING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-14394
|
[-] |
|
|
| 1. |
420207-03583-H
|
[1] |
|
|
| 10. |
2181-1110D30
|
[1] |
ADAPTER
|
|
| 101. |
400309-00571G-L
|
[1] |
|
|
| 102. |
110508-14143B-L
|
[1] |
|
|
| 103. |
101555-00049B
|
[2] |
PAD
|
|
| 104. |
S0512066
|
[4] |
. BOLT
|
|
| 105. |
120804-00076
|
[2] |
WASHER
|
|
| 106. |
410114-00220A
|
[1] |
|
410114-00220B
|
| 106. |
410114-00220B
|
[1] |
|
|
| 107. |
110508-16987A-L
|
[1] |
|
|
| 108. |
110406-02855B-L
|
[1] |
|
|
| 109. |
2181-2566D4
|
[1] |
ADAPTER
|
|
| 11. |
DS2054596
|
[1] |
|
|
| 110. |
2181-1126D24
|
[1] |
ADAPTER
|
|
| 111. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 112. |
S8030121
|
[1] |
O-RING
|
|
| 113. |
S8000111
|
[2] |
O-RING
|
|
| 114. |
S8000241
|
[2] |
O-RING
|
|
| 115. |
2114-1058D29
|
[2] |
WASHER
|
|
| 116. |
2114-1058D63
|
[4] |
WASHER
|
|
| 119. |
S0511966
|
[2] |
BOLT
|
|
| 12. |
2181-1110D1
|
[1] |
ADAPTER
|
|
| 120. |
S0508666
|
[2] |
BOLT
|
|
| 121. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
| 122. |
160-00020
|
[1] |
CAP
|
|
| 13. |
120208-00136-H
|
[2] |
|
|
| 14. |
124-00208D2
|
[1] |
CLAMP
|
|
| 15. |
S0558766
|
[1] |
BOLT
|
|
| 16. |
420207-02901-H
|
[1] |
|
|
| 17. |
420207-02902-H
|
[1] |
|
|
| 2. |
420207-02695-H
|
[1] |
|
|
| 201. |
2547-9045
|
[1] |
SENSOR;PRESSURE
|
|
| 202. |
DS2308018
|
[1] |
ELBOW
|
|
| 203. |
S8000111
|
[1] |
O-RING
|
|
| 204. |
310207-02914
|
[1] |
|
|
| 3. |
420207-03323-H
|
[1] |
|
|
| 301. |
S0558566
|
[1] |
BOLT
|
|
| 302. |
120804-00070
|
[2] |
WASHER
|
|
| 303. |
S0558666
|
[1] |
BOLT
|
|
| 4. |
420207-03324-H
|
[1] |
|
|
| 5. |
K1054512-H
|
[8] |
|
|
| 51. |
400305-00389E-L
|
[1] |
|
|
| 52. |
410114-00222B
|
[1] |
|
|
| 52. |
410114-00222A
|
[1] |
|
410114-00222B
|
| 53. |
110406-02856A-L
|
[1] |
|
|
| 54. |
K1033141-H
|
[1] |
BRACKET
|
|
| 55. |
110508-16988A-L
|
[1] |
|
|
| 56. |
S0508666
|
[4] |
BOLT
|
|
| 57. |
S0512066
|
[2] |
. BOLT
|
|
| 58. |
S0558666
|
[1] |
BOLT
|
|
| 6. |
K1029510-H
|
[1] |
CLAMP
|
|
| 61. |
120804-00076
|
[1] |
WASHER
|
|
| 62. |
2114-1058D29
|
[4] |
WASHER
|
|
| 63. |
2114-1058D63
|
[2] |
WASHER
|
|
| 64. |
DS2805009
|
[1] |
CLIP
|
|
| 65. |
181-00020
|
[2] |
ADAPTER
|
|
| 66. |
2181-2566D4
|
[2] |
ADAPTER
|
|
| 67. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 68. |
S8000111
|
[2] |
O-RING
|
|
| 69. |
S8000241
|
[2] |
O-RING
|
|
| 7. |
S0558566
|
[5] |
BOLT
|
|
| 70. |
S8030121
|
[2] |
O-RING
|
|
| 71. |
DS20531242
|
[1] |
|
|
| 72. |
DS20531243
|
[1] |
|
|
| 73. |
DS20531240
|
[1] |
|
|
| 74. |
DS20531230
|
[1] |
|
|
| 8. |
S0511966
|
[2] |
BOLT
|
|
| 9. |
120804-00076
|
[8] |
WASHER
|
|
