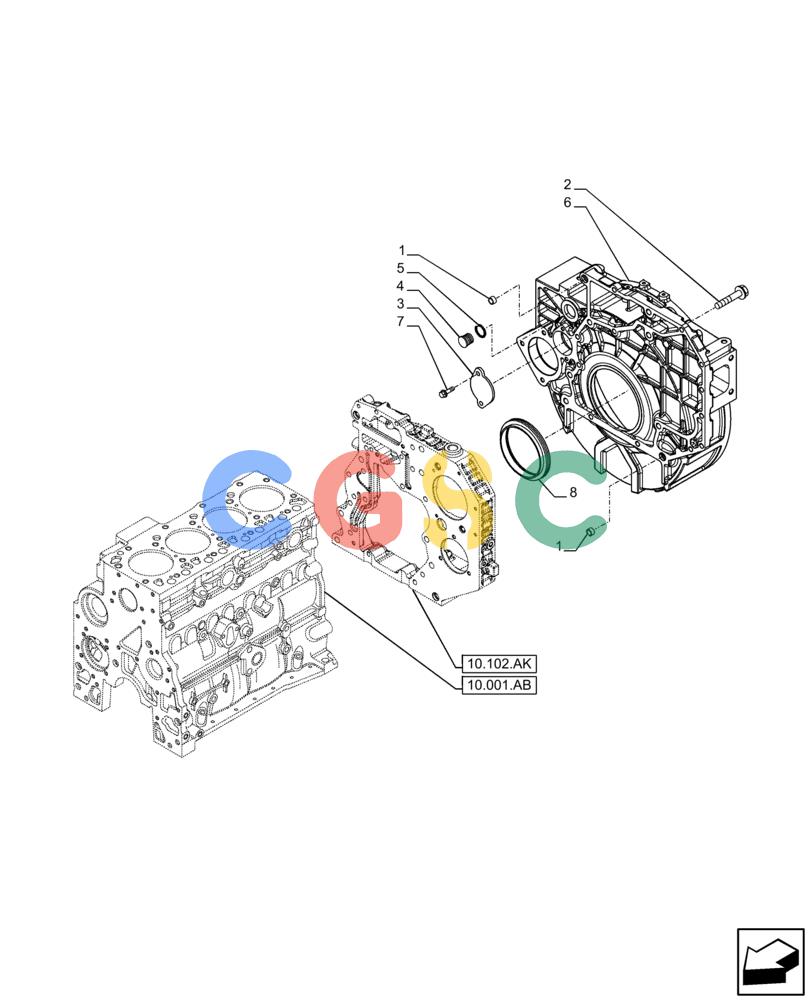

神钢零件查询(F4HFE413X B001) - ENGINE 5801910272 47446986 GRAPE HARVESTER 9050M / 9050 L T4B (10/14-12/15) (10.103.AK) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1007 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 4899109 | [2] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| 2. | 4892915 | [7] | FLANGE BOLT,Hex, M10 x 1.5 x 40mm | TOR |
| 2. | 4899076 | [6] | SCREW,Hex Flg, M12 x 1.75 x 80 | TOR |
| 2. | 2852865 | [1] | FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm | TOR Superseded by part number: 504080094 |
| 2. | 4899143 | [1] | SCREW,Hex Flg, M10 x 1.5 x 140 | TOR |
| 2. | 4897499 | [2] | SCREW,Hex, M12 x 1.75 x 110mm | SM |
| 3. | 4895155 | [1] | COVER | TOR |
| 4. | 4895378 | [1] | BUTTON PLUG,M29.2 | TOR |
| 5. | 4895379 | [1] | O-RING,21.82mm ID x 3.53mm Width | TOR Superseded by part number: 17288480 |
| 7. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
