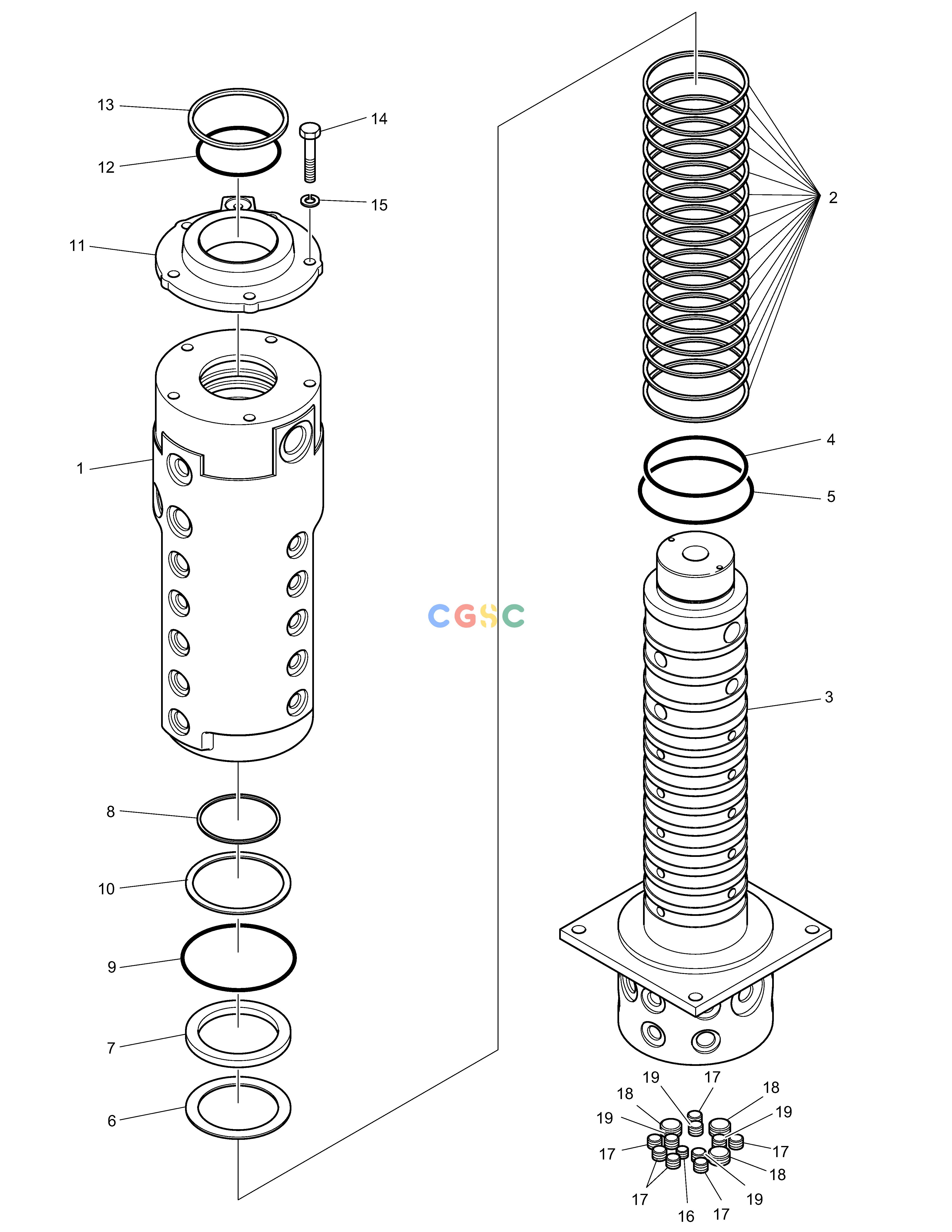

斗山零件查询CENTER JOINT E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9006398
|
[1] |
SEAL KIT
|
|
| -. |
400826-00019
|
[1] |
|
|
| 1. |
NA00546
|
[1] |
HUB
|
|
| 10. |
K9006395
|
[1] |
SHIM
|
|
| 11. |
K9006396
|
[1] |
COVER
|
|
| 12. |
S8010751
|
[1] |
O-RING
|
|
| 13. |
K9006397
|
[1] |
WIPER;DUST
|
|
| 14. |
S0556053
|
[5] |
BOLT M8X1.25X35
|
|
| 15. |
S5102503
|
[5] |
. WASHER
|
|
| 16. |
2181-1116D1
|
[6] |
PLUG
|
|
| 17. |
2181-1116D3
|
[6] |
PLUG;HEX. SOCKET
|
|
| 18. |
2181-1116D4
|
[3] |
PLUG
|
|
| 19. |
2181-1116D2
|
[4] |
PLUG
|
|
| 2. |
K9006391
|
[15] |
SEAL;ROTARY
|
|
| 3. |
K9006392
|
[1] |
SPINDLE
|
|
| 4. |
S8001001
|
[1] |
O-RING
|
|
| 5. |
S8001200
|
[1] |
O-RING
|
|
| 6. |
K9006393
|
[1] |
SHIM
|
|
| 7. |
K9006394
|
[1] |
PLATE;THRUST
|
|
| 8. |
S6500750
|
[1] |
RING;RETAINING
|
|
| 9. |
S8011251
|
[1] |
O-RING
|
|
