神钢零件查询(F4HFE413X B001) - ENGINE 5801910272 47446986 GRAPE HARVESTER 9050M / 9050 L T4B (10/14-12/15) (10.218.AF) - FUEL INJECTOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
603 次

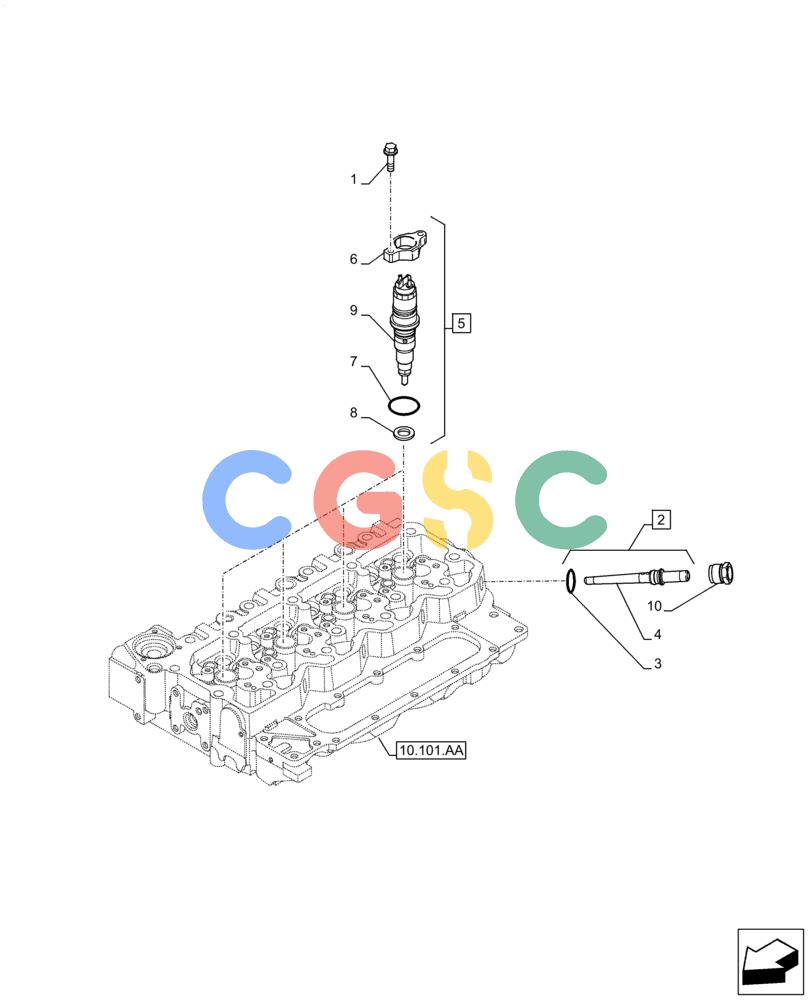

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895483 | [8] | BOLT,Flng, M6 x 1 x 35mm | TOR |
| 2. | 2854606 | [4] | FUEL TUBE,Connector Assembly | SMASSY, Incl 3, 4 Superseded by part number: 504100835 |
| 3. | 4890929 | [1] | O-RING,3mm Thk x 11mm ID | TOR |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONFitting, Incl in 2 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBracket, Incl in 5 |
| 7. | 4890929 | [1] | O-RING,3mm Thk x 11mm ID | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONSealing Washer, M7 x 1.5 x 15mm, Incl in 5 |
| 10. | 4893739 | [4] | TUBE NUT,Hex, M22 x 1.5 | TOR |
